Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS5A23166DCURIC SW SPST-NOX2 900MOHM 8VSSOP |
12,264 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 900mOhm | 40mOhm | 1.65V ~ 5.5V | - | 7.5ns, 11ns | 150MHz | 6pC | 19pF, 18pF | 20nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
TS3A5018PWRIC SWITCH SPDT X 4 10OHM 16TSSOP |
4,685 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 10Ohm | 300mOhm | 1.65V ~ 3.6V | - | 8ns, 6.5ns | 300MHz | 2pC | 4.5pF, 9pF | 100nA | -48dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TS5A23157RSERIC SWITCH SPDT X 2 10OHM 10UQFN |
8,447 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 10Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 220MHz | 7pC | 5.5pF | 1µA | -66dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
TS5A3159QDBVRQ1IC SWITCH SPDTX1 1.3OHM SOT23-6 |
17,217 |
1+：$0.42500 10+：$0.30250 25+：$0.27240 100+：$0.23905 250+：$0.22314 500+：$0.21356 1000+：$0.20578 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.3Ohm | 100mOhm | 1.65V ~ 5.5V | - | 35ns, 20ns | 100MHz | 36pC | 23pF | 6nA | -65dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-6 |
|
DG2788ADN-T1-GE4IC SW DPDTX2 500MOHM 16MINIQFN |
18,814 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 2:1 | 2 | 500mOhm | 50mOhm | 1.8V ~ 5.5V | - | 50µs, 1µs | 338MHz | -245pC | - | 100nA | -61dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|

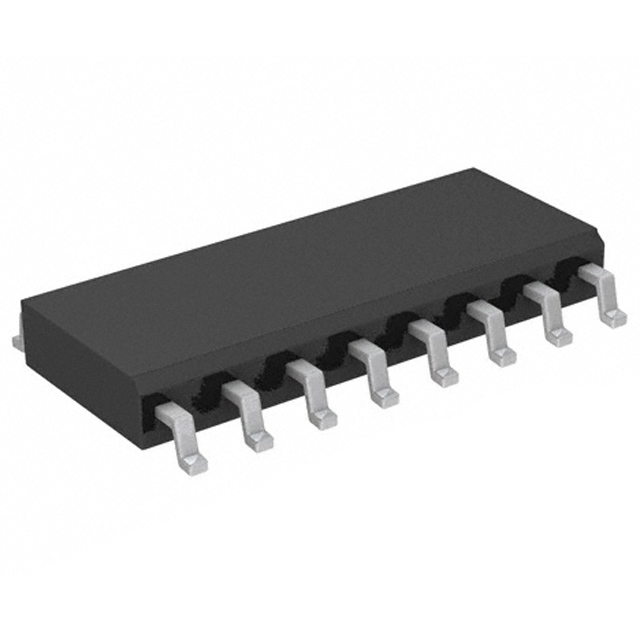

74HCT4051DIC MUX 8:1 120OHM 16SOIC |
23,490 |
2500+：$0.07182 7500+：$0.06776 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 39ns, 32ns | 180MHz | - | 3.5pF | 400nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS3A5018RGYRIC SWITCH SPDT X 4 10OHM 16VQFN |
180,267 |
491+：$0.30500 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 10Ohm | 300mOhm | 1.65V ~ 3.6V | - | 8ns, 6.5ns | 300MHz | 2pC | 4.5pF, 9pF | 100nA | -48dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-VQFN (4x3.5) |
|
CD4051BEIC MUX 8:1 240OHM 16DIP |
7,334 | - |
|
Datasheet | - | Bulk | Active | - | 8:1 | 1 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 20MHz | - | 0.2pF, 30pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
|
NX3L2267GM,115IC SWITCH SPDTX2 750MOHM 10XQFN |
20,733 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 750mOhm | 90mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 37pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
74LVC4066PW,118IC SW SPST-NOX4 10OHM 14TSSOP |
1,267 |
1+：$0.40500 10+：$0.28750 25+：$0.25860 100+：$0.22670 250+：$0.21152 500+：$0.20237 1000+：$0.19483 |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | - | 1.65V ~ 5.5V | - | 3.9ns, 5ns | 500MHz | 7.5pC | 8pF | 5µA | -56dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
TS5A3359DCURIC SWITCH SP3TX1 900MOHM 8VSSOP |
5,453 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 900mOhm | 100mOhm | 1.65V ~ 5.5V | - | 21ns, 10.5ns | 75MHz | 20pC | 18pF, 54pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|

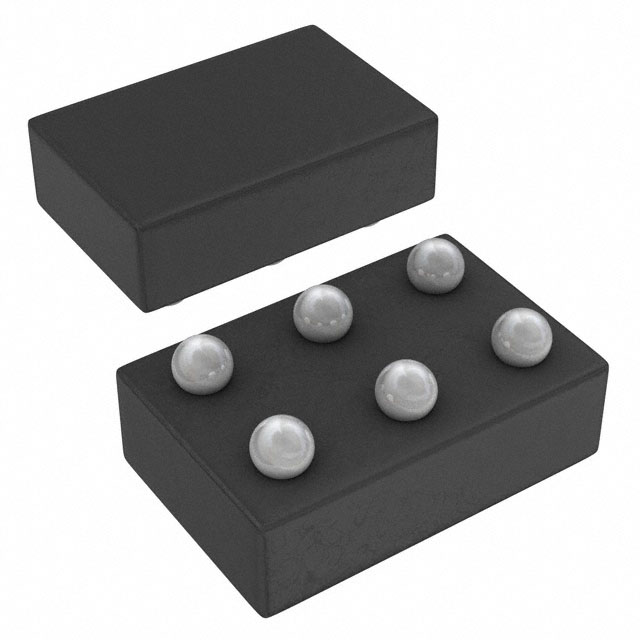

TS5A12301EYFPRIC SWITCH SPDTX1 750MOHM 6DSBGA |
26,161 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 750mOhm | 50mOhm | 2.25V ~ 5.5V | - | 225ns, 215ns | 55MHz | 97pC | 28pF | 20nA | -63dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
NX3L2T66GT,115IC SW SPST-NOX2 750MOHM 8XSON |
18,297 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 28ns, 20ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
|
TS5A3357DCURIC SWITCH SP3T X 1 15OHM 8VSSOP |
26,464 |
3000+：$0.19310 6000+：$0.18839 9000+：$0.18603 15000+：$0.18342 21000+：$0.18189 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 6.5ns, 3.7ns | 334MHz | 3.4pC | 4.5pF, 10.5pF | 100nA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
TS5A23159RSERIC SWITCH SPDTX2 900MOHM 10UQFN |
47,547 |
1+：$0.61500 10+：$0.44350 25+：$0.40140 100+：$0.35480 250+：$0.33260 500+：$0.31921 1000+：$0.31288 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 900mOhm | 50mOhm | 1.65V ~ 5.5V | - | 13ns, 8ns | 100MHz | -7pC | 18pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
SN3257QDYYRQ1IC SWITCH SPDT X 1 5OHM 16SOT23 |
0 |
1+：$0.53000 10+：$0.38300 25+：$0.34560 100+：$0.30465 250+：$0.28512 500+：$0.27336 1000+：$0.26622 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5Ohm | 70mOhm | 1.5V ~ 5.5V | - | 35µs, 95ns | 1.2GHz | 3.5pC | 4pF, 4pF | 900nA (Typ) | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOT-23-THIN |
|
|
TMUX136RSERIC SWITCH SPDT X 2 9.5OHM 10UQFN |
20,148 |
1+：$0.59000 10+：$0.42700 25+：$0.38580 100+：$0.34040 250+：$0.31876 500+：$0.30573 1000+：$0.29841 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 9.5Ohm | 100mOhm | 2.3V ~ 4.8V | - | - | 6.1GHz | - | 1.6pF, 1.6pF | 2µA | -37dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
TMUX136MRSERIC SWITCH SPDT X 2 9.5OHM 10UQFN |
0 |
1+：$0.53500 10+：$0.38700 25+：$0.34920 100+：$0.30795 250+：$0.28824 500+：$0.27637 1000+：$0.26928 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 9.5Ohm | 100mOhm | 2.3V ~ 4.8V | - | - | 6.1GHz | - | 1.6pF, 1.6pF | 2µA | -37dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
TS3A24157RSERIC SWITCH SPDTX2 600MOHM 10UQFN |
8,569 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 600mOhm | 50mOhm | 1.65V ~ 3.6V | - | 35ns, 25ns | 50MHz | 8.75pC | 50pF | 50nA | -72dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
STG719STRIC SWITCH SPDT X 1 4OHM SOT23-6 |
24,121 |
1+：$0.45000 10+：$0.32250 25+：$0.29060 100+：$0.25540 250+：$0.23858 500+：$0.22844 1000+：$0.22077 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 7ns, 4.5ns (Typ) | 200MHz | - | 19pF | 250pA | -52dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
