ELECTRONIC COMPONENTS
Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALD4213SCLIC SW SPST-NO/NCX4 135OHM 16SOIC |
2,426 | - |
|
Datasheet | - | Tube | Active | SPST - NO/NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ALD4201SCLIC SW SPST-NCX4 135OHM 16SOIC |
2,835 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 240ns, 130ns | - | 1pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ALD4212SCLIC SW SPST-NOX4 135OHM 16SOIC |
3,365 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ALD4211SCLIC SW SPST-NCX4 135OHM 16SOIC |
2,044 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ALD4202MSCLIC SW SPST-NOX4 135OHM 16SOIC |
2,309 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 240ns, 130ns | - | 1pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|

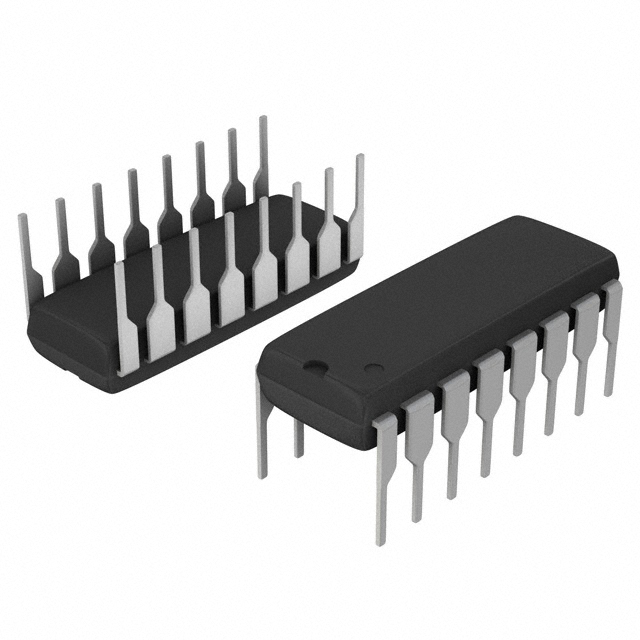

ALD4201PCLIC SWITCH SPST-NCX4 135OHM 16DIP |
2,312 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 240ns, 130ns | - | 2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
ALD4202MPCLIC SWITCH SPST-NOX4 135OHM 16DIP |
1,399 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 240ns, 130ns | - | 2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
ALD4211PCLIC SWITCH SPST-NCX4 135OHM 16DIP |
3,059 | - |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
ALD4212PCLIC SWITCH SPST-NOX4 135OHM 16DIP |
2,096 | - |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
ALD4213PCLIC SW SPST-NO/NCX4 135OHM 16DIP |
4,305 | - |
|
Datasheet | - | Tube | Active | SPST - NO/NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
