ELECTRONIC COMPONENTS
Comparators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Number of Elements | Output Type | Voltage - Supply, Single/Dual (±) | Voltage - Input Offset (Max) | Current - Input Bias (Max) | Current - Output (Typ) | Current - Quiescent (Max) | CMRR, PSRR (Typ) | Propagation Delay (Max) | Hysteresis | Operating Temperature | Grade | Qualification | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM339AN/PBIC COMPARATOR 4 GEN PUR 14DIP |
2,413 | - |
|
Datasheet | 14-DIP (0.300", 7.62mm) | - | Tube | Obsolete | General Purpose | 4 | Open-Collector | 2V ~ 36V, ±1V ~ 18V | 2mV @ 30V | 0.25µA @ 5V | 16mA @ 5V | 2.5mA | - | - | - | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
LMC6772BIN/NOPBIC COMPARATOR 2 GEN PUR 8DIP |
3,228 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | General Purpose | 2 | Open-Drain | 2.7V ~ 15V, ±1.35V ~ 7.5V | 15mV @ 5V | 0.04pA @ 5V | 30mA | 20µA | 75dB CMRR, 80dB PSRR | 10µs | - | -40°C ~ 85°C | - | - | Through Hole | 8-PDIP |
|
LM293ADGKRG4IC COMPARATOR 2 DIFF 8VSSOP |
3,348 | - |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | Open-Collector, Open-Drain, Rail-to-Rail | 2V ~ 36V, ±1V ~ 18V | 2mV @ 30V | 0.25µA @ 5V | 20mA | 2.5mA | - | - | - | -25°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
|
LM293DGKRG4IC COMPARATOR 2 DIFF 8VSSOP |
2,919 | - |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | Open-Collector, Open-Drain, Rail-to-Rail | 2V ~ 36V, ±1V ~ 18V | 5mV @ 30V | 0.25µA @ 5V | 20mA | 2.5mA | - | - | - | -25°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
TLV3701CDBVTG4IC COMPARATOR 1 GEN PUR SOT23-5 |
2,539 | - |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | CMOS, Push-Pull, Rail-to-Rail | 2.5V ~ 16V, ±1.25V ~ 8V | 5mV @ 15V | 250pA @ 15V | 10mA | 1µA | 88dB CMRR, 105dB PSRR | - | - | 0°C ~ 70°C | - | - | Surface Mount | SOT-23-5 |
|

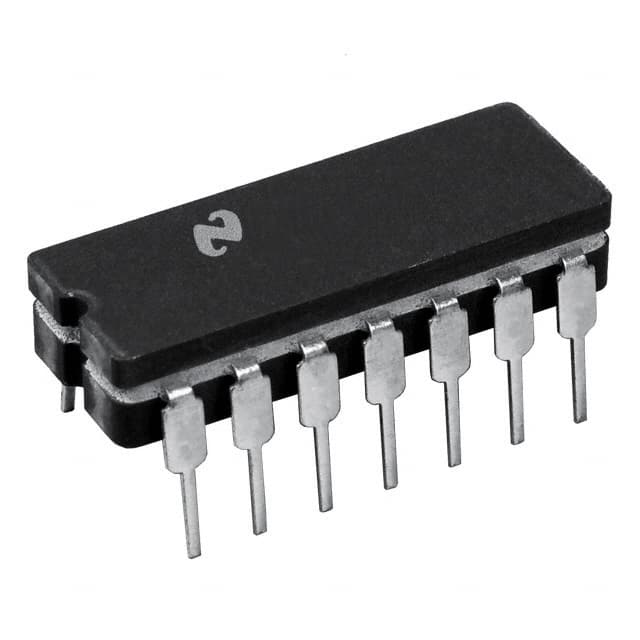

LM139JIC COMPARATOR 4 DIFF 14CDIP |
1,287 | - |
|
Datasheet | 14-CDIP (0.300", 7.62mm) | - | Tube | Active | General Purpose | 4 | Open-Collector, Open-Drain | 2V ~ 30V, ±1V ~ 15V | 5mV @ 1.4V | 0.1µA @ 1.4V | 20mA | 2mA | - | - | - | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
|
LM361NIC COMPARATOR 2 DIFF 14DIP |
3,069 | - |
|
Datasheet | 14-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Differential | 2 | Complementary, TTL | ±5V ~ 15V | 5mV @ 5V | 10µA @ 5V | - | 5mA, 10mA, 20mA | - | 20ns | - | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
|
LMC6772BINIC COMPARATOR 2 GEN PUR 8DIP |
2,565 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | General Purpose | 2 | Open-Drain | 2.7V ~ 15V, ±1.35V ~ 7.5V | 15mV @ 5V | 0.04pA @ 5V | 30mA | 20µA | 75dB CMRR, 80dB PSRR | 10µs | - | -40°C ~ 85°C | - | - | Through Hole | 8-PDIP |
|
LM2903NIC COMPARATOR 2 GEN PUR 8DIP |
3,785 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | General Purpose | 2 | Open-Collector, Rail-to-Rail | 2V ~ 36V, ±1V ~ 18V | 7mV @ 30V | 0.25µA @ 5V | 16mA @ 5V | 2.5mA | - | 700ns | - | -40°C ~ 85°C | - | - | Through Hole | 8-PDIP |
|
LM311NIC COMPARATOR 1 GEN PUR 8DIP |
2,233 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | General Purpose | 1 | DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL | 5V ~ 36V, ±2.5V ~ 18V | 7.5mV @ ±15V | 0.25µA @ ±15V | 50mA | 7.5mA | - | - | - | 0°C ~ 70°C | - | - | Through Hole | 8-PDIP |
