ELECTRONIC COMPONENTS
Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74HCT00DB,118IC GATE NAND 4CH 2-INP 14SSOP |
1,035 | - |
|
Datasheet | 74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 40 µA | 4mA, 4mA | 0.8V | 2V | 12ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
74HCT00PW,112IC GATE NAND 4CH 2-INP 14TSSOP |
2,369 | - |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 40 µA | 4mA, 4mA | 0.8V | 2V | 12ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT02D,652IC GATE NOR 4CH 2-INP 14SO |
3,742 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74HCT02PW,112IC GATE NOR 4CH 2-INP 14TSSOP |
2,602 | - |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74HCT03D,652IC GATE NAND 4CH 2-INP 14SO |
4,783 | - |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Drain | 4.5V ~ 5.5V | 2 µA | -, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74HCT03DB,118IC GATE NAND 4CH 2-INP 14SSOP |
3,113 | - |
|
Datasheet | 74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | Open Drain | 4.5V ~ 5.5V | 2 µA | -, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
74HCT04DB,118IC INVERTER 6CH 1-INP 14SSOP |
4,214 | - |
|
Datasheet | 74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
|
74HCT04PW,112IC INVERTER 6CH 1-INP 14TSSOP |
2,734 | - |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

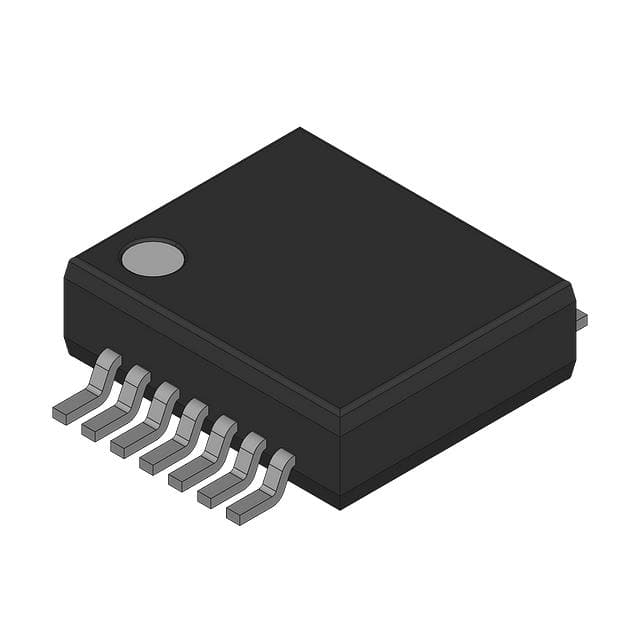

74HCT08DB,118IC GATE AND 4CH 2-INP 14SSOP |
4,027 | - |
|
Datasheet | 74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
|
74HCT08PW,112IC GATE AND 4CH 2-INP 14TSSOP |
2,935 | - |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
