Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NC7ST04M5XIC INVERTER 1CH 1-INP SOT23-5 |
99,082 | - |
|
Datasheet | 7ST | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 4.5V ~ 5.5V | 1 µA | 2mA, 2mA | 0.8V | 2V | 26ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NC7SZ05M5XIC INVERTER 1CH 1-INP SOT23-5 |
82,373 | - |
|
Datasheet | 7SZ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Open Drain | 1.65V ~ 5.5V | 2 µA | -, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NC7SZ14M5XIC INVERTER 1CH 1-INP SOT23-5 |
35,713 | - |
|
Datasheet | 7SZ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | 0.2V ~ 1.2V | 1.4V ~ 3.6V | 5.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NC7SZ86M5XIC GATE XOR 1CH 2-INP SOT23-5 |
25,939 | - |
|
Datasheet | 7SZ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 5.4ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NC7S14M5XIC INVERTER 1CH 1-INP SOT23-5 |
19,692 | - |
|
Datasheet | 7S | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.3V ~ 1.5V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

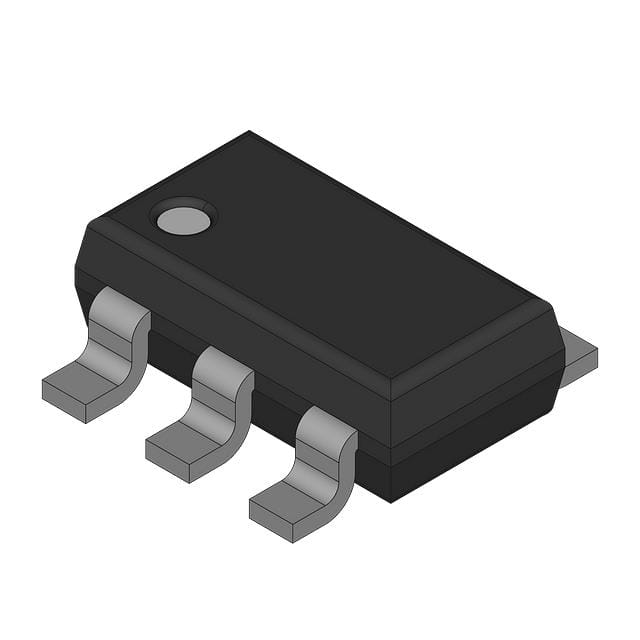

NL17SZ08DBVT1GIC GATE AND 1CH 2-INP SC74A |
13,690 | - |
|
Datasheet | 17SZ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 4.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-74A |
|
|
NC7SZ04M5XIC INVERTER 1CH 1-INP SOT23-5 |
13,241 | - |
|
Datasheet | 7SZ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NC7SZ08M5XIC GATE AND 1CH 2-INP SOT23-5 |
11,789 | - |
|
Datasheet | 7SZ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NC7S32M5XIC GATE OR 1CH 2-INP SOT23-5 |
10,256 | - |
|
Datasheet | 7S | SC-74A, SOT-753 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V | 1.5V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NC7SZ00M5XIC GATE NAND 1CH 2-INP SOT23-5 |
9,539 | - |
|
Datasheet | 7SZ | SC-74A, SOT-753 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 2 µA | 32mA, 32mA | - | - | 4.3ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
