ELECTRONIC COMPONENTS
Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

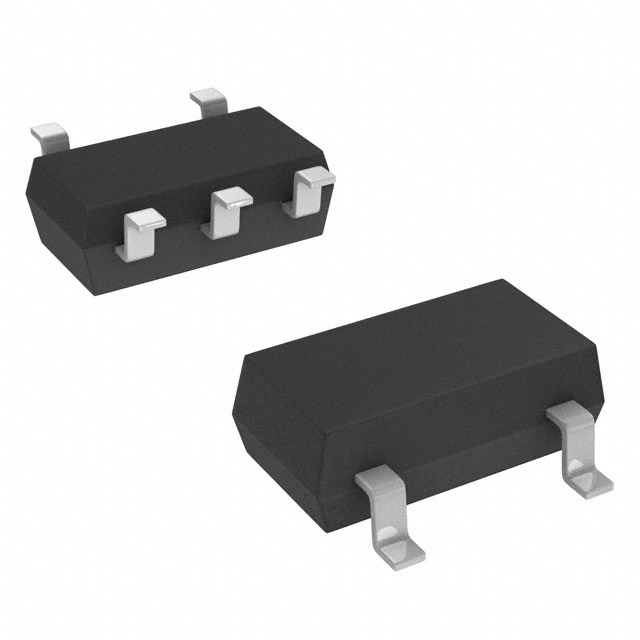

S-75L00ANC-5L1-TFGIC GATE NAND 1CH 2-INP SC88A |
2,980 | - |
|
Datasheet | S-75L | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | NAND Gate | 1 | 2 | - | 1V ~ 3.6V | 1 µA | 2.6mA, 2.6mA | 0.25V ~ 0.9V | 0.75V ~ 2.1V | 10ns @ 3V, 25pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75L02ANC-5L3-TFGIC GATE NOR 1CH 2-INP SC88A |
3,177 | - |
|
Datasheet | S-75L | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | NOR Gate | 1 | 2 | - | 1V ~ 3.6V | 1 µA | 2.6mA, 2.6mA | 0.25V ~ 0.9V | 0.75V ~ 2.1V | 10ns @ 3V, 25pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75L04ANC-5L5-TFGIC INVERTER 1CH 1-INP SC88A |
1,948 | - |
|
Datasheet | S-75L | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | Inverter | 1 | 1 | - | 1V ~ 3.6V | 1 µA | 2.6mA, 2.6mA | 0.25V ~ 0.9V | 0.75V ~ 2.1V | 10ns @ 3V, 25pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75L08ANC-5L2-TFGIC GATE AND 1CH 2-INP SC88A |
3,208 | - |
|
Datasheet | S-75L | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | AND Gate | 1 | 2 | - | 1V ~ 3.6V | 1 µA | 2.6mA, 2.6mA | 0.25V ~ 0.9V | 0.75V ~ 2.1V | 10ns @ 3V, 25pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75L14ANC-5LA-TFGIC INVERTER 1CH 1-INP SC88A |
1,197 | - |
|
Datasheet | S-75L | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | Inverter | 1 | 1 | - | 1V ~ 3.6V | 1 µA | 2.6mA, 2.6mA | 0.2V ~ 0.9V | 0.8V ~ 2.1V | 12ns @ 3V, 25pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75L32ANC-5L4-TFGIC GATE OR 1CH 2-INP SC88A |
3,362 | - |
|
Datasheet | S-75L | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | OR Gate | 1 | 2 | - | 1V ~ 3.6V | 1 µA | 2.6mA, 2.6mA | 0.25V ~ 0.9V | 0.75V ~ 2.1V | 10ns @ 3V, 25pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75L86ANC-5L8-TFGIC GATE XOR 1CH 2-INP SC88A |
4,221 | - |
|
Datasheet | S-75L | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | XOR (Exclusive OR) | 1 | 2 | - | 1V ~ 3.6V | 1 µA | 2.6mA, 2.6mA | 0.25V ~ 0.9V | 0.75V ~ 2.1V | 10ns @ 3V, 25pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75LU04ANC-5L6TFGIC INVERTER 1CH 1-INP SC88A |
2,017 | - |
|
Datasheet | S-75L | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | Inverter | 1 | 1 | - | 1V ~ 3.6V | 1 µA | 2.6mA, 2.6mA | 0.25V ~ 0.9V | 0.75V ~ 2.1V | 9ns @ 3V, 25pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75V00ANC-5V1-TFGIC GATE NAND 1CH 2-INP SC88A |
4,423 | - |
|
Datasheet | S-75V | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | NAND Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V | 1.5V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75V02ANC-5V3-TFGIC GATE NOR 1CH 2-INP SC88A |
3,063 | - |
|
Datasheet | S-75V | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | NOR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V | 1.5V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
