Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BU4069UBIC INVERTER 6CH 1-INP 14DIP |
4,854 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 16V | 4 µA | 3mA, 3mA | 1V ~ 2.5V | 4V ~ 12.5V | 40ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-DIP |
|
BU4069UBF-E2IC INVERTER 6CH 1-INP 14SOP |
4,195 | - |
|
Datasheet | 4000B | 14-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 3V ~ 16V | 4 µA | 3mA, 3mA | 1V ~ 2.5V | 4V ~ 12.5V | 40ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
BU4070BIC GATE XOR 4CH 2-INP 14DIP |
1,412 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 3V ~ 16V | 4 µA | 1.2mA, 3mA | 1.5V ~ 4V | 3.5V ~ 11V | 40ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-DIP |
|
|
BU4081BIC GATE AND 4CH 2-INP 14DIP |
1,476 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND Gate | 4 | 2 | - | 3V ~ 16V | 4 µA | 1.2mA, 3mA | 1.5V ~ 4V | 3.5V ~ 11V | 50ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-DIP |
|
|
BU4093BIC GATE NAND 4CH 2-INP 14DIP |
2,146 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 3V ~ 16V | 4 µA | 3mA, 3mA | 1.5V ~ 4V | 3.5V ~ 11V | 40ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-DIP |
|
|
BU4584BIC INVERT SCHMITT 6CH 1INP 14DIP |
1,302 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 16V | 4 µA | 3mA, 3mA | 1.5V ~ 4V | 3.5V ~ 11V | 50ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-DIP |
|

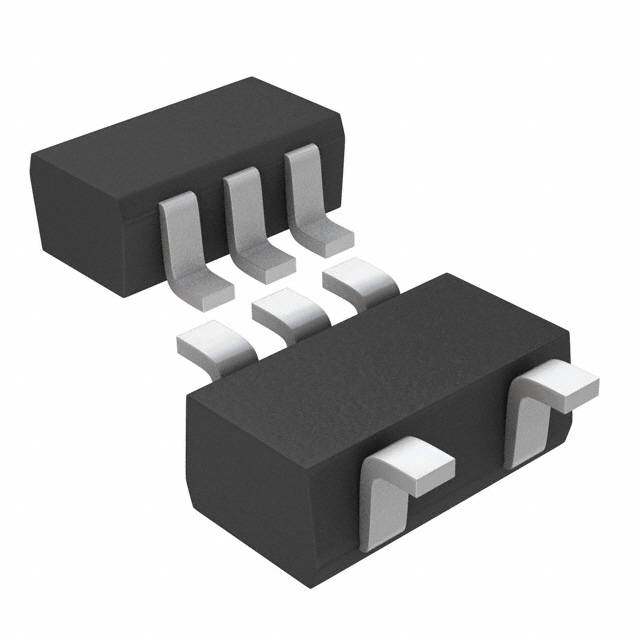

BU4S71-TRIC GATE OR 1CH 2-INP SMP5 |
1,040 | - |
|
Datasheet | 4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | OR Gate | 1 | 2 | - | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 2.75V ~ 8.25V | 30ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BU4SU69-TRIC INVERTER 1CH 1-INP SMP5 |
3,389 | - |
|
Datasheet | 4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1V ~ 3V | 4V ~ 12V | 25ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BU4S584-TRIC INVERT SCHMITT 1CH 1-INP SMP5 |
4,825 | - |
|
Datasheet | 4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | Schmitt Trigger | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 50ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
|
|
BU4S81-TRIC GATE AND 1CH 2-INP SMP5 |
4,960 | - |
|
Datasheet | 4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 2 | - | 3V ~ 16V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 2.75V ~ 8.25V | 30ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMP5 |
