Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74ACT10MTCXIC GATE NAND 3CH 3-INP 14TSSOP |
4,563 | - |
|
Datasheet | 74ACT | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | NAND Gate | 3 | 3 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|

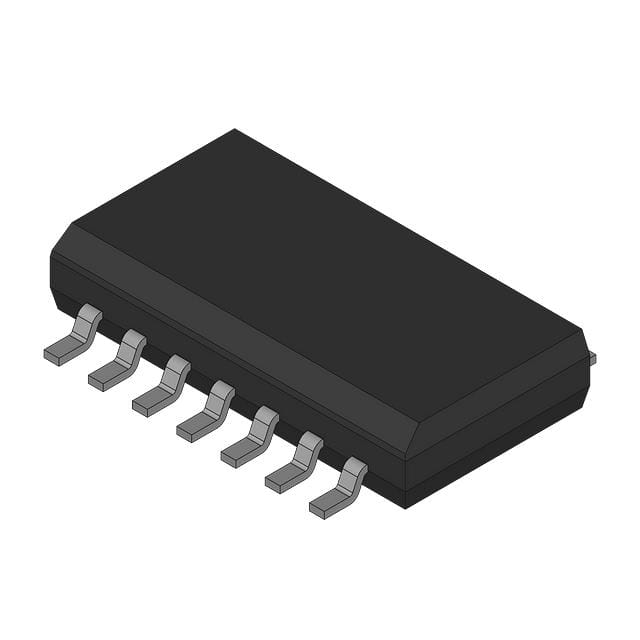

74VHCT04SJXIC INVERTER 6CH 1-INP 14SOP |
4,000 | - |
|
Datasheet | 74VHCT | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
DM74S08NIC GATE AND 4CH 2-INP 14DIP |
3,800 | - |
|
Datasheet | 74S | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 1mA, 20mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
DM74ALS21AMXIC GATE AND 2CH 4-INP 14SOIC |
3,614 | - |
|
Datasheet | 74ALS | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | AND Gate | 2 | 4 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 15ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74S04NIC INVERTER 6CH 1-INP 14DIP |
3,500 | - |
|
Datasheet | 74S | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.75V ~ 5.25V | - | 1mA, 20mA | 0.8V | 2V | 8ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
74LCX27MTCXIC GATE NOR 3CH 3-INP 14TSSOP |
2,480 | - |
|
Datasheet | 74LCX | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | NOR Gate | 3 | 3 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.9ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74LCX27MXIC GATE NOR 3CH 3-INP 14SOIC |
67,500 | - |
|
Datasheet | 74LCX | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | NOR Gate | 3 | 3 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.9ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
DM74LS26MXIC GATE NAND 4CH 2-INP 14SOIC |
47,514 | - |
|
Datasheet | 74LS | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | NAND Gate | 4 | 2 | Open Collector | 4.75V ~ 5.25V | 4.4 mA | 1mA, 8mA | 0.8V | 2V | 45ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
74VCX86MIC GATE XOR 4CH 2-INP 14SOIC |
35,393 | - |
|
Datasheet | 74VCX | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 1.2V ~ 3.6V | 20 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 3ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74LCX27MIC GATE NOR 3CH 3-INP 14SOIC |
32,020 | - |
|
Datasheet | 74LCX | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.9ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
