ELECTRONIC COMPONENTS
Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC7WH08FK,LJ(CTIC GATE AND 2CH 2-INP 8SSOP |
27,033 | - |
|
Datasheet | TC7WH | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
|
TC7S00FU,LFIC GATE NAND 1CH 2-INP 5SSOP |
11,695 | - |
|
Datasheet | TC7S | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 5-SSOP |
|
74VHC02FTIC GATE NOR 4CH 2-INP 14TSSOP |
13,463 | - |
|
Datasheet | 74VHC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NOR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74VHC21FTIC GATE AND 2CH 4-INP 14TSSOPB |
23,794 | - |
|
Datasheet | 74VHC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOPB |
|

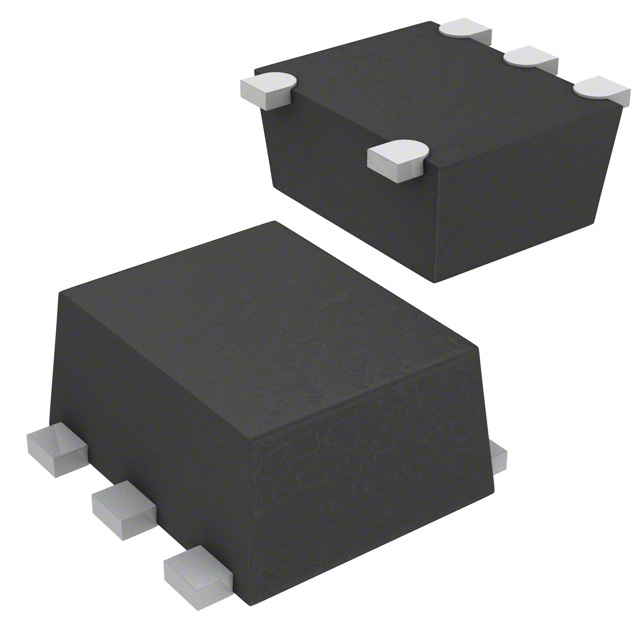

7UL1G08FS,LFIC GATE AND 1CH 2-INP FSV |
10,128 | - |
|
Datasheet | 7UL | SOT-953 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 1 µA | 8mA, 8mA | 0.1V ~ 0.4V | 0.75V ~ 2.48V | 4.4ns @ 3.6V, 30pF | -40°C ~ 85°C (TA) | - | - | Surface Mount | fSV |
|
|
74VHC132FTIC GATE NAND 4CH 2-INP 14TSSOPB |
4,346 | - |
|
Datasheet | 74VHC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.1V ~ 36V | 2V ~ 4.5V | 9.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOPB |
|
|
74VHCT04AFTIC INVERTER 6CH 1-INP 14TSSOP |
2,453 | - |
|
Datasheet | 74VHCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74LCX32FTIC GATE OR 4CH 2-INP 14TSSOPB |
1,927 | - |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 1.65V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOPB |
|
|
TC7W04FK,LFIC INVERTER 3CH 3-INP 8SSOP |
14,580 | - |
|
Datasheet | TC7W | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
|
TC7W14FU,LFIC INVERT SCHMITT 3CH 3INP 8SSOP |
9,312 | - |
|
Datasheet | TC7W | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.5V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
