ELECTRONIC COMPONENTS
Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB-159-1MAGNET 0.866"D X 1.000"THICK CYL |
2,381 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Ferrite | - | C8 | 3800G, 4100G | 0.866" Dia x 1.000" H (22.00mm x 25.40mm) | - |
|
ALC8010MAGNET 0.315"D X 0.039"THICK CYL |
3,658 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N45UH | 13400G, 13600G | 0.315" Dia x 0.039" H (8.00mm x 1.00mm) | 180°C (TA) |
|
ALC1040EMAGNET 0.394"D X 0.157"THICK CYL |
4,237 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | Epoxy | N35SH | 11700G, 12200G | 0.394" Dia x 0.157" H (10.00mm x 4.00mm) | 150°C (TA) |
|
ALC10060MAGNET 0.394"D X 0.236"THICK CYL |
4,712 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Diametric | Samarium Cobalt (SmCo5) | - | S22 | 9500G, 10000G | 0.394" Dia x 0.236" H (10.00mm x 6.00mm) | 250°C (TA) |
|

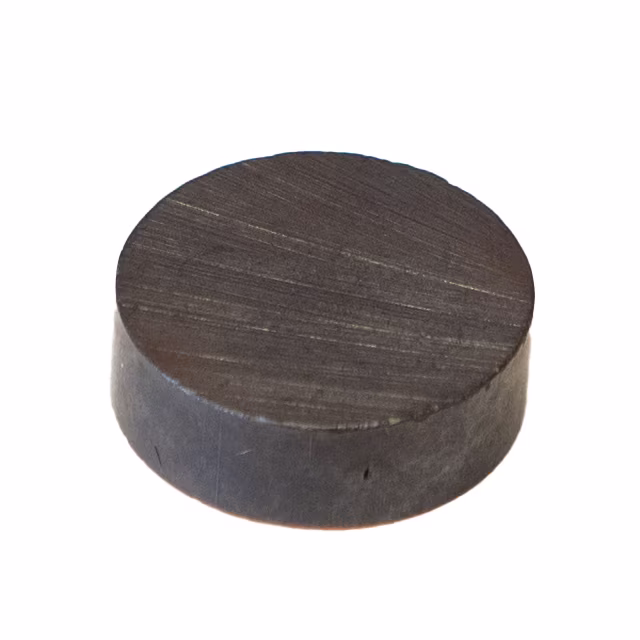

ALC1550MAGNET 0.591"D X 0.197"THICK CYL |
1,693 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Diametric | Ceramic | - | C8 | 3900G, 4100G | 0.591" Dia x 0.197" H (15.00mm x 5.00mm) | 250°C (TA) |
|
CS-0038MAGNET 0.118"LX0.118"WX0.069"H |
4,317 | - |
|
Datasheet | - | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Passivated | N44H | 13000G, 13500G | 0.118" L x 0.118" W x 0.069" H (3.00mm x 3.00mm x 1.75mm) | 140°C (TA) |
|
YB-076-1MAGNET 0.472"D X 0.118"THICK RND |
3,124 | - |
|
Datasheet | - | Bulk | Active | Round | Diametric | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N38SH | 12200G, 12700G | 0.472" Dia x 0.118" H (12.00mm x 3.00mm) | 150°C (TA) |
|
YB-155-1MAGNET 0.750"D X 0.125"THICK RND |
4,163 | - |
|
Datasheet | - | Bulk | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | 12800G, 13400G | 0.750" Dia x 0.125" H (19.05mm x 3.17mm) | - |
|
|
ALC8302MAGNET 0.315"D X 0.118"THICK CYL |
1,903 | - |
|
Datasheet | - | Bulk | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N42SH | 12900G, 13200G | 0.315" Dia x 0.118" H (8.00mm x 3.00mm) | 150°C (TA) |
|
YB-074-1MAGNET 0.246"D X 0.167"THICK RND |
2,339 | - |
|
Datasheet | - | Bulk | Active | Round | Diametric | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N38SH | 12200G, 12700G | 0.246" Dia x 0.167" H (6.25mm x 4.25mm) | 150°C (TA) |
