ELECTRONIC COMPONENTS
Photodiodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTPD2601T8-150SENSOR PHOTODIOD 800-2600NM TO39 |
2,265 | - |
|
Datasheet | 2601 InGaAs | TO-39-2 Metal Can | Bulk | Active | 800nm ~ 2600nm | - | 800nm ~ 2600nm | PIN | 1.24 A/W @ 2400nm | - | 1 V | 300µA | 1.5mm² | - | -40°C ~ 85°C | - | - | Through Hole |
|
MT03-018SENSOR PHOTODIODE 950NM TO5 |
2,802 | - |
|
Datasheet | 4 | TO-5 Variant, 2 Leads, Lens Top Metal Can | Bulk | Active | 950nm | Blue/Green | 250nm ~ 1100nm | - | 0.22 A/W @ 365nm | 100ns | 50 V | 1nA | 7.5mm² | - | -40°C ~ 100°C | - | - | Through Hole |
|
MT03-004SENSOR PHOTODIODE 940NM TO5 |
4,116 | - |
|
Datasheet | 8 | TO-5 Variant, 4 Leads, Lens Top Metal Can | Bulk | Active | 940nm | Blue/Green | 400nm ~ 1100nm | - | 0.6 A/W @ 940nm | 20ns | 50 V | 500pA | 5.7mm² | - | -40°C ~ 100°C | - | - | Through Hole |
|
MT03-001SENSOR PHOTODIODE 940NM TO5 |
4,939 | - |
|
Datasheet | 8 | TO-5 Variant, 2 Leads, Lens Top Metal Can | Bulk | Active | 940nm | Blue/Green | 400nm ~ 1100nm | - | 0.6 A/W @ 940nm | 2ns | 50 V | 1nA | 5mm² | - | -40°C ~ 100°C | - | - | Through Hole |
|
MT03-022SENSOR PHOTODIODE 950NM TO5 |
1,574 | - |
|
Datasheet | 4 | TO-5-3 Metal Can Flat Lens ISO | Bulk | Active | 950nm | Blue/Green | 250nm ~ 1100nm | - | 0.22 A/W @ 365nm | 100ns | 50 V | 1nA | 7.5mm² | - | -40°C ~ 100°C | - | - | Through Hole |
|
|
MT03-003SENSOR PHOTODIODE 940NM TO5 |
4,595 | - |
|
Datasheet | 11 | TO-5 Variant, 2 Leads, Lens Top Metal Can | Bulk | Active | 940nm | Infrared (NIR) | 400nm ~ 1100nm | - | 0.6 A/W @ 940nm | 70ns | 50 V | 1nA | 15mm² | - | -40°C ~ 100°C | - | - | Through Hole |
|
|
MTSM1346SMF1-100SENSOR PHOTODIODE 1300NM 6SMD |
4,804 | - |
|
Datasheet | 1346 InGaAs | 6-SMD, No Lead | Bulk | Active | 1300nm | - | 600nm ~ 1750nm | PIN | 0.70 A/W @ 1550nm | - | - | 2µA | 1mm² | - | -40°C ~ 85°C | - | - | Surface Mount |
|

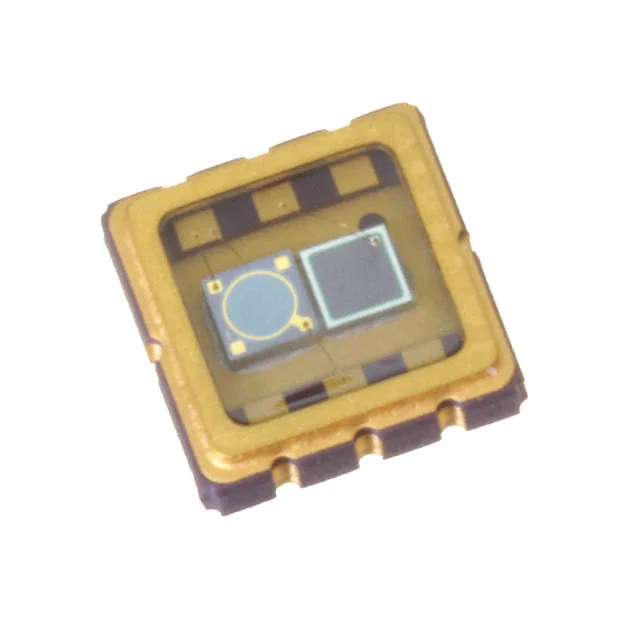

MT03-047SENSOR PHOTODIODE 950/1650NM SMD |
2,391 | - |
|
Datasheet | - | 8-SMD, No Lead | Bulk | Active | 950nm, 1650nm | - | 250nm ~ 1100nm, 600nm ~ 1750nm | - | 0.40 A/W @ 633nm, 0.7 A/W @ 1550nm | 100ns | 50 V | 100pA, 2µA (Max) | - | - | -40°C ~ 100°C | - | - | Surface Mount |
|
MTPD2600-100SENSOR PHOTODIODE 1300NM TO46-2 |
2,288 | - |
|
Datasheet | 2600 InGaAs | TO-46-2 Lens Top Metal Can | Bulk | Active | 1300nm | - | 880nm ~ 2600nm | PIN | 1.07 A/W @ 1880nm | - | 3 V | 200µA (Max) | 1mm² | - | -40°C ~ 85°C | - | - | Through Hole |
|
MTD3910D3SENSOR PHOTODIODE 940NM RADIAL |
2,722 | - |
|
Datasheet | - | Radial | Bulk | Active | 940nm | - | 400nm ~ 1060nm | - | 0.45 A/W @ 660nm | - | 20 V | 10nA (Max) | - | - | -20°C ~ 85°C | - | - | Through Hole |
