ELECTRONIC COMPONENTS
Photointerrupters - Slot Type - Transistor Output
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensing Distance | Sensing Method | Output Configuration | Current - DC Forward (If) (Max) | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Response Time | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HOA1883-012SENSOR OPT SLOT PHOTOTRANS MODUL |
1,500 | - |
|
Datasheet | - | Slotted Module | Bulk | Obsolete | 0.140" (3.56mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
HOA1888-011SENSOR OPT SLOT PHOTOTRANS MODUL |
153 | - |
|
Datasheet | - | Module, Slotted | Bulk | Obsolete | 0.472" (12mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Snap-In |
|
HOA0867-P55SENSOR OPT SLOT TRANS PCB MT |
2,837 | - |
|
Datasheet | - | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0861-P55SENSOR OPT SLOT TRANS PCB MT |
4,954 | - |
|
Datasheet | - | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
HOA1873-013SENSOR OPT SLOT DARL PCB MOUNT |
3,260 | - |
|
Datasheet | - | PCB Mount | Bulk | Obsolete | 0.100" (2.54mm) | Through-Beam | Photodarlington | 50 mA | 30 mA | 15 V | 75µs | -40°C ~ 85°C | - | - | Through Hole |
|
HOA0880-T51SENSOR OPT SLOT TRANSISTOR MODUL |
4,438 | - |
|
Datasheet | - | Module, Pre-Wired | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|
|
HOA0890-T51SENSOR OPT SLOT TRANSISTOR MODUL |
3,409 | - |
|
Datasheet | - | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|
HOA0881-T55SENSOR OPT SLOT TRANSISTOR MODUL |
2,733 | - |
|
Datasheet | - | Module, Pre-Wired | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|
|
HOA0881-L55SENSOR OPT SLOT TRANSISTOR MODUL |
2,439 | - |
|
Datasheet | - | Module, Pre-Wired | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|
|
HOA0880-L55SENSOR OPT SLOT TRANSISTOR MODUL |
2,998 | - |
|
Datasheet | - | Module, Pre-Wired | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|
EE-SX1096-W1SENSOR OPT SLOT PHOTOTRANS MODUL |
2,671 | - |
|
Datasheet | - | Module, Pre-Wired | Bulk | Discontinued at Digi-Key | 0.134" (3.4mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Chassis Mount |
|
EE-SX952P-W 1MSENSOR OPT SLOT PNP MODULE 1M |
3,277 | - |
|
Datasheet | EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX953-R 1MSENS OPT SLOT NPN MOD 1M ROBOTIC |
3,685 | - |
|
Datasheet | EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX677SENSOR OPT SLOT NPN MODULE |
3,354 | - |
|
Datasheet | EE-SX67 | Module, Pre-Wired | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | - | 40 mA | - | - | -25°C ~ 55°C (TA) | - | - | Chassis Mount |
|
EE-SX972P-C1SENSOR OPT SLOT MODULE T-SHAPE-7 |
4,164 | - |
|
Datasheet | - | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|

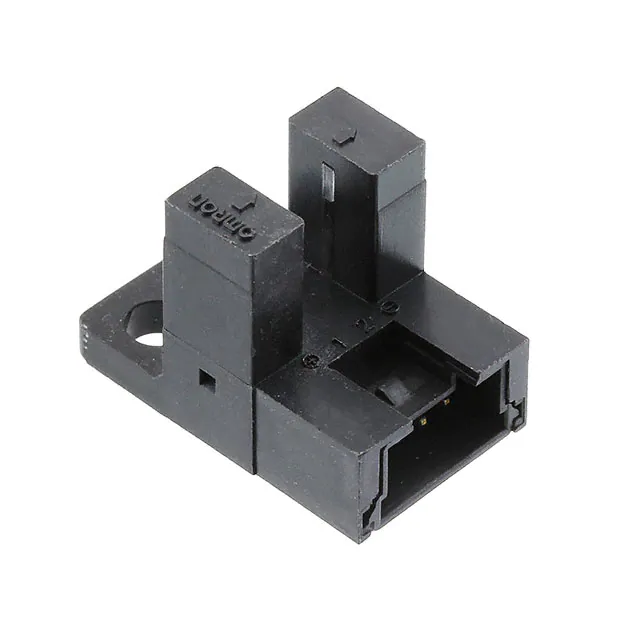

EE-SX974-C1SENSOR OPT SLOT MODULE |
4,797 | - |
|
Datasheet | - | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|

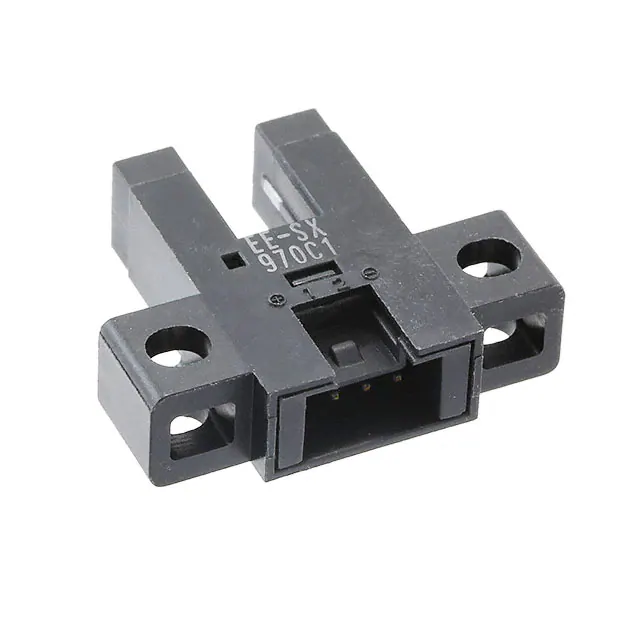

EE-SX970-C1SENSOR OPT SLOT MODULE |
4,203 | - |
|
Datasheet | - | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|
|
ITR9606-FSENSOR OPT SLOT PHOTOTRANS MODUL |
122 | - |
|
Datasheet | - | Slotted Module | Bulk | Active | 0.197" (5mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 15µs | -25°C ~ 85°C | - | - | Through Hole |
|
RPI-441C1ESENSOR OPT SLOT TRANSISTOR MODUL |
614 | - |
|
Datasheet | - | Module, PC Pins, Slot Type | Bulk | Active | 0.157" (4mm) | - | Transistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|

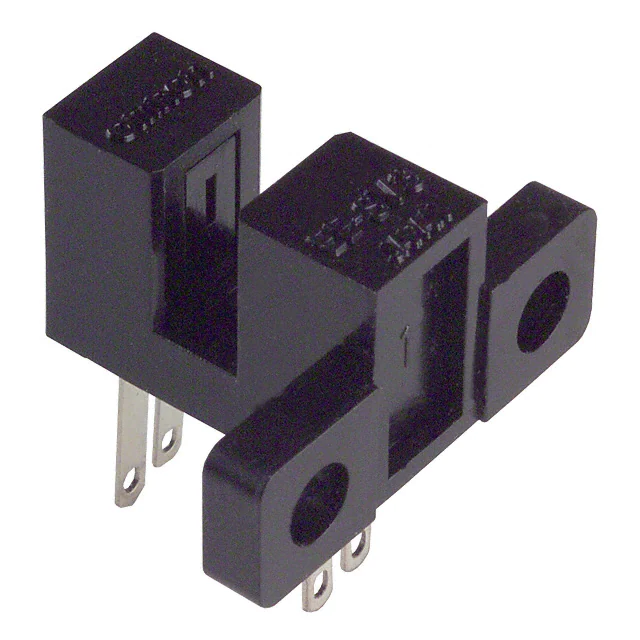

EE-SV3SENSOR OPT SLOT PHOTOTRANS MODUL |
4,102 | - |
|
Datasheet | - | Module, Connector, Slot Type | Bulk | Active | 0.134" (3.4mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Chassis Mount |
