ELECTRONIC COMPONENTS
DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG3525ANIC REG CTRLR PUSH-PULL 16DIP |
3,987 | - |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive | Push-Pull | 2 | 1 | 8V ~ 35V | 100Hz ~ 400kHz | 49% | Yes | Yes | - | Enable, Frequency Control, Soft Start | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
SG3526BDWIC REG CTRLR BUCK/FLYBACK 18SOIC |
3,614 | - |
|
Datasheet | - | 18-SOIC (0.295", 7.50mm Width) | Bulk | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 500kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|

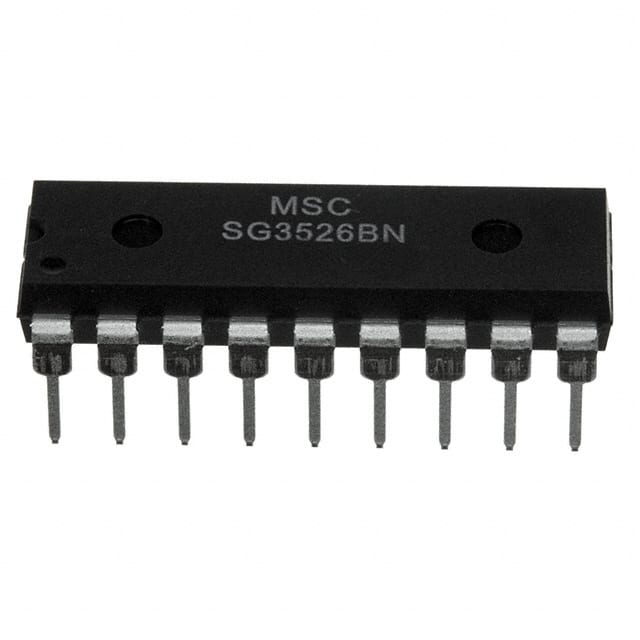

SG3526BNIC REG CTRLR BUCK/FLYBACK 18DIP |
1,108 | - |
|
Datasheet | - | 18-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 500kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Through Hole | 18-PDIP |
|

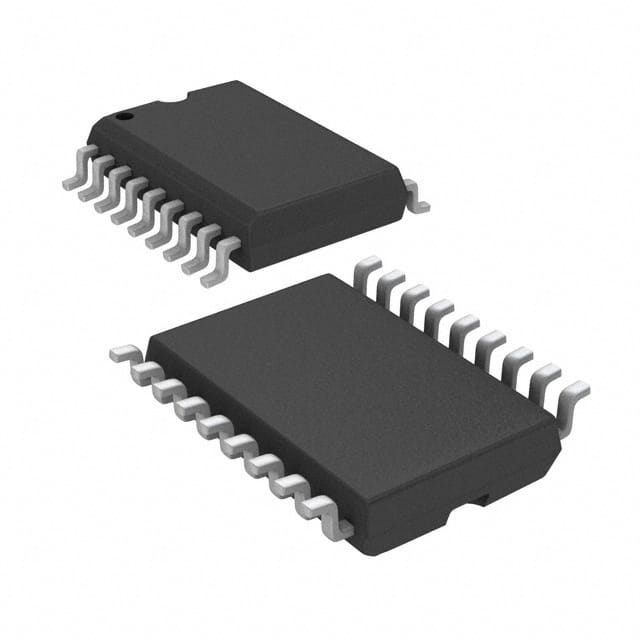

SG3526DWIC REG CTRLR BUCK/FLYBACK 18SOIC |
1,699 | - |
|
Datasheet | - | 18-SOIC (0.295", 7.50mm Width) | Bulk | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 350kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Surface Mount | 18-SOIC |
|

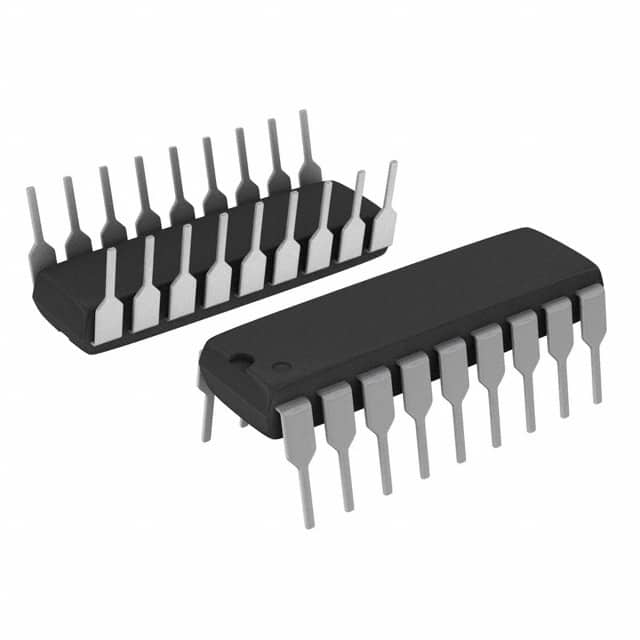

SG3526NIC REG CTRLR BUCK/FLYBACK 18DIP |
4,171 | - |
|
Datasheet | - | 18-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 8V ~ 35V | 1Hz ~ 350kHz | 49% | Yes | No | - | Dead Time Control, Enable, Frequency Control, Reset, Soft Start | 0°C ~ 70°C (TA) | - | - | Through Hole | 18-PDIP |
|
SG3845DMIC REG CTRLR FLYBACK 8SOIC |
2,760 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Flyback | 1 | 1 | 7.6V ~ 30V | 1Hz ~ 500kHz | 48% | Yes | No | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
SG3845MIC REG CTRLR FLYBACK 8DIP |
4,287 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Flyback | 1 | 1 | 7.6V ~ 30V | 1Hz ~ 500kHz | 48% | Yes | No | - | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-DIP |
|
SG3846DWIC REG CTRLR MULT TOP 16SOIC |
4,156 | - |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Bulk | Active | Transistor Driver | Step-Up, Step-Down, Step-Up/Step-Down | Positive | Buck, Boost, Push-Pull | 2 | 1 | 8V ~ 40V | 1Hz ~ 500kHz | - | Yes | Yes | - | Current Limit, Enable | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
UC2843ADMIC REG CTRLR BUCK/BOOST 8SOIC |
2,918 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Transistor Driver | Step-Up, Step-Down | Positive, Isolation Capable | Boost, Buck, Flyback, Forward | 1 | 1 | 7.6V ~ 30V | Up to 500kHz | 96% | No | No | - | Frequency Control | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
SG1825CJIC REG CTRLR BUCK/FLYBACK 16DIP |
1,038 | - |
|
Datasheet | - | - | Bulk | Active | Transistor Driver | Step-Down, Step-Up/Step-Down | Positive | Buck, Flyback | 2 | 1 | 10V ~ 30V | 4kHz ~ 1.5MHz | 85% | Yes | No | - | Current Limit, Ramp, Soft Start | -55°C ~ 125°C (TA) | Military | MIL-STD-883B | Through Hole | 16-CDIP |
