ELECTRONIC COMPONENTS
DC DC Switching Controllers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Function | Output Configuration | Topology | Number of Outputs | Output Phases | Voltage - Supply (Vcc/Vdd) | Frequency - Switching | Duty Cycle (Max) | Synchronous Rectifier | Clock Sync | Serial Interfaces | Control Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

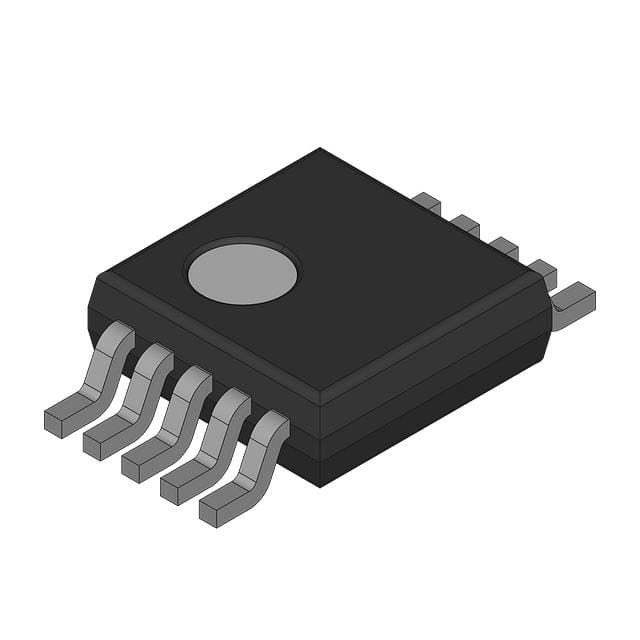

LM3743MM-1000/NOPBLM3743 HIGH-PERFORMANCE SYNCHRON |
1,652 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LM2747MTCX/NOPBLM2747 1V - 14V VOLTAGE MODE SYN |
18,464 | - |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3V ~ 6V | 50kHz ~ 1MHz | 86% | Yes | No | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-TSSOP |
|
LM3477MMX/NOPBLM3477 HIGH EFFICIENCY HIGH-SIDE |
7,000 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Transistor Driver | Step-Down | Positive | Buck, Buck-Boost | 1 | 1 | 2.97V ~ 35V | 500kHz | 93% | No | No | - | Enable | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VSSOP |
|
LM3477AMMX/NOPBLM3477 HIGH EFFICIENCY HIGH-SIDE |
3,450 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Transistor Driver | Step-Down | Positive | Buck, Buck-Boost | 1 | 1 | 2.97V ~ 35V | 500kHz | 93% | No | No | - | Enable | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-VSSOP |
|
LM2745MTCX/NOPBLM2745 1-14V, VOLTAGE MODE SYNCH |
2,500 | - |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 3V ~ 6V | 50kHz ~ 1MHz | 86% | Yes | Yes | - | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-TSSOP |
|
LM5030MMX/NOPBLM5030 100V PUSH-PULL CURRENT MO |
14,000 | - |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Bulk | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Full-Bridge, Half-Bridge, Push-Pull | 2 | 1 | 14V ~ 90V | 200kHz, 600kHz | 50% | No | No | - | Frequency Control, Soft Start | -40°C ~ 105°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
LM5041ASD/NOPBLM5041A CASCADED PWM CONTROLLER |
713 | - |
|
Datasheet | - | 16-WFDFN Exposed Pad | Bulk | Active | Transistor Driver | Step-Up/Step-Down | Positive | Half-Bridge, Push-Pull | 1 | 1 | 15V ~ 90V | 200kHz, 600kHz | - | Yes | Yes | - | Dead Time Control, Frequency Control, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-WSON (5x5) |
|
LM3495MTCX/NOPBLM3495 EMULATED PEAK CURRENT MOD |
2,175 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 2.9V ~ 18V | 200kHz ~ 1.5MHz | 96% | Yes | Yes | - | Current Limit, Frequency Control, Tracking | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP |
|
LM25088MH-2/NOPBLM25088 4.5-42V WIDE VIN, CURREN |
782 | - |
|
Datasheet | - | 16-PowerTSSOP (0.173", 4.40mm Width) | Bulk | Active | Transistor Driver | Step-Down | Positive | Buck | 1 | 1 | 4.5V ~ 42V | 50kHz ~ 1MHz | - | No | Yes | - | Enable, Frequency Control, Ramp, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-HTSSOP |
|
LM5026MT/NOPBLM5026 ACTIVE CLAMP CURRENT MODE |
4,477 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Transistor Driver | Step-Up/Step-Down | Positive, Isolation Capable | Forward Converter | 2 | 1 | 8V ~ 15V | 200kHz ~ 590kHz | 70%, 80% | No | Yes | - | Dead Time Control, Frequency Control, Reset, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP |
