ELECTRONIC COMPONENTS
Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

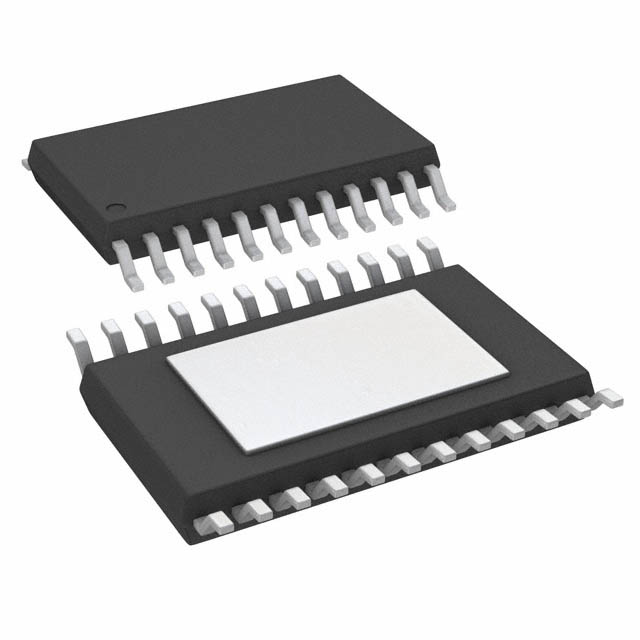

TLE94108ELXUMA1IC HALF BRIDGE DRVR 500MA 24SSOP |
1,903 | - |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (8) | AC Motors, DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 850mOhm LS, 850mOhm HS | 500mA | 2A | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit, UVLO | Surface Mount | PG-SSOP-24-4 |
|
IRSM005-800MHTRIC HALF BRIDGE DRIVER 80A 27QFN |
6,659 | - |
|
Datasheet | µIPM™ | 27-PowerVQFN | Tape & Reel (TR) | Obsolete | Half Bridge | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive, Capacitive | Power MOSFET | 2.7mOhm | 80A | - | 10V ~ 20V | 40V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 27-PQFN (7x8) |
|
|
IRSM005-800MHIC HALF BRIDGE DRIVER 80A 27QFN |
1,297 | - |
|
Datasheet | µIPM™ | 27-PowerVQFN | Tray | Obsolete | Half Bridge | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive, Capacitive | Power MOSFET | 2.7mOhm | 80A | - | 10V ~ 20V | 40V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 27-PQFN (7x8) |
|
|
TLE94112ELXUMA1IC HALF BRIDGE DRVR 500MA 24SSOP |
2,389 | - |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (12) | AC Motors, DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 850mOhm LS, 850mOhm HS | 500mA | 2A | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit, UVLO | Surface Mount | PG-SSOP-24-4 |
|
IRSM515-024PAIC HALF BRIDGE DRIVER 1.6A 23SOP |
4,147 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM515-044PAIC HALF BRIDGE DRIVER 3A 23SOP |
4,377 | - |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 800mOhm | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
IRSM515-084DA2-INFIC HALF BRIDGE DRIVER 4.6A 23DIP |
2,160 | - |
|
Datasheet | - | 23-PowerDIP Module (0.748", 19.00mm) | Bulk | Active | Half Bridge (3) | AC Motors | Logic, PWM | Inductive, Capacitive, Resistive | NMOS | 340mOhm | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM505-024DAIC HALF BRIDGE DRIVER 1.6A 23DIP |
2,812 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM505-024DA2IC HALF BRIDGE DRIVER 1.6A 23DIP |
3,931 | - |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Bulk | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 1.6A | 7A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM515-044DA-INFIC HALF BRIDGE DRIVER 3A 23DIP |
120 | - |
|
Datasheet | - | 23-DIP Module (0.573", 14.55mm) | Bulk | Active | Half Bridge (3) | AC Motors | Logic | Inductive | MOSFET (Metal Oxide) | 800mOhm LS, 800mOhm HS | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
