Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T6817-TKQIC HALF BRIDGE DRVR 600MA 20SSO |
2,909 | - |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | BCDMOS | 1.5Ohm LS (Max), 2Ohm HS (Max) | 600mA | - | 4.5V ~ 5.5V | 5.5V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Status Flag | ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | 20-SSO |
|
T6818-TUQIC HALF BRIDGE DRVR 1.5A 14SOIC |
4,925 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | BCDMOS | 500mOhm | 1.5A | - | 4.75V ~ 5.25V | 5.6V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Status Flag | ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | 14-SOIC |
|

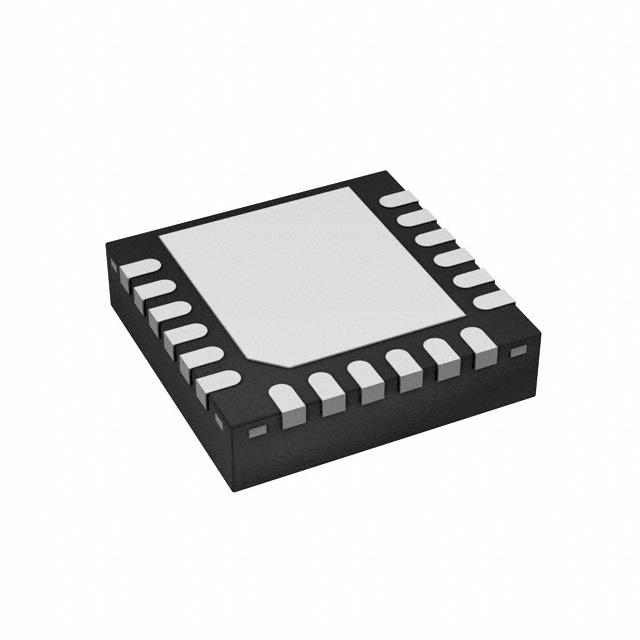

ATA6831C-PIQW-1IC HALF BRIDGE DRIVER 1A 18QFN |
2,530 | - |
|
Datasheet | - | 18-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (3) | Bulbs, DC Motors, Resistors | PWM, SPI | Inductive, Capacitive, Resistive | Power MOSFET | 800mOhm LS, 800mOhm HS | 1A | - | 4.75V ~ 5.25V | 5.6V ~ 40V | -40°C ~ 150°C (TJ) | - | - | - | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | 18-QFN (4x4) |
|
|
T6817-TKSIC HALF BRIDGE DRVR 600MA 20SSO |
3,005 | - |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | BCDMOS | 1.5Ohm LS (Max), 2Ohm HS (Max) | 600mA | - | 4.5V ~ 5.5V | 5.5V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Status Flag | ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | 20-SSO |
|
|
T6818-TUQY-66IC HALF BRIDGE DRVR 1.5A 14SOIC |
1,129 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | BCDMOS | 500mOhm | 1.5A | - | 4.75V ~ 5.25V | 5.6V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Status Flag | ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | 14-SOIC |
|
|
ATA6826-TUSYIC HALF BRIDGE DRIVER 1A 14SOIC |
1,765 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | DMOS | 1.5Ohm | 1A | 1.3A | 4.75V ~ 5.25V | 7V ~ 40V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 14-SOIC |
|
|
T6818-TUSIC HALF BRIDGE DRVR 1.5A 14SOIC |
4,933 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | BCDMOS | 500mOhm | 1.5A | - | 4.75V ~ 5.25V | 5.6V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Status Flag | ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | 14-SOIC |
|

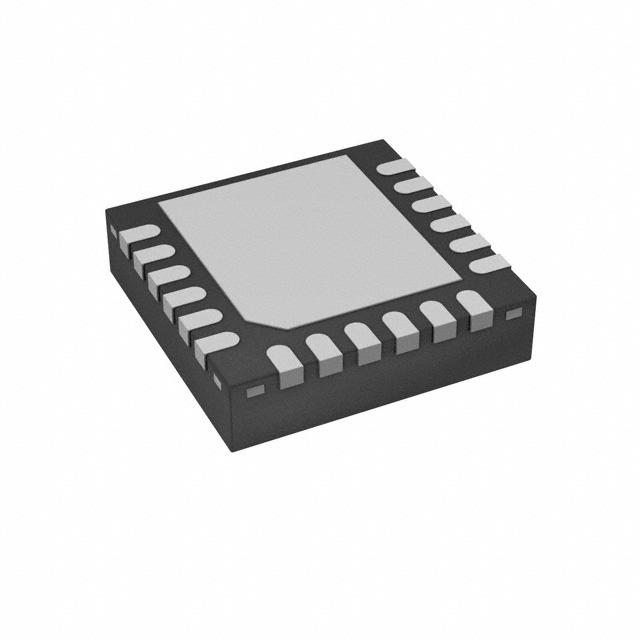

ATA6831-PISWIC HALF BRIDGE DRIVER 1A 18VQFN |
1,285 | - |
|
Datasheet | - | 18-VFQFN Exposed Pad | Tube | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | PWM, SPI | Inductive, Capacitive, Resistive | - | 1.5Ohm | 1A | 1.3A | 4.75V ~ 5.25V | 7V ~ 40V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 18-VQFN (4x4) |
|
|
ATA6831-PIPWIC HALF BRIDGE DRIVER 1A 18VQFN |
2,112 | - |
|
Datasheet | - | 18-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (3) | Bulbs, DC Motors, Resistors | PWM, SPI | Inductive, Capacitive, Resistive | - | 1.5Ohm | 1A | 1.3A | 4.75V ~ 5.25V | 7V ~ 40V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 18-VQFN (4x4) |
|
ATA6836C-PXQW-1IC HALF BRIDGE DRVR 650MA 24VQFN |
3,524 | - |
|
Datasheet | - | 24-VQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (6) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | Power MOSFET | 1Ohm LS, 1Ohm HS | 650mA | - | 4.75V ~ 5.25V | 5.5V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Open Load Detect, Over Temperature, Short Circuit, UVLO | Surface Mount | 24-VQFN (5x5) |
