Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDMF3035IC HALF BRIDGE DRIVER 50A 31PQFN |
5,946 | - |
|
Datasheet | PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 1Ohm LS, 1Ohm HS | 50A | 50A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through, UVLO | Surface Mount | 31-PQFN (5x5) |
|
FDMF6840CIC HALF BRIDGE DRIVER 50A 40PQFN |
1,464 | - |
|
Datasheet | - | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |

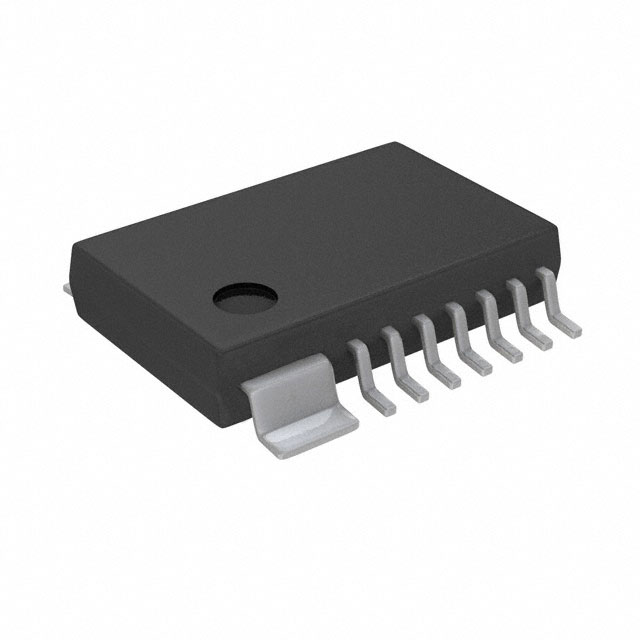

2-Heat-Tabs.jpg "LV11961HA-AH")
|
LV11961HA-AHIC HALF BRIDGE DRIVER 1A 14HSSOP |
4,122 | - |
|
Datasheet | - | 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bi-CMOS | - | 1A | - | 3.6V ~ 16V | 3.6V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Slew Rate Controlled | Over Temperature, Over Voltage, UVLO | Surface Mount | 14-HSSOP |
|
FDMF6821BIC HALF BRIDGE DRIVER 55A 40PQFN |
2,403 | - |
|
Datasheet | XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive, Capacitive, Resistive | DrMOS, Power MOSFET | 1Ohm LS, 1Ohm HS | 55A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
 36 LEADS.JPG "STK5F1U3C3D-E")
|
STK5F1U3C3D-EIC HALF BRIDGE DRIVER 15A 44DIP |
1,902 | - |
|
Datasheet | - | 44-DIP Module, 37 Leads | Tube | Obsolete | Half Bridge | AC Motors | Logic | Inductive | IGBT | - | 15A | 49A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting | Through Hole | 44-DIP |
|
LB1933M-TRM-EIC HALF BRIDGE DRIVER 1A 14MFPS |
2,026 | - |
|
Datasheet | - | 14-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 1A | - | 2.2V ~ 7.5V | 1.8V ~ 7.5V | -30°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-MFPS |
|
LB1933M-MPB-EIC HALF BRIDGE DRIVER 1A 14MFPS |
4,691 | - |
|
Datasheet | - | 14-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 1A | - | 2.2V ~ 7.5V | 1.8V ~ 7.5V | -30°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-MFPS |
|
|
FDMF6820CIC HALF BRIDGE DRIVER 50A 40PQFN |
2,064 | - |
|
Datasheet | - | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive, Capacitive, Resistive | DrMOS, Power MOSFET | 1Ohm LS, 1Ohm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|

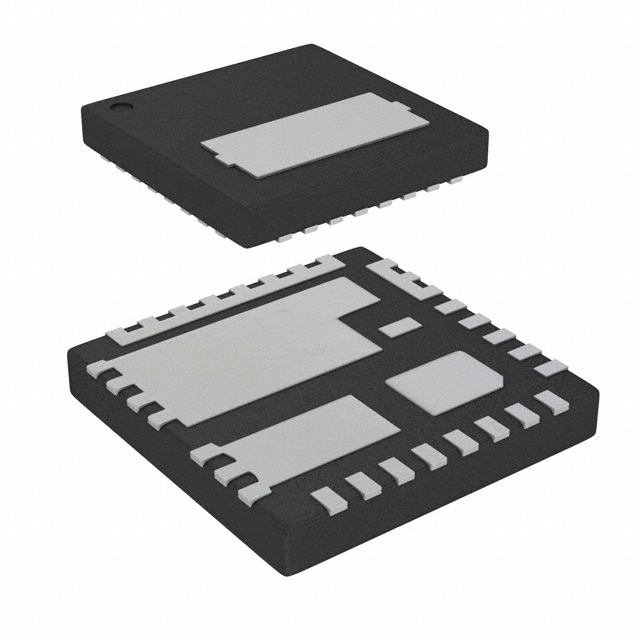

FDMF5823DCIC HALF BRIDGE DRIVER 55A 31PQFN |
2,995 | - |
|
Datasheet | PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 470mOhm LS, 680mOhm HS | 55A | - | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Latch Function, Status Flag | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
FDMF6824CIC HALF BRIDGE DRIVER 50A 40PQFN |
2,861 | - |
|
Datasheet | - | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
