Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA6581T-TE-L-EIC HALF BRIDGE DRVR 300MA 8MSOP |
4,544 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 300mA | - | 2.5V ~ 16V | 2.5V ~ 16V | -20°C ~ 90°C (TA) | - | - | - | Over Temperature | Surface Mount | 8-MSOP |
|

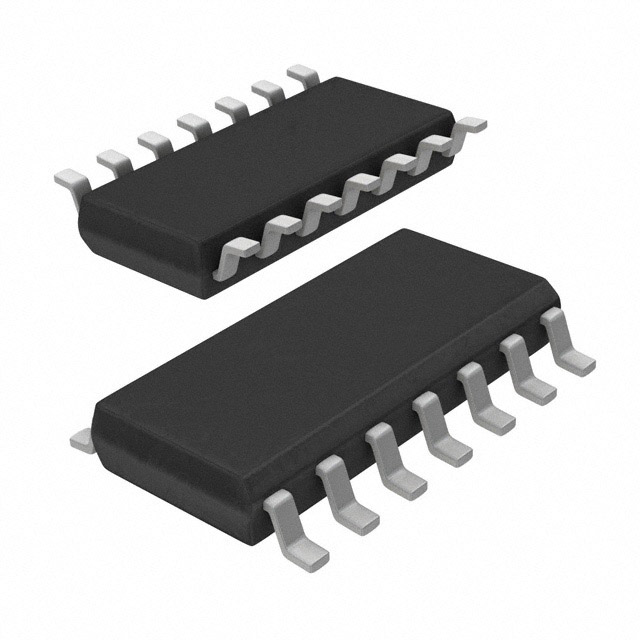

LB1868M-TLM-EIC HALF BRIDGE DRIVER 1A 14MFPS |
1,803 | - |
|
Datasheet | - | 14-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 6.4V ~ 7V | 12V, 24V | -30°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-MFPS |
|
|
LA6581T-TE-L-HIC HALF BRIDGE DRVR 300MA 8MSOP |
2,385 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 300mA | - | 2.5V ~ 16V | 2.5V ~ 16V | -20°C ~ 90°C (TA) | - | - | - | Over Temperature | Surface Mount | 8-MSOP |
|
LA6585FA-BHIC HALF BRIDGE DRVR 500MA 8MSOP |
1,515 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 500mA | - | 2.2V ~ 14V | 2.2V ~ 14V | -30°C ~ 90°C (TA) | - | - | - | Over Temperature | Surface Mount | 8-MSOP |
|
LA6581MC-BHIC HALF BRIDGE DRVR 500MA 8SOIC |
3,421 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 500mA | - | 2.2V ~ 16V | 2.2V ~ 16V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature | Surface Mount | 8-SOIC |
|
|
LA6581MC-DHIC HALF BRIDGE DRVR 500MA 8SOIC |
3,562 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 500mA | - | 2.2V ~ 16V | 2.2V ~ 16V | -30°C ~ 150°C (TJ) | - | - | - | Over Temperature | Surface Mount | 8-SOIC |
.jpg "TND323VD-TL-H")
|
TND323VD-TL-HIC HALF BRIDGE DRIVER SOT28FL |
2,545 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | 6Ohm LS, 11Ohm HS | - | 800mA, 1A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | SOT-28FL/VEC8 |
|
LV8161MUTAGIC HALF BRIDGE DRVR 700MA 10UDFN |
1,040 | - |
|
Datasheet | - | 10-UFDFN | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | 700mA | - | 2.2V ~ 6V | 2.2V ~ 6V | -30°C ~ 95°C (TA) | - | - | Auto Restart | Over Temperature | Surface Mount | 10-UDFN (2.5x2) |
|
|
TND315S-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
4,568 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 6Ohm LS, 8Ohm HS | - | 1A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
|
LA6584JA-AHIC HALF BRIDGE DRVR 1.2A 20SSOP |
2,893 | - |
|
Datasheet | - | 20-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1.2A | - | 2.8V ~ 14V | 2.8V ~ 14V | -30°C ~ 90°C (TA) | - | - | - | - | Surface Mount | 20-SSOP |
