ELECTRONIC COMPONENTS
Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

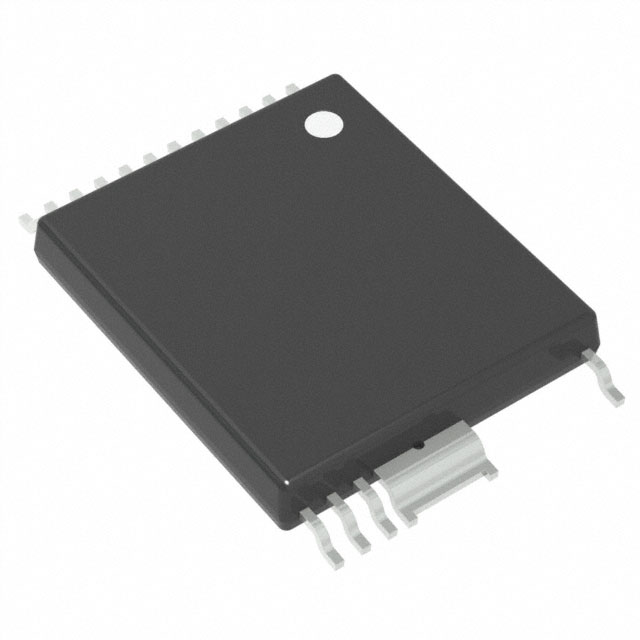

BRD1263C-TLIC HALF BRIDGE DRVR 3A INSOP24C |
1,962 | - |
|
Datasheet | BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Power MOSFET | 1.53Ohm LS, 1.53Ohm HS | 3A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Over Voltage | Surface Mount | InSOP-24C |
|
|
BRD1167C-TLIC HALF BRIDG DRV 11.5A INSOP24C |
1,825 | - |
|
Datasheet | BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | Power MOSFET | 470mOhm LS + HS | 11.5A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | InSOP-24C |
|
|
BRD1267C-TLIC HALF BRIDG DRV 11.5A INSOP24C |
1,933 | - |
|
Datasheet | BridgeSwitch | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | Power MOSFET | 470mOhm LS + HS | 11.5A | - | - | 600V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | InSOP-24C |
|
LCS700HGIC HALF BRIDGE DRIVER ESIP16J |
357 | - |
|
Datasheet | HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 1.53Ohm | - | 5.2A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16J |
|
LCS701HGIC HALF BRIDGE DRIVER ESIP16J |
530 | - |
|
Datasheet | HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 1Ohm | - | 7.7A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16J |
|
LCS705HGIC HALF BRIDGE DRIVER ESIP16J |
852 | - |
|
Datasheet | HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 400mOhm | - | 19.3A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16J |
|
LCS703HGIC HALF BRIDGE DRIVER ESIP16J |
3,888 | - |
|
Datasheet | HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 600mOhm | - | 12.9A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16J |
|
LCS705LGIC HALF BRIDGE DRIVER ESIP16K |
3,850 | - |
|
Datasheet | - | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge (2) | General Purpose | Analog, Logic | Inductive, Capacitive, Resistive | Power MOSFET | 400mOhm | - | - | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Internal Oscillator | Current Limiting, Over Current, Over Temperature, Over Voltage, UVLO | Through Hole | eSIP-16K |
|
|
LCS700LGIC HALF BRIDGE DRIVER ESIP16K |
295 | - |
|
Datasheet | HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 1.53Ohm | - | 5.2A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16K |
|
|
LCS701LGIC HALF BRIDGE DRIVER ESIP16K |
299 | - |
|
Datasheet | HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 1Ohm | - | 7.7A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16K |
