Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD7996EFV-E2IC BRIDGE DRIVER PAR 54HTSSOP |
4,113 | - |
|
Datasheet | - | 54-VSSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | - | - | Logic | - | - | - | 1.2A | - | 4.3V ~ 14V | - | -20°C ~ 75°C (TA) | - | - | - | - | Surface Mount | 54-HTSSOP-B |
|
BA5937AFP-E2IC HALF BRIDGE DRIVER 28HSOP |
2,477 | - |
|
Datasheet | - | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (8) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | - | - | 4.3V ~ 13.2V | 4.3V ~ 13.2V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|
BA5955FP-E2IC HALF BRIDGE DRIVER 1A 25HSOP |
1,183 | - |
|
Datasheet | - | 25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 4.5V ~ 11V | 6.1V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 25-HSOP |
|

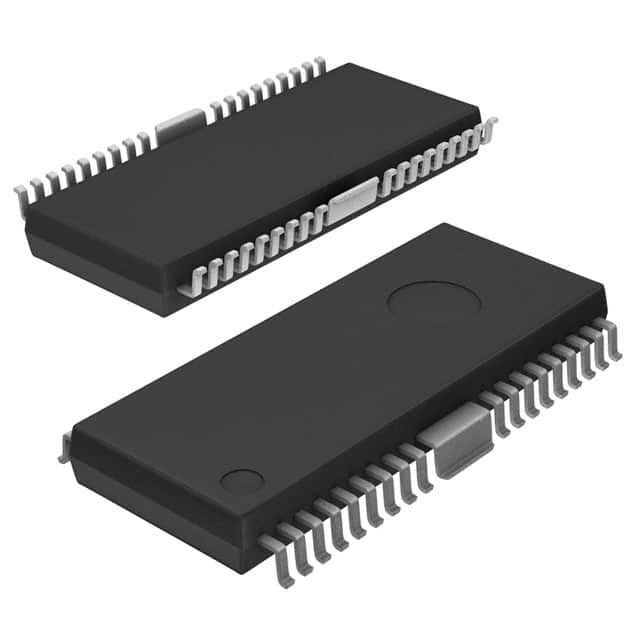

BA5956FM-E2IC HALF BRIDGE DRIVER 36HSOP |
1,484 | - |
|
Datasheet | - | 36-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (10) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | - | - | 4.5V ~ 14V | - | -35°C ~ 85°C (TA) | - | - | - | Over Temperature, UVLO | Surface Mount | 36-HSOP-M |
|
|
BA6792FP-YE2IC HALF BRIDGE DRIVER 25HSOP |
2,872 | - |
|
Datasheet | - | 25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | - | - | 4.5V ~ 13.5V | 4.5V ~ 13.5V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 25-HSOP |
|
BD7776ARFS-E2IC HALF BRIDGE DRIVER 44HTSSOP |
4,906 | - |
|
Datasheet | - | 44-VSOP (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (15) | DC Motors, General Purpose | Logic | Inductive | - | - | 500mA, 1A | - | 10.8V ~ 13.2V | 4.3V ~ 13.2V | -20°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature | Surface Mount | 44-HTSSOP-A |
|
BD6883GUL-E2IC HALF BRIDG DRV 150MA VCSP50L1 |
2,917 | - |
|
Datasheet | - | 6-UFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | 150mA | - | 2.5V ~ 5.5V | - | -25°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | VCSP50L1 |
|
BA6208FIC HALF BRIDGE DRVR 200MA 14SOP |
4,879 | - |
|
Datasheet | - | 14-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 200mA | 500mA | 4.5V ~ 15V | 4.5V ~ 15V | -20°C ~ 60°C (TA) | - | - | - | - | Surface Mount | 14-SOP |
|
|
BA5826SFP-E2IC POWER MANAGEMENT SMD |
2,496 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
