ELECTRONIC COMPONENTS
Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC4429ZTIC GATE DRVR LOW-SIDE TO220-5 |
4,731 | - |
|
Datasheet | - | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Inverting | - | 12ns, 13ns | 0°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|

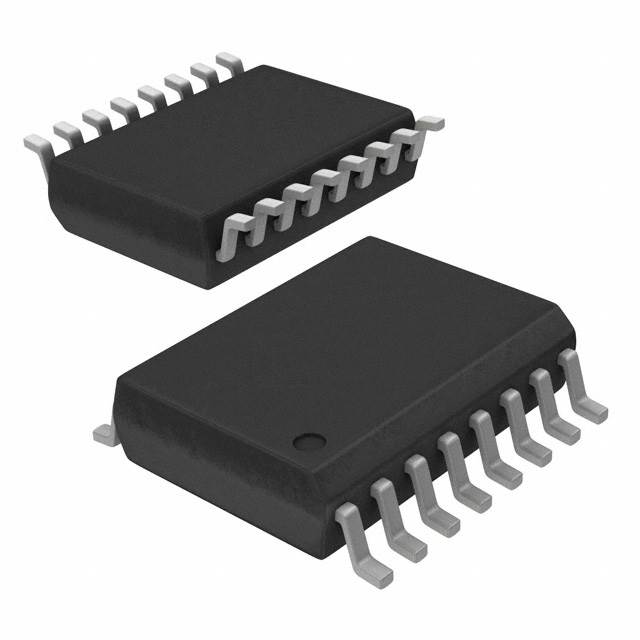

MIC5016BWMIC GATE DRVR HI/LOW SIDE 16SOIC |
2,731 | - |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 2.75V ~ 30V | 0.8V, 2V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
MIC5016YWMIC GATE DRVR HI/LOW SIDE 16SOIC |
2,951 | - |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 2.75V ~ 30V | 0.8V, 2V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
TC4431EPAIC GATE DRVR HI/LOW SIDE 8DIP |
3,872 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 25ns, 33ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
TC4405EPAIC GATE DRVR LOW-SIDE 8DIP |
2,704 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 40ns, 40ns (Max) | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
TC4431VPAIC GATE DRVR HI/LOW SIDE 8DIP |
4,079 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 25ns, 33ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
MIC4606-2YML-T5IC GATE DRVR HALF-BRIDGE 16QFN |
2,842 | - |
|
Datasheet | - | 16-VQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Full-Bridge | Synchronous | 4 | N-Channel MOSFET | 5.25V ~ 16V | 0.8V, 2.2V | 1A, 1A | Non-Inverting | 108 V | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (4x4) |
|
TC4429VATIC GATE DRVR LOW-SIDE TO220-5 |
4,185 | - |
|
Datasheet | - | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Inverting | - | 25ns, 25ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|

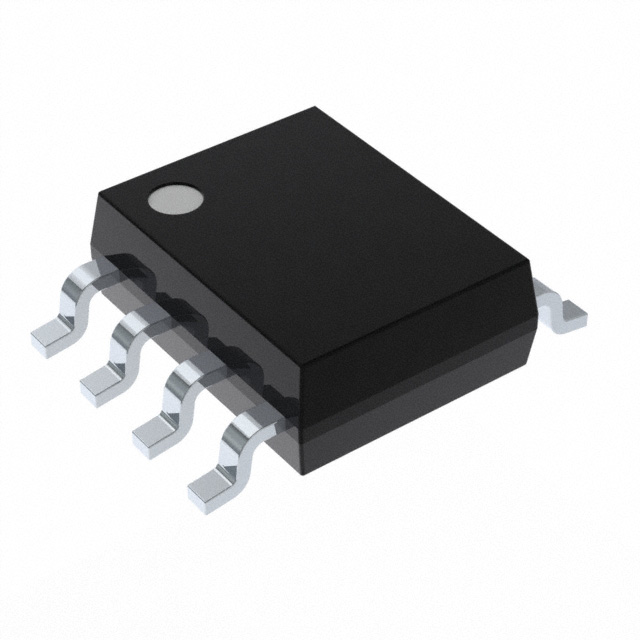

TC4421ESM713IC GATE DRVR LOW-SIDE 8SOIJ |
2,576 | - |
|
Datasheet | - | 8-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 9A, 9A | Inverting | - | 60ns, 60ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIJ |
|
|
TC4422ESM713IC GATE DRVR LOW-SIDE 8SOIJ |
3,327 | - |
|
Datasheet | - | 8-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 9A, 9A | Non-Inverting | - | 60ns, 60ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIJ |
