ELECTRONIC COMPONENTS
Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IGD515EIIC GATE DRVR HI/LOW SIDE MODULE |
4,697 | - |
|
Datasheet | SCALE™-1 | Module | Bulk | Not For New Designs | Not Verified | High-Side or Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 12V ~ 16V | 0.9V, 3.8V | 15A, 15A | - | - | 40ns, 40ns | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|
2SP0115T2C0-06IC GATE DRVR HALF-BRIDGE MODULE |
3,657 | - |
|
Datasheet | SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 600 V | 5ns, 10ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
SID1183K-TLIC GATE DRV HI/LO SIDE ESOP-R16B |
2,639 | - |
|
Datasheet | SCALE™-1 | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Cut Tape (CT) | Obsolete | Not Verified | High-Side or Low-Side | Single | 2 | IGBT, N-Channel MOSFET | 4.75V ~ 5.25V | 0.5V, 3.3V | 8A, 48A | Inverting | - | 465ns, 460ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | eSOP-R16B |
|
2SC0106T2A1C-12IC GATE DRVR HALF-BRIDGE MODULE |
4,289 | - |
|
Datasheet | SCALE™-2+ | Module | Bulk | Active | - | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 6A, 6A | Non-Inverting | 1200 V | 20ns, 13ns | -40°C ~ 105°C (TA) | - | - | Chassis Mount | Module |
|
|
2SC0108T2G0C-17IC GATE DRVR HI/LOW SIDE MODULE |
1,833 | - |
|
Datasheet | SCALE™-2+ | Module | Bulk | Active | - | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1700 V | 17ns, 15ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
|
2SP0115T2D0-12IC GATE DRVR HALF-BRIDGE MODULE |
2,811 | - |
|
Datasheet | SCALE™-2 | Module | Bulk | Active | - | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 15A, 15A | - | 1200 V | 5ns, 10ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
|
IGD616IC GATE DRVR HI/LOW SIDE MODULE |
3,559 | - |
|
Datasheet | SCALE™-1 | 36-DIP Module, 24 Leads | Box | Obsolete | Not Verified | High-Side or Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 14V ~ 16V | 0.9V, 3.8V | 16A, 16A | - | - | 100ns, 80ns | -40°C ~ 85°C (TA) | - | - | Through Hole | Module |
|
|
2SC0435T2H0C-17IC GATE DRVR HI/LOW SIDE MODULE |
2,141 | - |
|
Datasheet | SCALE™-2+ | Module | Bulk | Active | - | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 14.5V ~ 15.5V | - | 35A, 35A | - | 1700 V | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|
1SP0335D2S1-45IC GATE DRVR HI/LOW SIDE MODULE |
3,649 | - |
|
Datasheet | SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 9ns, 30ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

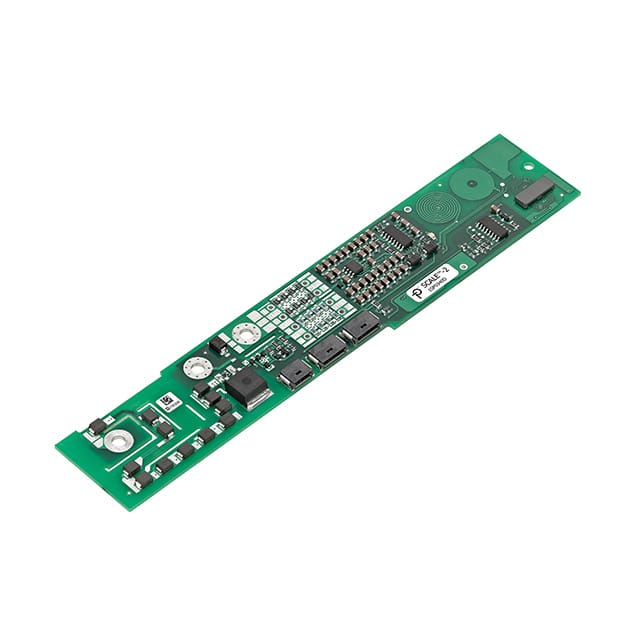

1SP0340D2S0-45IC GATE DRVR HI/LOW SIDE MODULE |
3,404 | - |
|
Datasheet | SCALE™-2 | Module | Bulk | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 23.5V ~ 26.5V | - | 35A, 35A | - | 4500 V | 10ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
