ELECTRONIC COMPONENTS
Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLA567-11RIC GATE DRVR HALF-BRIDGE MODULE |
4,232 | - |
|
Datasheet | - | 44-DIP Module, 28 Leads | Bulk | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | - | Non-Inverting | - | 400ns, 300ns | -20°C ~ 70°C (TA) | - | - | Through Hole | Module |
|
VLA502-01IC GATE DRVR LOW-SIDE MODULE |
3,690 | - |
|
Datasheet | - | 21-SIP Module | Bulk | Active | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | 12A, 12A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|

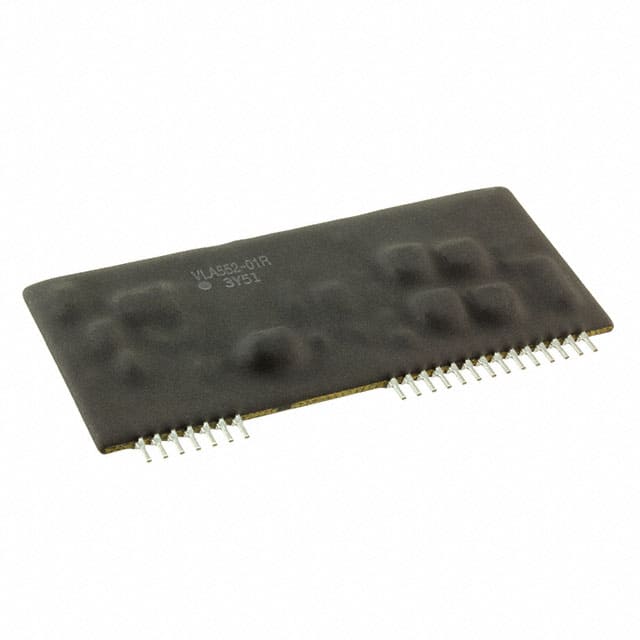

VLA552-01RIC GATE DRVR LOW-SIDE MODULE |
1,378 | - |
|
Datasheet | - | 30-SIP Module, 21 Leads | Bulk | Discontinued at Digi-Key | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | - | Inverting, Non-Inverting | - | 600ns, 300ns | -25°C ~ 70°C (TA) | - | - | Through Hole | Module |

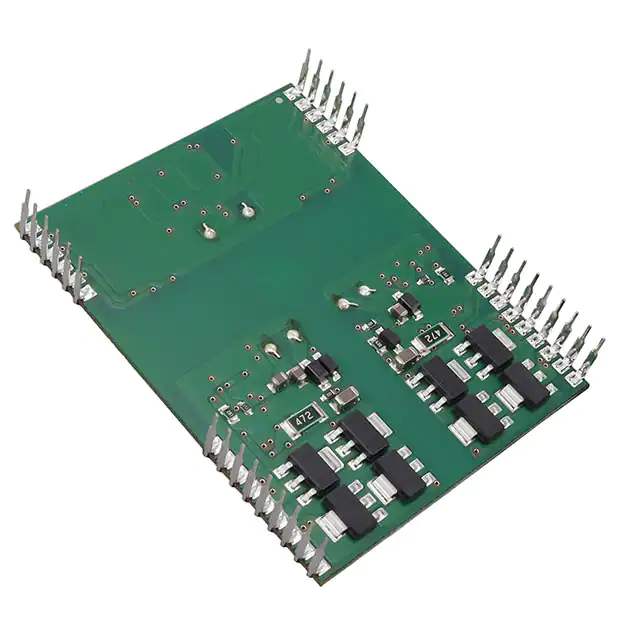

.jpg "VLA591-01R")
|
VLA591-01RIC GATE DRVR FULL-BRIDGE MODULE |
1,020 | - |
|
Datasheet | - | 50-DIP Module, 30 Leads | Tray | Discontinued at Digi-Key | Not Verified | Full-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | Non-Inverting | - | 520ns, 120ns | -40°C ~ 85°C | - | - | Through Hole | Module |
|
VLA553-01RIC GATE DRVR HALF-BRIDGE OCTAPAK |
2,819 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | OctaPAK 7+1 |
|
|
VLA553-02RIC GATE DRVR HALF-BRIDGE MODULE |
3,412 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | 24A, 24A | Non-Inverting | - | - | -25°C ~ 70°C (TA) | - | - | Chassis Mount | Module |
|

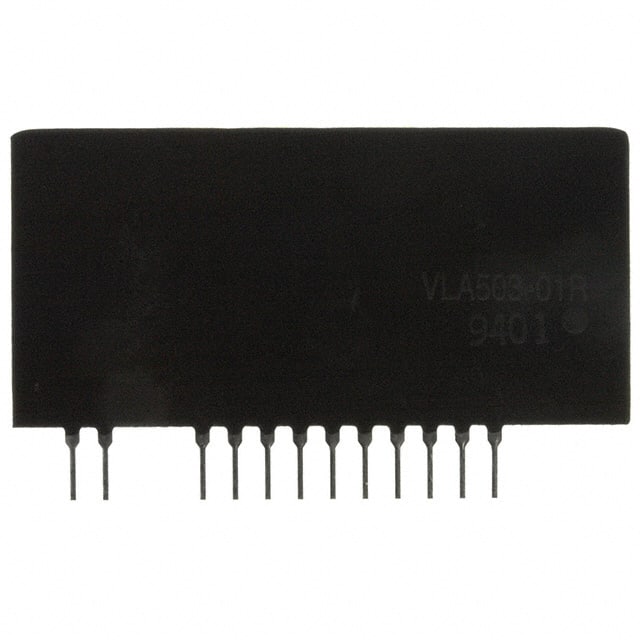

VLA503-01IC GATE DRVR LOW-SIDE MODULE |
4,842 | - |
|
Datasheet | - | 12-SIP | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 5A, 5A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
M57160AL-01IC GATE DRVR LOW-SIDE MODULE |
1,738 | - |
|
Datasheet | - | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 5A, 5A | Non-Inverting | - | 500ns, 400ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
M57161L-01IC GATE DRVR LOW-SIDE MODULE |
1,165 | - |
|
Datasheet | - | 28-SIP, 15 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14.3V ~ 15.7V | - | 7A, 7A | Non-Inverting | - | 400ns, 400ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
|
|
M57959LIC GATE DRVR LOW-SIDE MODULE |
3,614 | - |
|
Datasheet | - | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 15V | - | 2A, 2A | Non-Inverting | - | 500ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | Module |
