ELECTRONIC COMPONENTS
Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT1161CSW#TRPBFIC GATE DRVR HIGH-SIDE 20SOIC |
1,205 | - |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 8V ~ 48V | 0.8V, 2V | - | Non-Inverting | - | - | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
LT1161CSW#PBFIC GATE DRVR HIGH-SIDE 20SOIC |
1,616 | - |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 8V ~ 48V | 0.8V, 2V | - | Non-Inverting | - | - | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
LT1161ISW#PBFIC GATE DRVR HIGH-SIDE 20SOIC |
9,150 | - |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 8V ~ 48V | 0.8V, 2V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
LT1161ISW#TRPBFIC GATE DRVR HIGH-SIDE 20SOIC |
3,017 | - |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 8V ~ 48V | 0.8V, 2V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
LT1162CSW#PBFIC GATE DRVR HALF-BRIDGE 24SOIC |
413 | - |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Half-Bridge | Independent | 4 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
LTC7004MPMSE#PBFIC GATE DRVR HIGH-SIDE 10MSOP |
902 | - |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 60 V | 90ns, 40ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
LT8722AV#PBFIC GATE DRVR FULL-BRIDGE 18QFN |
2,444 | - |
|
Datasheet | - | 18-TFQFN Exposed Pad | Tray | Active | Not Verified | Full-Bridge | Single | 2 | N-Channel MOSFET | 3.1V ~ 15V | - | 4A, 4A | Non-Inverting | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 18-QFN (3x3) |
|
|
LTC7001MPMSE#PBFIC GATE DRVR HIGH-SIDE 10MSOP |
861 | - |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 135 V | 90ns, 40ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
LTC7000MPMSE#TRPBFIC GATE DRVR HIGH-SIDE 16MSOP |
389 | - |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 135 V | 90ns, 40ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|

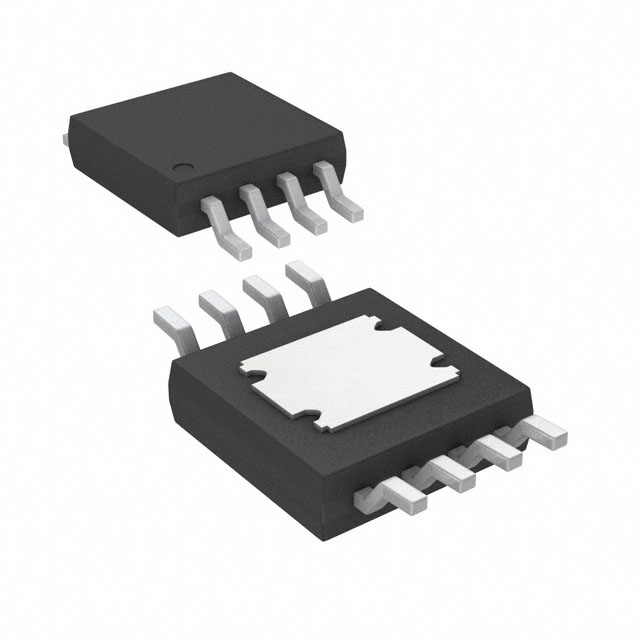

ADP3654ARHZ-RLIC GATE DRVR LOW-SIDE 8MINISOIC |
11,246 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 4A, 4A | Non-Inverting | - | 10ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
