ELECTRONIC COMPONENTS
Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXA611P7IC GATE DRVR HALF-BRIDGE 14DIP |
1,997 | - |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Box | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 35V | 6V, 7V | 600mA, 600mA | Non-Inverting | 650 V | 23ns, 22ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-PDIP |
|
IXD611P1IC GATE DRVR HALF-BRIDGE 8DIP |
2,441 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Box | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 35V | 2.4V, 2.7V | 600mA, 600mA | Non-Inverting | 600 V | 28ns, 18ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-DIP |
|
IXD611S1IC GATE DRVR HALF-BRIDGE 8SOIC |
1,212 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Box | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 35V | 2.4V, 2.7V | 600mA, 600mA | Non-Inverting | 600 V | 28ns, 18ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IXD611S7IC GATE DRVR HALF-BRIDGE 14SOIC |
1,739 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Box | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 35V | 2.4V, 2.7V | 600mA, 600mA | Non-Inverting | 600 V | 28ns, 18ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
IXDD404SIAIC GATE DRVR LOW-SIDE 8SOIC |
4,060 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 2.5V | 4A, 4A | Non-Inverting | - | 16ns, 13ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IXDD404SIA-16IC GATE DRVR LOW-SIDE 16SOIC |
2,084 | - |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 2.5V | 4A, 4A | Non-Inverting | - | 16ns, 13ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
IXDD409CIIC GATE DRVR LOW-SIDE TO220-5 |
1,239 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3.5V | 9A, 9A | Non-Inverting | - | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
|
IXDD409PIIC GATE DRVR LOW-SIDE 8DIP |
2,942 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3.5V | 9A, 9A | Non-Inverting | - | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-DIP |
|
|
IXDD409SIIC GATE DRVR LOW-SIDE 8SOIC |
1,996 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3.5V | 9A, 9A | Non-Inverting | - | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IXDD414SIIC GATE DRVR LOW-SIDE 14SOIC |
4,156 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3.5V | 14A, 14A | Non-Inverting | - | 25ns, 22ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
IXDD415SIIC GATE DRVR LOW-SIDE 28SOIC |
1,789 | - |
|
Datasheet | - | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 8V ~ 30V | 0.8V, 3.5V | 15A, 15A | Non-Inverting | - | 4.5ns, 3.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
|
IXDD430CIIC GATE DRVR LOW-SIDE TO220-5 |
3,480 | - |
|
Datasheet | - | TO-220-5 | Box | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 8.5V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 18ns, 16ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
|
IXDD430MCIIC GATE DRVR LOW-SIDE TO220-5 |
3,032 | - |
|
Datasheet | - | TO-220-5 | Box | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 8.5V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 18ns, 16ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
IXDD430MYIIC GATE DRVR LOW-SIDE TO263 |
3,720 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Box | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 8.5V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 18ns, 16ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
|
IXDD430YIIC GATE DRVR LOW-SIDE TO263 |
4,506 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Box | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 8.5V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 18ns, 16ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
IXDD504D2IC GATE DRVR LOW-SIDE 8DFN |
2,368 | - |
|
Datasheet | - | 8-VDFN Exposed Pad | Box | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 4A, 4A | Non-Inverting | - | 9ns, 8ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (4x5) |
|
|
IXDD504PIIC GATE DRVR LOW-SIDE 8DIP |
1,324 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 4A, 4A | Non-Inverting | - | 9ns, 8ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-DIP |
|
|
IXDD504SIAIC GATE DRVR LOW-SIDE 8SOIC |
2,516 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 4A, 4A | Non-Inverting | - | 9ns, 8ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

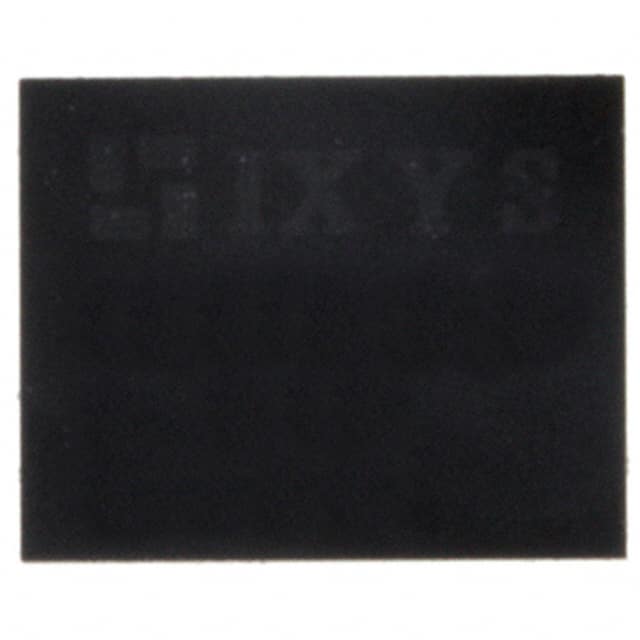

IXDD509D1IC GATE DRVR LOW-SIDE 6DFN |
3,611 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 9A, 9A | Non-Inverting | - | 25ns, 23ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN (4x5) |
|
|
IXDD509PIIC GATE DRVR LOW-SIDE 8DIP |
1,504 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 9A, 9A | Non-Inverting | - | 25ns, 23ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-DIP |
