ELECTRONIC COMPONENTS
Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC33996EKR2IC PWR SWITCH N-CH 1:16 32SOIC |
4,742 | - |
|
Datasheet | 32-BSSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 16 | 1:16 | Low Side | N-Channel | SPI | 5V ~ 27V | 1.5V ~ 3V | 900mA | 550mOhm | - | PWM Input | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-SOIC |
|
MC35XS3400CPNAIC PWR SWITCH N-CHAN 1:4 24PQFN |
1,543 | - |
|
Datasheet | 24-PowerQFN | - | Tray | Obsolete | General Purpose | 4 | 1:4 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 6A | 35mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
MCZ33298EGR2IC PWR SWITCH N-CHAN 1:8 24SOIC |
1,308 | - |
|
Datasheet | 24-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 5.5V ~ 26.5V | 4.5V ~ 5.5V | 3A | 350mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
|
MC33298DWR2IC PWR SWITCH N-CHAN 1:8 24SOIC |
1,255 | - |
|
Datasheet | 24-SOIC (0.295", 7.50mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 9V ~ 26.5V | 2.5V ~ 4.5V | 1A | 350mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SOIC |
|
MC33880DWIC PWR SWITCH N-CHAN 1:8 28SOIC |
1,212 | - |
|
Datasheet | 28-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 5.5V ~ 24.5V | 4.75V ~ 5.25V | 800mA | 550mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
MC33880DWBIC PWR SWITCH N-CHAN 1:8 32SOIC |
1,855 | - |
|
Datasheet | 32-BSSOP (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 5.5V ~ 24.5V | 4.75V ~ 5.25V | 800mA | 550mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-SOIC |
|
|
MCZ33880EWIC PWR SWITCH N-CHAN 1:8 32SOIC |
1,947 | - |
|
Datasheet | 32-BSSOP (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 5.5V ~ 24.5V | 4.75V ~ 5.25V | 800mA | 550mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-SOIC |
|
MC50XS4200DEKR2HIGH-SIDE SWITCH, 24V, DUAL 50MO |
2,356 | - |
|
Datasheet | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 1.65A | 41mOhm | Non-Inverting | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Adjustable), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|

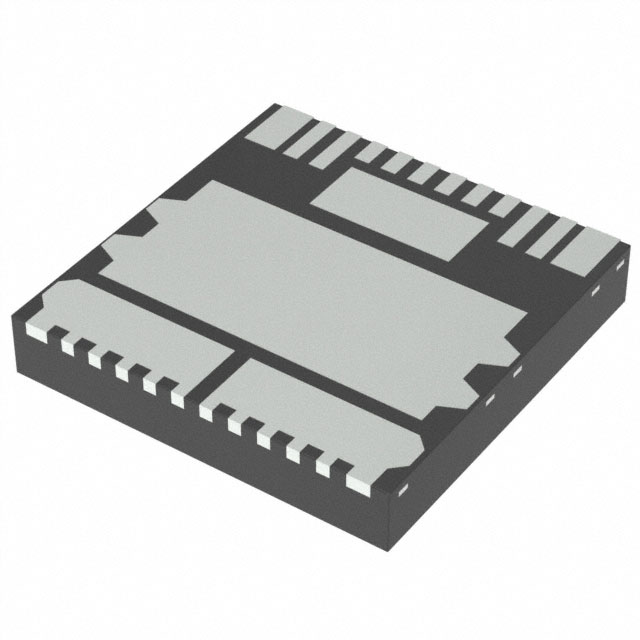

MC33988CPNAIC PWR SWITCH N-CHAN 1:2 16QFN |
1,257 | - |
|
Datasheet | 16-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | SPI | 6V ~ 27V | 4.5V ~ 5.5V | - | 8mOhm (Max) | - | Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-PQFN (12x12) |
|
|
MC10XS3435DPNAR2IC PWR SWITCH N-CHAN 1:1 24PQFN |
3,531 | - |
|
Datasheet | 24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 6A | 10mOhm (Max), 35mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
