ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPL730F18-CRLINEAR VOLTAGE REGULATOR IC FIXE |
3,496 | - |
|
Datasheet | TPL730 | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.25V @ 300mA | 300mA | - | - | 65dB ~ 45dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-5 |
|
TLV75510PDQNRM3500-MA HIGH-PSRR LOW-IQ LOW-DROP |
3,270 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1V | - | 0.83V @ 500mA | 500mA | 40 µA | - | 46dB (100kHz), 52dB (1kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
|
TLV755075PDQNR500MA HIGH-PSRR LOW-IQ LOW-DROPO |
4,861 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.75V | - | 1.14V @ 500mA | 500mA | 40 µA | - | 46dB (100kHz), 52dB (1kHz ~ 1MHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|

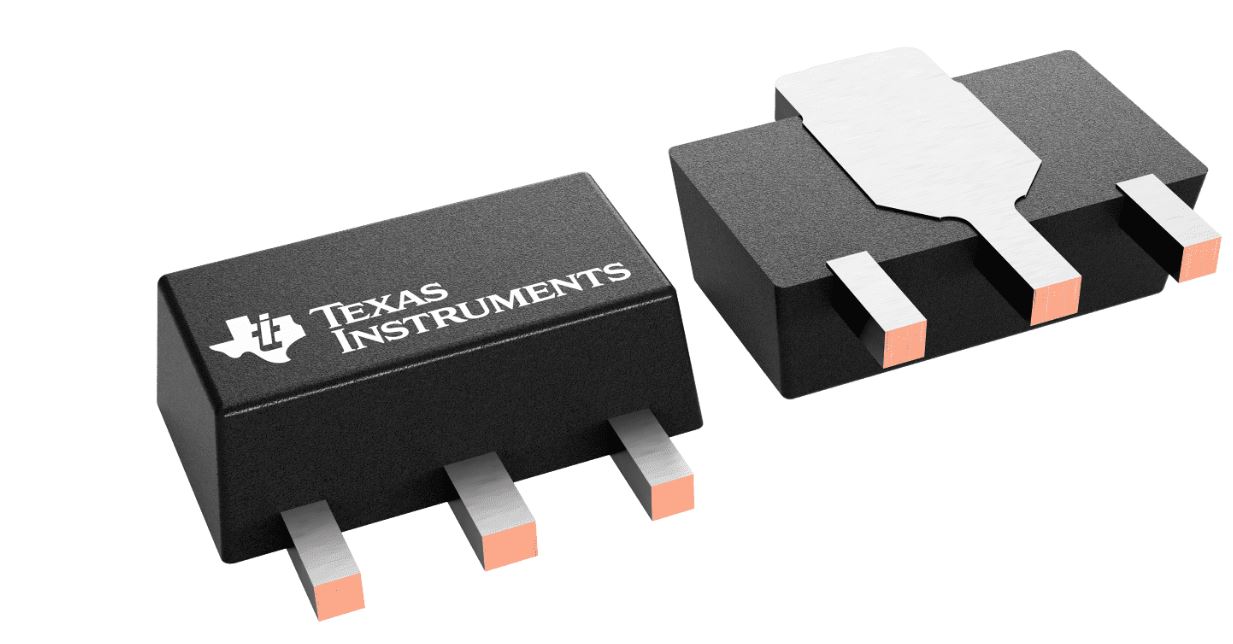

UA78L033AIPKUA78L033AIPK |
1,496 | - |
|
Datasheet | UA78L | TO-243AA | Bulk | Active | Positive | Fixed | 1 | 35V | 3.3V | - | 1.7V @ 40mA | 100mA | 4.1 mA | - | 57.5dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|

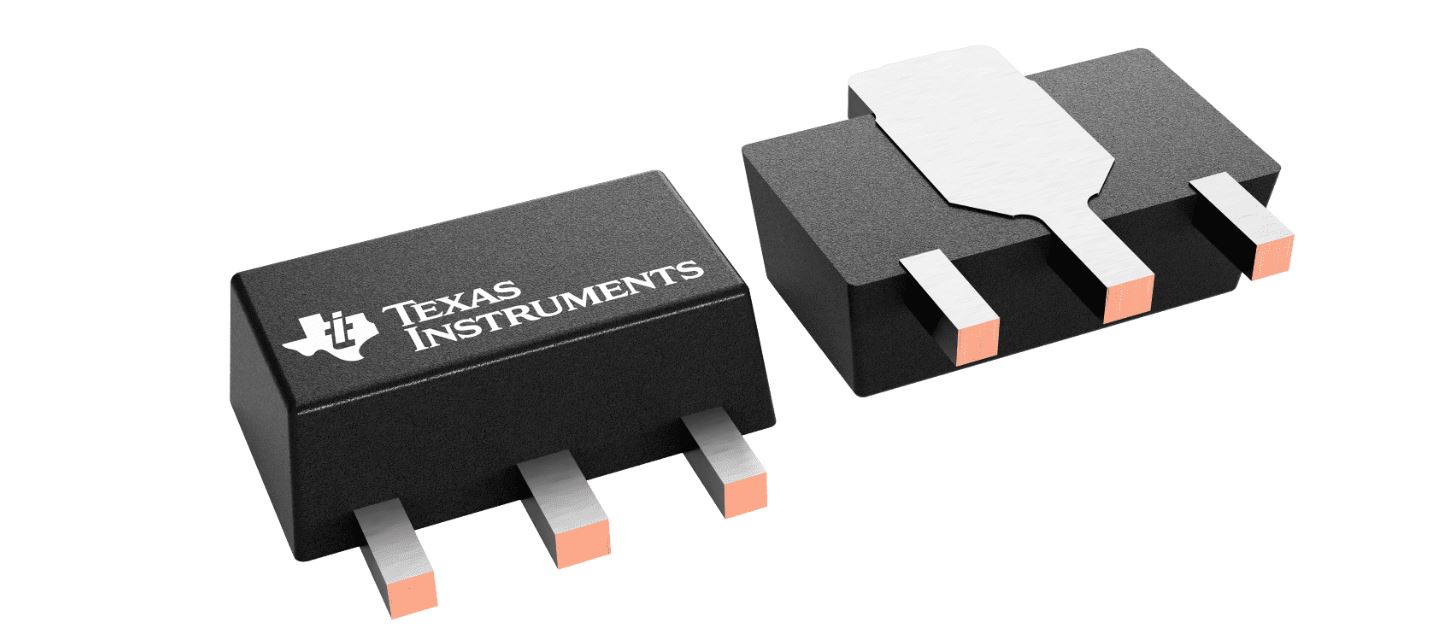

UA78L15ACPKM3UA78L15ACPKM3 |
3,896 | - |
|
Datasheet | UA78L | TO-243AA | Bulk | Active | Positive | Fixed | 1 | 35V | 15V | - | 1.7V @ 40mA | 100mA | 6.5 mA | - | 45dB ~ 39dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
DI78L08ZABVR TO92 30V 7.68V 8.32V 125DEG |
1,993 | - |
|
Datasheet | DI78LxxZAB | TO-226-3, TO-92-3 (TO-226AA) | Cut Tape (CT) | Active | Positive | Fixed | 1 | 30V | 8V | - | 1.7V @ 40mA | 100mA | 6 mA | - | 45dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92 |
|
ADPL42001AZT+T20V, 100MA, ULTRA-LOW QUIESCENT |
1,280 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 0.6V | 18V | 1.1V @ 100mA | 100mA | 15 µA | - | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
TLV75515PDQNRIC REG LINEAR 1.5V 500MA 4X2SON |
3,420 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.425V @ 500mA | 500mA | 31 µA | - | 52dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
TPS7B91120DBVR150MA 40V 1.5A IQ LOW-DROPOUT LI |
4,260 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 12V | - | 1.8V @ 150mA | 150mA | 3 µA | 150 µA | 55dB ~ 43dB (10kHz ~ 100kHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
TPS7A2016YCKR300MA ULTRA-LOW-NOISE LOW-IQ LOW |
2,040 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.6V | - | 0.2V @ 300mA | 300mA | 15 µA | - | 95dB ~ 40dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.62x0.62) |
|
|
TPS7A2030YCKR300MA ULTRA-LOW-NOISE LOW-IQ LOW |
4,420 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.14V @ 300mA | 300mA | 15 µA | - | 95dB ~ 40dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.62x0.62) |
|
|
TPS7A2018YCKR300MA ULTRA-LOW-NOISE LOW-IQ LOW |
2,981 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.2V @ 300mA | 300mA | 15 µA | - | 95dB ~ 40dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.62x0.62) |
|
|
TPS7A2033YCKR300MA ULTRA-LOW-NOISE LOW-IQ LOW |
4,645 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.14V @ 300mA | 300mA | 15 µA | - | 95dB ~ 40dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.62x0.62) |
|
|
TPS7A20C22PYCKR300MA, ULTRA-LOW-NOISE LOW-IQ HI |
1,281 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.2V | - | 0.2V @ 300mA | 300mA | 18.5 µA | 2 mA | 95dB ~ 36dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.62x0.62) |
|
|
TPS7A20C25PYCKR300MA, ULTRA-LOW-NOISE LOW-IQ HI |
3,472 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.14V @ 300mA | 300mA | 18.5 µA | 2 mA | 95dB ~ 36dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.62x0.62) |
|
|
ADPL44001AZT+T40V, 100MA, ULTRA-LOW QUIESCENT |
4,519 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 0.6V | 18V | 1.1V @ 100mA | 100mA | 15 µA | - | - | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
TPS73725DCQRM31A ULTRA-LOW-DROPOUT VOLTAGE REG |
3,178 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TPS73733DCQRM31A ULTRA-LOW-DROPOUT VOLTAGE REG |
1,332 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TPS7A20U18PYCKR75MA, ULTRA-LOW-NOISE LOW-IQ HIG |
4,128 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.095V @ 75mA | 75mA | 15 µA | 1.5 mA | 89dB (1kHz), 88dB ~ 42dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.6x0.6) |
|
|
TPS7A20U33PYCKR75MA, ULTRA-LOW-NOISE LOW-IQ HIG |
3,646 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.095V @ 75mA | 75mA | 15 µA | 1.5 mA | 89dB (1kHz), 88dB ~ 42dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.6x0.6) |
