ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCR2EE115,LM(CTIC REG LINEAR 1.15V 200MA ESV |
3,576 | - |
|
Datasheet | TCR2EE | SOT-553 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.15V | - | 0.67V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | ESV |
|

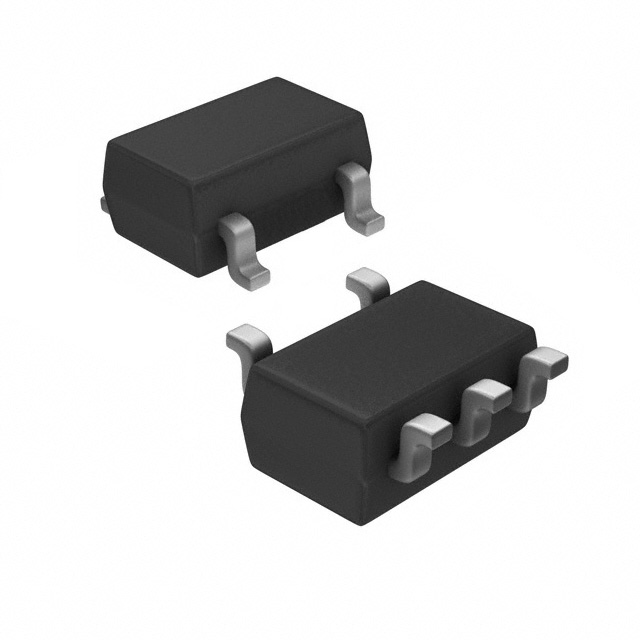

TCR2EF12,LM(CTIC REG LINEAR 1.2V 200MA SMV |
1,497 | - |
|
Datasheet | TCR2EF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.57V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
TCR2EF25,LM(CTIC REG LDO 2.5V 0.2A SMV |
3,759 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.23V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
TCR2EN115,LFIC REG LINEAR 1.15V 200MA 4SDFN |
1,305 | - |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.15V | - | 0.65V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN285,LFIC REG LINEAR 2.85V 200MA 4SDFN |
2,249 | - |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.21V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN32,LFIC REG LINEAR 3.2V 200MA 4SDFN |
2,329 | - |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.2V | - | 0.18V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN34,LFIC REG LINEAR 3.4V 200MA 4SDFN |
3,899 | - |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.4V | - | 0.18V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN35,LFIC REG LINEAR 3.5V 200MA 4SDFN |
3,507 | - |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.5V | - | 0.18V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2LN08,LFIC REG LINEAR 0.8V 200MA 4SDFN |
4,840 | - |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.8V | - | 1.56V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2LN25,LFIC REG LINEAR 2.5V 200MA 4SDFN |
4,678 | - |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.36V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2LN36,LFIC REG LINEAR 3.6V 200MA 4SDFN |
3,872 | - |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.28V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
MIC5265-2.0YMT-TRIC REG LINEAR 2V 150MA 6TDFN |
4,326 | - |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2V | - | 0.5V @ 150mA | 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC5265-2.9YMT-TRIC REG LINEAR 2.9V 150MA 6TDFN |
1,016 | - |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.5V @ 150mA | 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC5265-3.0YMT-TRIC REG LINEAR 3V 150MA 6TDFN |
3,102 | - |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.5V @ 150mA | 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC5265-3.3YMT-TRIC REG LINEAR 3.3V 150MA 6TDFN |
3,462 | - |
|
Datasheet | - | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.5V @ 150mA | 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
TCR2LN18,LFIC REG LINEAR 1.8V 200MA 4SDFN |
3,006 | - |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
TCR2EF285,LM(CTIC REG LINEAR 2.85V 200MA SMV |
3,644 | - |
|
Datasheet | TCR2EF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.23V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
UM1550S5V Input Ultra Low IQ LDO |
4,203 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 8V | - | 5V | 0.3V @ 200mA | 300mA | 3.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
S-19251D35H-M5T1U4LINEAR IC |
1,082 | - |
|
Datasheet | S-19251 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.5V | - | 0.27V @ 100mA | 150mA | 4.5 µA | 50 µA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
S-19251B33H-M5T1U4LINEAR IC |
3,804 | - |
|
Datasheet | S-19251 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.27V @ 100mA | 150mA | 4.5 µA | 50 µA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
