ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-19514AFKA-E8T1U4IC REG LINEAR 5V 250MA 8HSOPA |
4,430 | - |
|
Datasheet | S-19514 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.5V @ 250mA | 250mA | 9.5 µA | - | 60dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|

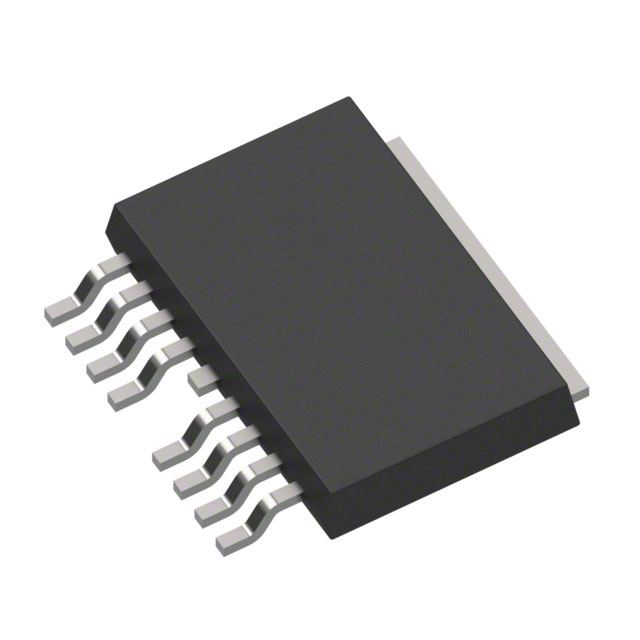

S-19514AY2A-V9T1U4IC REG LIN 3.3V 250MA TO252-9S |
3,740 | - |
|
Datasheet | S-19514 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.5 µA | - | 65dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19515AY1A-V9T1U4IC REG LIN 3.3V 250MA TO252-9S |
4,408 | - |
|
Datasheet | S-19515 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.5 µA | - | 65dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19515AY2A-E8T1U4IC REG LINEAR 3.3V 250MA 8HSOPA |
1,822 | - |
|
Datasheet | S-19515 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.5 µA | - | 65dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19515AY2A-V9T1U4IC REG LIN 3.3V 250MA TO252-9S |
2,887 | - |
|
Datasheet | S-19515 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.5 µA | - | 65dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19514AY3A-E8T1U4IC REG LINEAR 3.3V 250MA 8HSOPA |
3,969 | - |
|
Datasheet | S-19514 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.5 µA | - | 65dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19518AFPA-V9T1U4IC REG LINEAR 5V 250MA TO252-9S |
2,184 | - |
|
Datasheet | S-19518 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.5V @ 250mA | 250mA | 9.8 µA | - | 60dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19518AY1A-E8T1U4IC REG LINEAR 3.3V 250MA 8HSOPA |
2,014 | - |
|
Datasheet | S-19518 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.8 µA | - | 65dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19514AFPA-V9T1U4IC REG LINEAR 5V 250MA TO252-9S |
2,519 | - |
|
Datasheet | S-19514 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.5V @ 250mA | 250mA | 9.5 µA | - | 60dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19515AY3A-E8T1U4IC REG LINEAR 3.3V 250MA 8HSOPA |
1,551 | - |
|
Datasheet | S-19515 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.5 µA | - | 65dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19515AFPA-E8T1U4IC REG LINEAR 5V 250MA 8HSOPA |
3,202 | - |
|
Datasheet | S-19515 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.5V @ 250mA | 250mA | 9.5 µA | - | 60dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19518AFKA-E8T1U4IC REG LINEAR 5V 250MA 8HSOPA |
2,356 | - |
|
Datasheet | S-19518 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.5V @ 250mA | 250mA | 9.8 µA | - | 60dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19518AY3A-V9T1U4IC REG LIN 3.3V 250MA TO252-9S |
1,175 | - |
|
Datasheet | S-19518 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.8 µA | - | 65dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19518AY2A-V9T1U4IC REG LIN 3.3V 250MA TO252-9S |
1,807 | - |
|
Datasheet | S-19518 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.8 µA | - | 65dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19518AFKA-V9T1U4IC REG LINEAR 5V 250MA TO252-9S |
4,512 | - |
|
Datasheet | S-19518 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.5V @ 250mA | 250mA | 9.8 µA | - | 60dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19514AFPA-E8T1U4IC REG LINEAR 5V 250MA 8HSOPA |
4,140 | - |
|
Datasheet | S-19514 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.5V @ 250mA | 250mA | 9.5 µA | - | 60dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19514AFKA-V9T1U4IC REG LINEAR 5V 250MA TO252-9S |
2,164 | - |
|
Datasheet | S-19514 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.5V @ 250mA | 250mA | 9.5 µA | - | 60dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19518AY3A-E8T1U4IC REG LINEAR 3.3V 250MA 8HSOPA |
1,400 | - |
|
Datasheet | S-19518 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.8 µA | - | 65dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19518AY2A-E8T1U4IC REG LINEAR 3.3V 250MA 8HSOPA |
3,507 | - |
|
Datasheet | S-19518 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.8 µA | - | 65dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19514AY3A-V9T1U4IC REG LIN 3.3V 250MA TO252-9S |
4,337 | - |
|
Datasheet | S-19514 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 250mA | 250mA | 9.5 µA | - | 65dB (100Hz) | Reset Out, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
