ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3853ESX-2.5IC REG LIN 2.5V 3A DDPAK/TO263-5 |
1,884 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.6V @ 3A | 3A | 4 mA | 10 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3853ESX-3.3IC REG LIN 3.3V 3A DDPAK/TO263-5 |
2,789 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.6V @ 3A | 3A | 4 mA | 10 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
LP3853ESX-5.0IC REG LIN 5V 3A DDPAK/TO263-5 |
3,294 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.6V @ 3A | 3A | 4 mA | 10 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LT3088HM#TRPBFIC REG LIN POS ADJ 800MA 3DDPAK |
3,104 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 0V | 34.5V | 1.6V @ 800mA | 800mA | 50.5 µA | 2 mA | 90dB ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | DDPAK-3 |
|
MAX38907ATP+TIC REG |
4,637 | - |
|
Datasheet | - | 20-WQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Programmable | 1 | 5.5V | 0.6V | 5V | - | 4A | 150 µA | - | 60dB ~ 42dB (1kHz ~ 100kHz) | Enable, Power On Reset | Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-TQFN (5x5) |
|
LT1087CTIC REG LINEAR ADJ 5A TO220-5 |
4,873 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | - | - | 1 | - | - | - | - | 5A | - | - | - | - | - | 0°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LP3872EMP-5.0IC REG LINEAR 5V 1.5A SOT223-5 |
1,457 | - |
|
Datasheet | - | TO-261-5, TO-261AB | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 7V | 5V | - | 0.55V @ 1.5A | 1.5A | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
LT3091EFE#TRPBFIC REG LIN NEG ADJ 1.5A 16TSSOP |
3,664 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -36V | 0V | -32V | 0.45V @ 1.5A | 1.5A | 50.5 µA | - | 85dB ~ 20dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP-EP |
|
TL1963A-25DCQTIC REG LINEAR 2.5V 1.5A SOT223-6 |
1,976 | - |
|
Datasheet | - | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 1 mA | 80 mA | 63dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
LP2960AIMX-5.0/NOPBIC REG LINEAR 5V 500MA 16SOIC |
4,952 | - |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 5V | - | 0.8V @ 500mA | 500mA | 600 µA | 40 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
TLE4290DATMA1IC REG LIN 5V 450MA TO252-5-11 |
4,767 | - |
|
Datasheet | OPTIREG™ | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 300mA | 450mA | 230 µA | 25 mA | 60dB (100Hz) | Delay, Power Good | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-5-11 |
|
LT1118CS8-2.5#TRPBFIC REG LINEAR 2.5V 800MA 8SOIC |
3,982 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 2.5V | - | 1.3V @ 800mA | 800mA | 1 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | 8-SO |
|
|
LT1118CS8-5#TRPBFIC REG LINEAR 5V 800MA 8SOIC |
4,606 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 5V | - | 1.3V @ 800mA | 800mA | 1 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | 8-SO |
|
|
LT1118CS8#TRPBFIC REG LINEAR POS ADJ 800MA 8SO |
2,086 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 15V | 2.1V | 6.5V | 1.3V @ 800mA | 800mA | 1 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | 8-SO |
.jpg "MIC37501-1.8WR-TR")
|
MIC37501-1.8WR-TRIC REG LINEAR 1.8V 5A SPAK-7 |
3,611 | - |
|
Datasheet | - | SPAK-7 (7 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.5V @ 5A | 5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 7-SPAK |
|
|
MIC37501-2.5WR-TRIC REG LINEAR 2.5V 5A SPAK-7 |
2,797 | - |
|
Datasheet | - | SPAK-7 (7 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.5V @ 5A | 5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 7-SPAK |
|
|
LT3028EFE#TRPBFIC REG LINEAR POS ADJ 16TSSOP |
2,155 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 2 | 20V | 1.22V | 20V | 0.45V @ 100mA, 0.47V @ 500mA | 100mA, 500mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP-EP |
|
MAX664ESA+TIC REG LIN NEG ADJ 40MA 8SOIC |
1,385 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Negative | Adjustable (Fixed) | 1 | -16.5V | -1.3V (-5V) | -16V | 0.35V @ 40mA | 40mA | 15 µA | - | - | Current Limit, Enable | - | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
REG1117FAKTTTIC REG LIN POS ADJ 1A DDPAK |
2,862 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 15V | 1.25V | 13.5V | 1.55V @ 1A | 1A | 10 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|

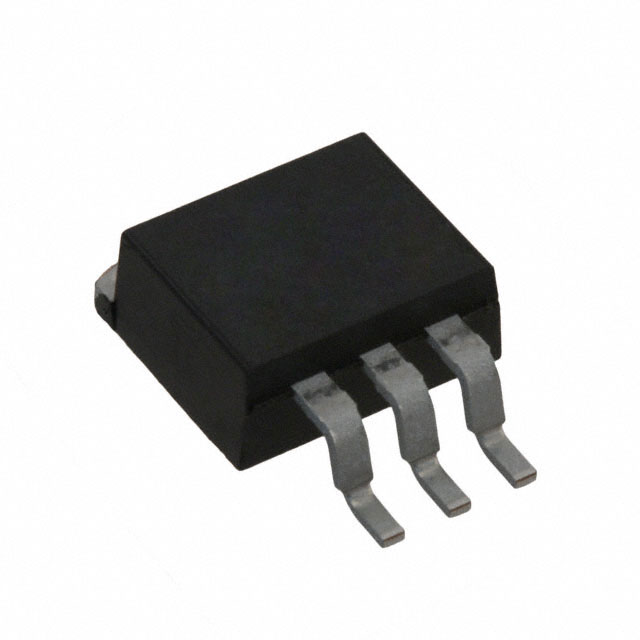

SC1566IM-2.5TRTIC REG LINEAR 2.5V 3A TO263 |
3,458 | - |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.6V @ 3A | 3A | 35 µA | 1.75 mA | - | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | TO-263 |
