ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ICL7663SACBAZAIC REG LINEAR POS ADJ 8SOIC |
3,545 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Adjustable | 2 | 16V | 1.3V | 16V | - | 40mA, 40mA | 10 µA | 12 µA | - | Enable | Over Current | 0°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|
PQ015EF02SZHIC REG LINEAR 1.5V 2A TO220-4 |
2,176 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 10V | 1.5V | - | - | 2A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-4 |
|
PQ050RDA1SZHIC REG LINEAR 5V 1A TO220-4 |
3,245 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 500mA | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Through Hole | TO-220-4 |
|
PQ5EV7LJ000HIC REG LINEAR 5V 7A TO220-5 |
4,700 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.5V @ 7.5A | 7A | - | - | 70dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220-5 |
|
|
PQ150VB01FZHIC REG LINEAR POS ADJ 1A TO220-5 |
4,765 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Adjustable | 1 | 17V | 1.5V | 15V | 0.5A @ 500mA | 1A | 5 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-5 |
|
|
PQ018EF02SZHIC REG LINEAR 1.8V 2A TO220-4 |
4,726 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | - | 2A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-4 |
|
|
PQ150VB02FZHIC REG LINEAR POS ADJ 2A TO220-5 |
4,334 | - |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Positive | Adjustable | 1 | 17V | 1.5V | 15V | 0.5A @ 2A | 2A | 5 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-5 |
|
PQ090RDA1SZHIC REG LINEAR 9V 1A TO220-4 |
2,493 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 24V | 9V | - | 0.5V @ 500mA | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Through Hole | TO-220-4 |
,TO-226_bentlead.jpg "PQ033ES3MXPQ")
|
PQ033ES3MXPQIC REG LINEAR 3.3V 300MA TO92-3 |
2,462 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 0.7V @ 300mA | 300mA | 650 µA | - | - | - | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Through Hole | TO-92-3 |
|
|
PQ033RD01SZHIC REG LINEAR 3.3V 1A TO220-4 |
3,834 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 9V | 3.3V | - | 0.5V @ 500mA | 1A | 5 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Through Hole | TO-220-4 |
|
|
PQ050ES1MXPQIC REG LINEAR 5V 150MA TO92-3 |
2,782 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | Positive | Fixed | 1 | 16V | 5V | - | 0.4V @ 150mA | 150mA | 350 µA | - | - | - | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Through Hole | TO-92-3 |
|
|
PQ050ES3MXPQIC REG LINEAR 5V 300MA TO92-3 |
1,411 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | Positive | Fixed | 1 | 10V | 5V | - | 0.7V @ 300mA | 300mA | 650 µA | - | - | - | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Through Hole | TO-92-3 |
|

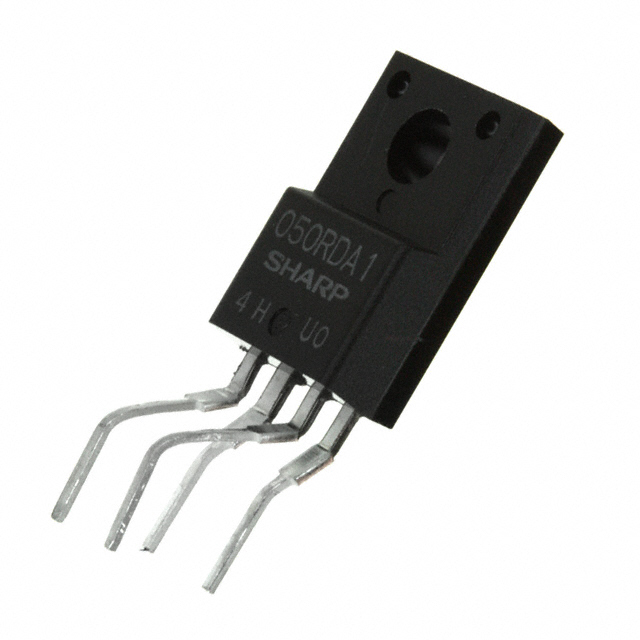

PQ050RDA1MZHIC REG LINEAR 5V 1A TO220-4 |
1,708 | - |
|
Datasheet | - | TO-220-4 (Formed Leads) | Tube | Obsolete | Positive | Fixed | 1 | - | 5V | - | - | 1A | - | - | - | - | - | - | - | - | Through Hole | TO-220-4 |
|
|
PQ080RDA1SZHIC REG LINEAR 8V 1A TO220-4 |
3,306 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Fixed | 1 | 24V | 8V | - | 0.5V @ 500mA | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Through Hole | TO-220-4 |
|
|
PQ070XF02SZHIC REG LINEAR POS ADJ 2A TO220-4 |
2,408 | - |
|
Datasheet | - | TO-220-4 | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 2A | 2A | 2 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-4 |
|
PQ070VK02FZHIC REG LINEAR POS ADJ 2A TO220-5 |
1,123 | - |
|
Datasheet | - | TO-220-5 Formed Leads | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 2A | 2A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220-5 |
|
PQ1U401M2ZPHIC REG LINEAR 4V 150MA SOT23-5 |
1,392 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 4V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U381M2ZPHIC REG LINEAR 3.8V 150MA SOT23-5 |
2,592 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.8V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1X181M2ZPHIC REG LINEAR 1.8V 150MA SOT23-5 |
3,783 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 9V | 1.8V | - | - | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
PQ1U441M2ZPHIC REG LINEAR 4.4V 150MA SOT23-5 |
2,139 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 4.4V | - | 0.4V @ 150mA | 150mA | 200 µA | - | 70dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23-5 |
