ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-817A59APF-CVWTFGIC REG LINEAR 5.9V 75MA SNT4A |
1,188 | - |
|
Datasheet | S-817 | 4-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 5.9V | - | 0.23V @ 10mA | 75mA | 2.5 µA | - | - | - | Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SNT-4A |
|
|
S-817A60APF-CVXTFGIC REG LINEAR 6V 75MA SNT4A |
3,528 | - |
|
Datasheet | S-817 | 4-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 6V | - | 0.23V @ 10mA | 75mA | 2.5 µA | - | - | - | Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SNT-4A |
|

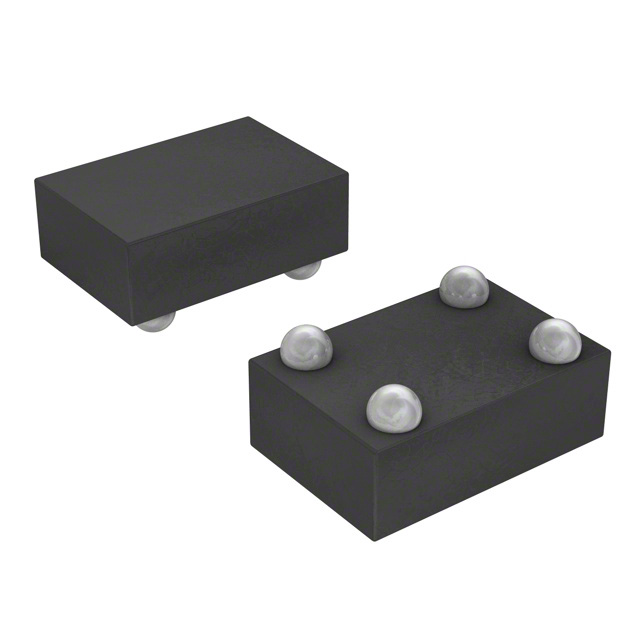

S-L2985B15-H4T1IC REG LINEAR 1.5V 150MA WLP-4B |
1,077 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 1.5V | - | 0.55V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B18-H4T1IC REG LINEAR 1.8V 150MA WLP-4B |
1,801 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.47V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B26-H4T1IC REG LINEAR 2.6V 150MA WLP-4B |
4,776 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.6V | - | 0.29V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B27-H4T1IC REG LINEAR 2.7V 150MA WLP-4B |
1,478 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.7V | - | 0.29V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B28-H4T1IC REG LINEAR 2.8V 150MA WLP-4B |
4,060 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.8V | - | 0.26V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B29-H4T1IC REG LINEAR 2.9V 150MA WLP-4B |
2,869 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.9V | - | 0.26V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B30-H4T1IC REG LINEAR 3V 150MA WLP-4B |
1,167 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3V | - | 0.26V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B31-H4T1IC REG LINEAR 3.1V 150MA WLP-4B |
4,225 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.1V | - | 0.26V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B32-H4T1IC REG LINEAR 3.2V 150MA WLP-4B |
4,627 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.2V | - | 0.26V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B33-H4T1IC REG LINEAR 3.3V 150MA WLP-4B |
1,461 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.26V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B34-H4T1IC REG LINEAR 3.4V 150MA WLP-4B |
4,425 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.4V | - | 0.26V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
|
S-L2985B35-H4T1IC REG LINEAR 3.5V 150MA WLP-4B |
4,741 | - |
|
Datasheet | S-L2985 | 4-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.5V | - | 0.26V @ 100mA | 150mA | 1 µA | 90 µA | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | WLP-4B |
|
L4938EPDIC REG LINEAR POS ADJ POWERSO20 |
1,432 | - |
|
Datasheet | - | 20-SOIC (0.433", 11.00mm Width) Exposed Pad | Tube | Active | Positive | Adjustable (Fixed) | 2 | 28V | 4.9V (5V) | 5.1V | 0.4V @ 100mA, 0.6V @ 400mA | 100mA, 400mA | - | - | - | Enable, Reset | Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | PowerSO-20 |
|
L4979MDIC REG LINEAR 5V 150MA 20SO |
3,936 | - |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 31V | 5V | - | 0.4V @ 150mA | 150mA | 20 µA | 3 mA | 55dB (100Hz) | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | 20-SO |
|

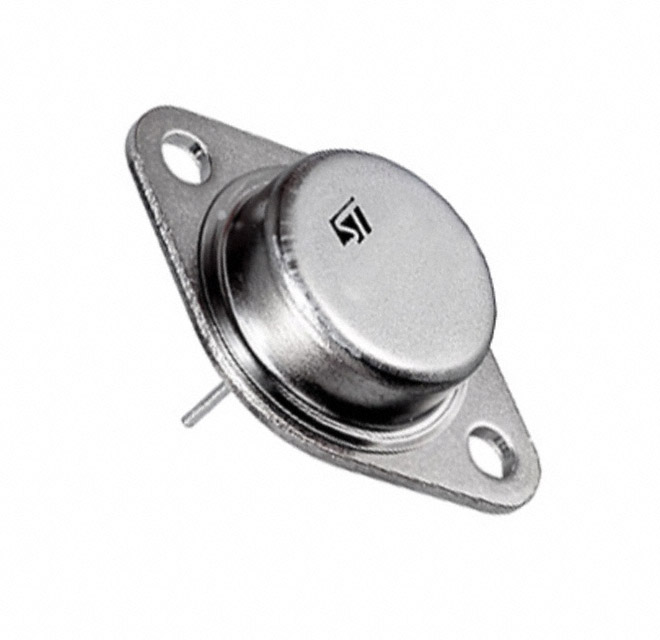

L7818CTIC REG LINEAR 18V 1.5A TO3 |
2,387 | - |
|
Datasheet | - | TO-204AA, TO-3 | Bag | Obsolete | Positive | Fixed | 1 | 35V | 18V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 53dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3 |
|
LD1117S28TRIC REG LINEAR 2.85V 800MA SOT223 |
3,126 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 2.85V | - | 1.2V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223 |
|
TPS72501DTG4IC REG LINEAR POS ADJ 1A 8SOIC |
3,469 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1.22V | 5.5V | 0.28V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TPS72518KTTTG3IC REG LIN 1.8V 1A DDPAK/TO263-5 |
2,969 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.32V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
BOM & COMPONENT SOURCING
Need Pricing or Stock Support for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators?
Submit your required part numbers, manufacturers and quantities to receive stock availability, pricing, lead-time and sourcing support. Our team assists with active components, shortage parts, obsolete models and one-stop BOM procurement.
