ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV8570MN180R2GIC REG LINEAR 1.8V 200MA 6DFN |
3,307 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 200mA | 90 µA | 220 µA | 80dB ~ 65dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2.2) |
|
|
NCV8570MN330R2GIC REG LINEAR 3.3V 200MA 6DFN |
3,807 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 200mA | 200mA | 90 µA | 220 µA | 80dB ~ 65dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2.2) |
|
NCV8664D50GIC REG LINEAR 5V 150MA 8SOIC |
4,113 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.6V @ 150mA | 150mA | 29 µA | 30 µA | 67dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
AP1086D33G-13IC REG LINEAR 3.3V 1.5A TO252-3 |
4,147 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|

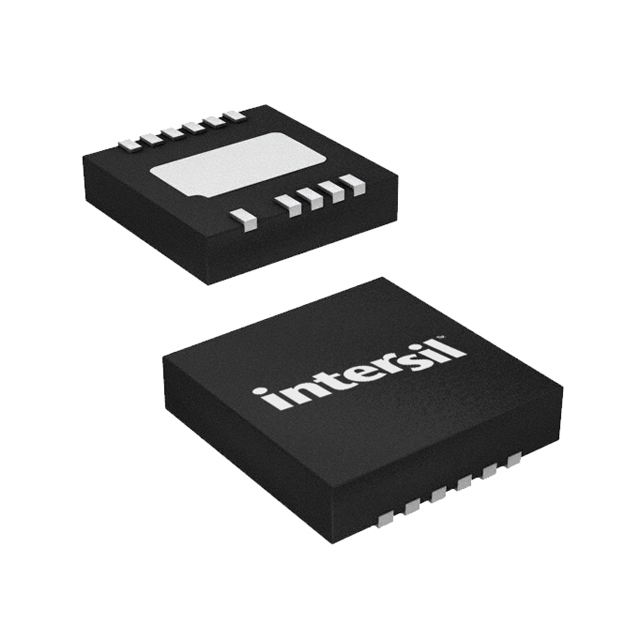

ISL6720AARZIC REG LINEAR POS ADJ 11DFN |
3,397 | - |
|
Datasheet | - | 11-VFDFN Exposed Pad | Tube | Obsolete | Positive | Adjustable (Fixed) | 3 | 100V | 0V (5V) | 20V | - | 125mA, 50mA, 25mA | 1.7 mA | - | - | Enable | Over Temperature | -40°C ~ 105°C | - | - | Surface Mount | 11-DFN (4x4) |
|
ISL9014AIRPLZIC REG LINEAR 1.85V/2.9V 10DFN |
3,542 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.85V, 2.9V | - | -, 0.325V @ 300mA | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRBCZIC REG LINEAR 1.5V/1.8V 10DFN |
2,519 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 1.8V | - | -, - | 300mA, 300mA | 40 µA | 60 µA | -, 70dB ~ 40dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRBJZIC REG LINEAR 1.5V/2.8V 10DFN |
4,972 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 2.8V | - | -, 0.4V @ 300mA | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
ISL9011AIRNCZIC REG LINEAR 3.3V/1.8V 10DFN |
4,304 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 3.3V, 1.8V | - | 0.2V @ 150mA, - | 150mA, 300mA | 40 µA | 60 µA | -, 70dB ~ 40dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRBLZIC REG LINEAR 1.5V/2.9V 10DFN |
1,602 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 1.5V, 2.9V | - | -, 0.325V @ 300mA | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRLLZIC REG LINEAR 2.9V/2.9V 10DFN |
2,100 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 2.9V, 2.9V | - | 0.2V @ 150mA, 0.325V @ 300mA | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRKNZIC REG LINEAR 2.85V/3.3V 10DFN |
4,692 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 2.85V, 3.3V | - | 0.2V @ 150mA, 0.325V @ 300mA | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRKPZIC REG LINEAR 2.85V/1.85V 10DFN |
4,163 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 2.85V, 1.85V | - | 0.2V @ 150mA, - | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRMMZIC REG LINEAR 3V/3V 10DFN |
1,737 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 3V, 3V | - | 0.2V @ 150mA, 0.325V @ 300mA | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRNCZIC REG LINEAR 3.3V/1.8V 10DFN |
3,197 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 3.3V, 1.8V | - | 0.2V @ 150mA, - | 300mA, 300mA | 40 µA | 60 µA | -, 70dB ~ 40dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRGPZIC REG LINEAR 2.7V/1.85V 10DFN |
1,773 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 2.7V, 1.85V | - | 0.2V @ 150mA, - | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRGCZIC REG LINEAR 2.7V/1.8V 10DFN |
2,277 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 2.7V, 1.8V | - | 0.2V @ 150mA, - | 300mA, 300mA | 40 µA | 60 µA | -, 70dB ~ 40dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRJCZIC REG LINEAR 2.8V/1.8V 10DFN |
1,066 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 2.8V, 1.8V | - | 0.2V @ 150mA, - | 300mA, 300mA | 40 µA | 60 µA | -, 70dB ~ 40dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRJRZIC REG LINEAR 2.8V/2.6V 10DFN |
1,501 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 2.8V, 2.6V | - | 0.2V @ 150mA, 0.4V @ 300mA | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL9014AIRJMZIC REG LINEAR 2.8V/3V 10DFN |
3,307 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 2 | 6.5V | 2.8V, 3V | - | 0.2V @ 150mA, 0.325V @ 300mA | 300mA, 300mA | 40 µA | 60 µA | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 10-DFN (3x3) |
