ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS1374BWLT18285IC REG LINEAR 1.8V/2.85V 6WLCSP |
2,893 | - |
|
Datasheet | - | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 2.85V | - | -, 0.15V @ 100mA | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
AS13986-1833-TIC REG LINEAR 1.8V/3.3V 8WLP |
2,016 | - |
|
Datasheet | - | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 3.3V | - | -, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WLP (1.55x1.55) |
|
|
AS13986-1225-TIC REG LINEAR 1.2V/2.5V 8WLP |
4,404 | - |
|
Datasheet | - | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 2.5V | - | -, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WLP (1.55x1.55) |
|
|
AS13986-2828-TIC REG LINEAR 2.8V/2.8V 8WLP |
2,971 | - |
|
Datasheet | - | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 2.8V, 2.8V | - | 0.1V @ 150mA, 0.1V @ 150mA | 150mA, 150mA | 200 µA | 370 µA | 55dB ~ 50dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-WLP (1.55x1.55) |
|
|
AS1374-BWLT1818IC REG LINEAR 1.8V/1.8V 6WLCSP |
4,643 | - |
|
Datasheet | - | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 1.8V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
|
AS1374-BWLT1218IC REG LINEAR 1.2V/1.8V 6WLCSP |
1,304 | - |
|
Datasheet | - | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 1.8V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
|
AS1374-BWLT1214IC REG LINEAR 1.2V/1.4V 6WLCSP |
3,591 | - |
|
Datasheet | - | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.2V, 1.4V | - | - | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|

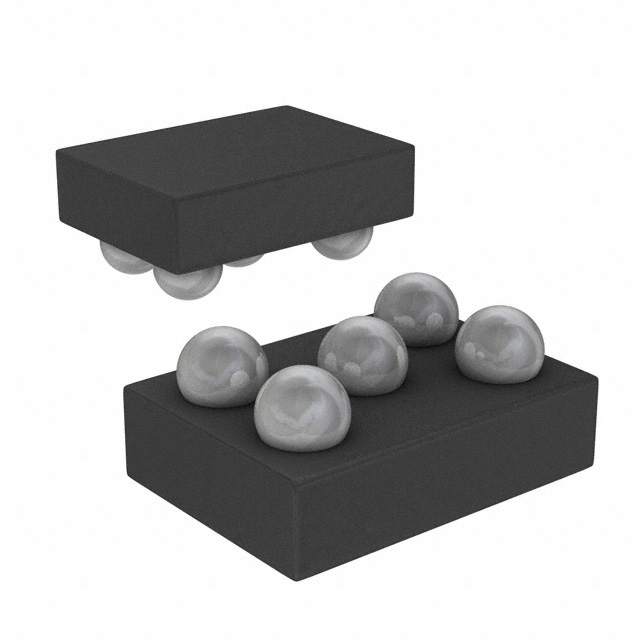

AS13985F-26-TIC REG LINEAR 2.6V 150MA 5WLCSP |
1,044 | - |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F27-TIC REG LINEAR 2.7V 150MA 5WLCSP |
1,445 | - |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F28-TIC REG LINEAR 2.8V 150MA 5WLCSP |
3,096 | - |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F33-TIC REG LINEAR 3.3V 150MA 5WLCSP |
2,145 | - |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F12-TIC REG LINEAR 1.2V 150MA 5WLCSP |
4,437 | - |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F18-TIC REG LINEAR 1.8V 150MA 5WLCSP |
2,750 | - |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
|
AS13985F29-TIC REG LINEAR 2.9V 150MA 5WLCSP |
3,440 | - |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
|
AS1360-40-TIC REG LINEAR 4V 200MA SOT23-3 |
3,950 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 4V | - | 0.7V @ 200mA | 200mA | 1.5 µA | 3 µA | - | - | Over Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
AS13985F30-TIC REG LINEAR 3V 150MA 5WLCSP |
4,432 | - |
|
Datasheet | - | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.1V @ 150mA | 150mA | 130 µA | 250 µA | 60dB ~ 55dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 5-WLCSP (1.34x0.97) |
,TO-226_bentlead.jpg "LP2950ACN-L-3-3/TR")
|
LP2950ACN-L-3-3/TRIC REG LINEAR 3.3V 100MA TO92-3 |
1,311 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 170 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
|
LP2950ACN-L-5-0/TRIC REG LINEAR 5V 100MA TO92-3 |
4,257 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 170 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
|
LP2950CN-L-3-3/TRIC REG LINEAR 3.3V 100MA TO92-3 |
4,352 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 170 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92-3 |
|
LP2951CS-L-3-3IC REG LINEAR 3.3V 100MA 8SOIC |
3,991 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 170 µA | 12 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
