Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

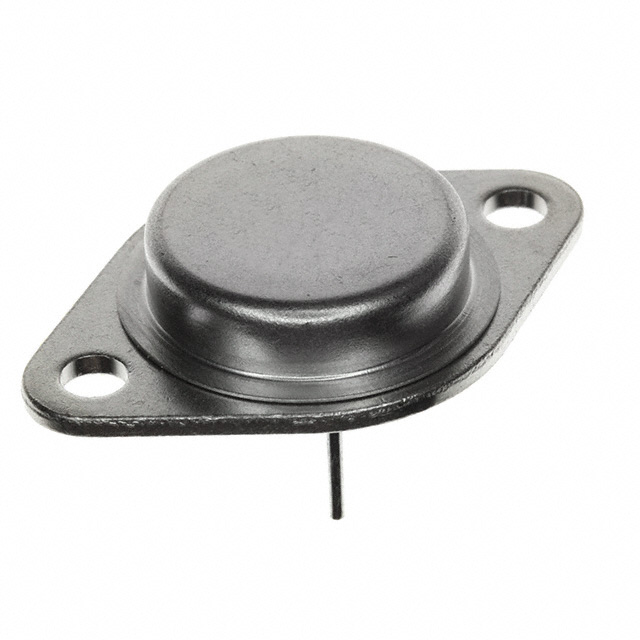

SG117K-883BIC REG LIN POS ADJ 1.5A TO204AD |
2,988 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 80dB (120Hz) | - | Over Current | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
|
SG117K-JANIC REG LIN POS ADJ 1.5A TO204AD |
2,043 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 1.5A | - | - | 80dB (120Hz) | - | Over Current | -55°C ~ 150°C | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|

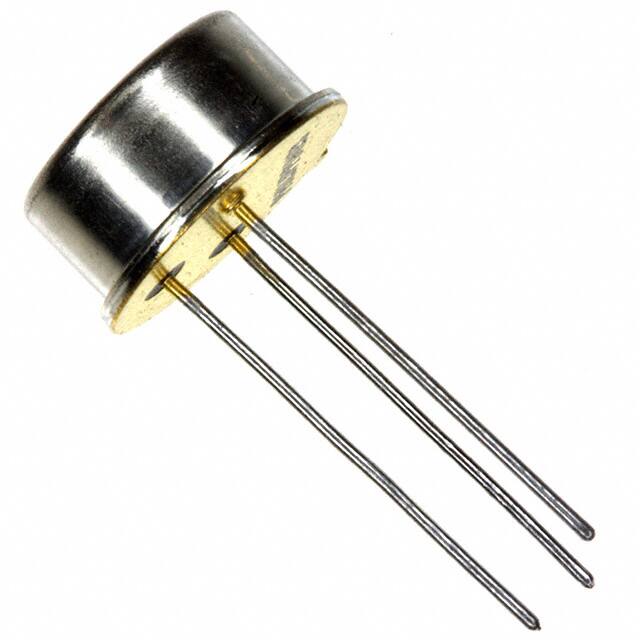

SG117T-883BIC REG LINEAR POS ADJ 500MA TO39 |
4,253 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 500mA | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG117T-DESCIC REG LINEAR POS ADJ 500MA TO39 |
2,134 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Positive | Adjustable | 1 | 37V | 1.25V | 37V | - | 500mA | - | - | 65dB ~ 80dB (120Hz) | - | Over Current | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG137AT-DESCIC REG LIN NEG ADJ 500MA TO39 |
4,913 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Negative | Adjustable | 1 | -36V | -1.25V | -36V | - | 500mA | - | - | 66dB ~ 80dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG137KIC REG LINEAR NEG ADJ 1.5A TO3 |
1,162 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Obsolete | Negative | Adjustable | 1 | -36V | -1.25V | -36V | - | 1.5A | - | - | 60dB ~ 77dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|
|
SG137K-883BIC REG LIN NEG ADJ 1.5A TO3 |
2,073 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Obsolete | Negative | Adjustable | 1 | -36V | -1.25V | -36V | - | 1.5A | - | - | 60dB ~ 77dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|
SG723T-JANIC REG LIN POS/NE ADJ 150MA TO39 |
1,878 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Positive or Negative | Adjustable | 1 | 40V | 37V | - | - | 150mA | - | - | 86dB ~ 74dB (50Hz ~ 10kHz) | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-39 |
|
|
SG7805AK-DESCIC REG LINEAR 5V 1.5A TO3 |
2,172 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 35V | 5V | - | 2.5V @ 1A | 1.5A | 7 mA | - | 68dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|
SG7805AT-DESCIC REG LINEAR 5V 500MA TO39 |
4,225 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Positive | Fixed | 1 | 35V | 5V | - | 2.5V @ 500mA | 500mA | 7 mA | - | 68dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7805K-JANIC REG LINEAR 5V 1.5A TO204AD |
1,613 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 35V | 5V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 68dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
|
SG7805T-JANIC REG LINEAR 5V 500MA TO39 |
2,388 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Positive | Fixed | 1 | 35V | 5V | - | 2.5V @ 500mA | 500mA | 7 mA | - | 68dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|

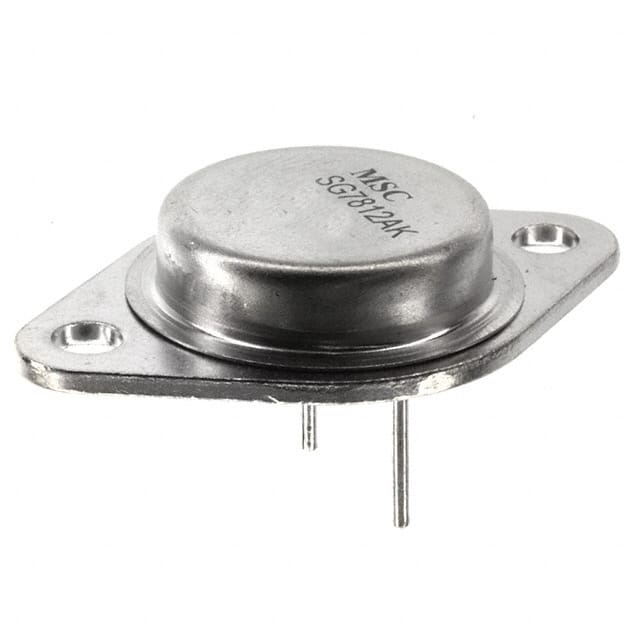

SG7812AK-DESCIC REG LINEAR 12V 1.5A TO204AD |
2,100 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 50V | 12V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 61dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
|
SG7812T-JANIC REG LINEAR 12V 500MA TO39 |
2,339 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Positive | Fixed | 1 | 35V | 12V | - | 2.5V @ 500mA | 500mA | 7 mA | - | 61dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|

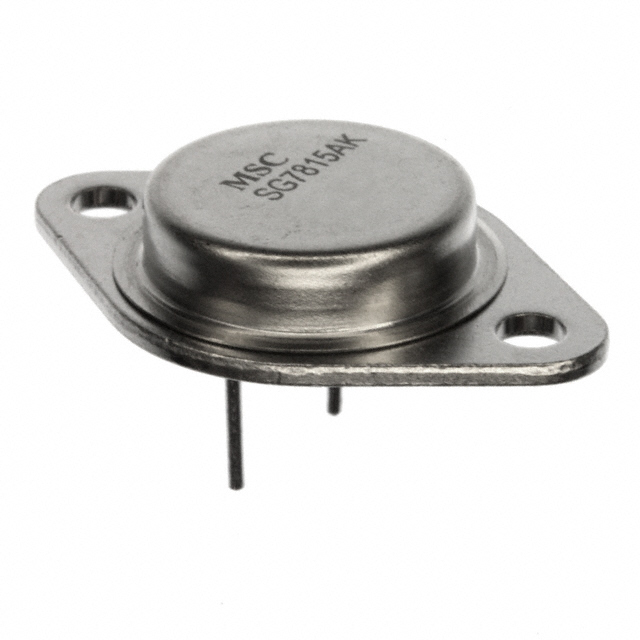

SG7815AK-DESCIC REG LINEAR 15V 1.5A TO3 |
4,394 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 35V | 15V | - | 2.5V @ 1A | 1.5A | 7 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|
SG7815AT-DESCIC REG LINEAR 15V 500MA TO39 |
1,955 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Positive | Fixed | 1 | 35V | 15V | - | 2.5V @ 500mA | 500mA | 7 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7815K-JANIC REG LINEAR 15V 1.5A TO3 |
3,593 | - |
|
Datasheet | - | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 35V | 15V | - | 2.5V @ 1A | 1.5A | 7 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|
|
SG7815T-JANIC REG LINEAR 15V 500MA TO39 |
3,102 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Positive | Fixed | 1 | 35V | 15V | - | 2.5V @ 500mA | 500mA | 7 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7905AT-DESCIC REG LINEAR -5V 500MA TO39 |
3,730 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 500mA | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7905T-JANIC REG LINEAR -5V 1.5A TO39 |
4,343 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tray | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 1.5A | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
