ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE4254GSXUMA2IC REG LINEAR POS ADJ 70MA 8DSO |
3,366 | - |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 45V | Tracking | - | 0.4V @ 70mA | 70mA | 80 µA | 15 mA | 60dB (100Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8 |
|
TLE4296GV30NTSA1IC REG LINEAR 3V 30MA SCT595-5 |
2,751 | - |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 45V | 3V | - | 0.3V @ 20mA | 30mA | 170 µA | 4.5 mA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4296GV50NTSA1IC REG LINEAR 5V 30MA SCT595-5 |
2,656 | - |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 45V | 5V | - | 0.3V @ 20mA | 30mA | 170 µA | 5.2 mA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
|
TLE4295GV33NTSA1IC REG LINEAR 3.3V 30MA SCT595-5 |
4,029 | - |
|
Datasheet | OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 3.3V | - | 0.4V @ 20mA | 30mA | 200 µA | 4 mA | 60dB (100Hz) | Power Fail | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
TLE4274DV50ITJKKNTMA1IC REG LINEAR 5V 400MA TO252-3 |
3,177 | - |
|
Datasheet | OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3 |
|
TLE42742DV50NTMA1IC REG LINEAR 5V 400MA |
2,800 | - |
|
Datasheet | OPTIREG™ | - | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | - | - |
|

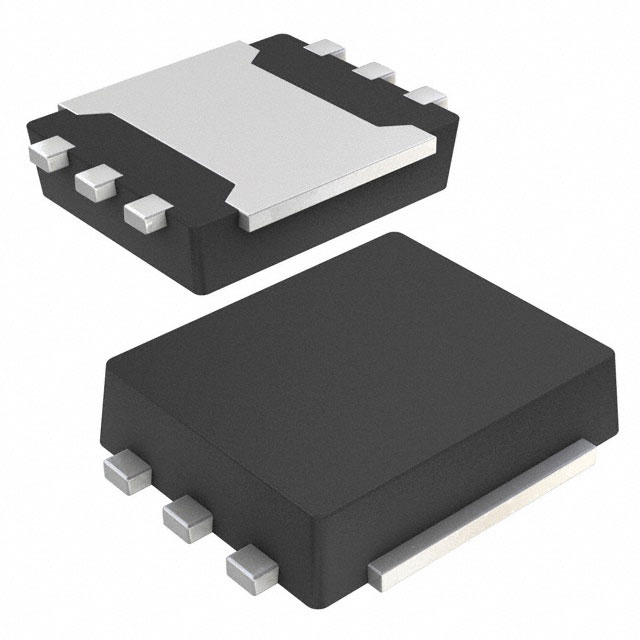

S-1135A11-A6T1UIC REG LINEAR 1.1V 300MA HSNT-6A |
3,467 | - |
|
Datasheet | S-1135 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.1V | - | - | 300mA | 1 µA | 65 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
S-1135A11-M5T1UIC REG LINEAR 1.1V 300MA SOT23-5 |
3,934 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.1V | - | - | 300mA | 1 µA | 65 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A13-M5T1UIC REG LINEAR 1.3V 300MA SOT23-5 |
4,273 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A25-M5T1UIC REG LINEAR 2.5V 300MA SOT23-5 |
4,563 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A29-A6T1UIC REG LINEAR 2.9V 300MA HSNT-6A |
4,996 | - |
|
Datasheet | S-1135 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
|
S-1135A29-M5T1UIC REG LINEAR 2.9V 300MA SOT23-5 |
2,290 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.9V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135A33-M5T1UIC REG LINEAR 3.3V 300MA SOT23-5 |
3,462 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135B12-M5T1UIC REG LINEAR 1.2V 300MA SOT23-5 |
1,441 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 300mA | 1 µA | 65 µA | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135B16-M5T1UIC REG LINEAR 1.6V 300MA SOT23-5 |
3,819 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.6V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135B25-A6T1UIC REG LINEAR 2.5V 300MA HSNT-6A |
1,775 | - |
|
Datasheet | S-1135 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
|
S-1135B33-U5T1UIC REG LINEAR 3.3V 300MA SOT89-5 |
4,415 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135C17-U5T1GIC REG LINEAR 1.7V 300MA SOT89-5 |
3,753 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.7V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135C22-M5T1UIC REG LINEAR 2.2V 300MA SOT23-5 |
4,520 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.2V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
S-1135C33-M5T1UIC REG LINEAR 3.3V 300MA SOT23-5 |
2,343 | - |
|
Datasheet | S-1135 | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 300mA | 1 µA | 65 µA | 65dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
