ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS7824CZ C0GIC REG LINEAR 24V 1A TO220 |
4,851 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 24V | - | 2V @ 1A (Typ) | 1A | 8 mA | 500 µA | 70dB (120Hz) | Current Limit | Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TS79M05CZ C0GIC REG LINEAR -5V 500MA TO220 |
3,171 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 2V @ 500mA (Typ) | 500mA | 8 mA | - | 66dB (120Hz) | Current Limit | Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220 |
|
TS2950CT33 B0GIC REG LINEAR 3.3V 150MA TO92-3 |
4,302 | - |
|
Datasheet | - | - | Box | Active | Positive | Fixed | 1 | 30V | - | 3.3V | 0.45V @ 100mA | 150mA | - | 12 mA | - | - | - | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TS2950CT50 B0GIC REG LINEAR 5V 150MA TO92-3 |
2,999 | - |
|
Datasheet | - | - | Box | Obsolete | Positive | Fixed | 1 | 30V | - | 5V | 0.45V @ 100mA | 150mA | - | 12 mA | - | - | - | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
TS78L03CT B0GIC REG LINEAR 3.3V 100MA TO92 |
1,088 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 2V @ 100mA (Typ) | 100mA | 6 mA | - | 49dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L05CT B0GIC REG LINEAR 5V 100MA TO92 |
3,443 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 49dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L09CT B0GIC REG LINEAR 9V 100MA TO92 |
4,952 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 35V | 9V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 57dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L12CT B0GIC REG LINEAR 12V 100MA TO92 |
1,430 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 1.7V @ 100mA (Typ) | 100mA | 6.5 mA | - | 42dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS78L15CT B0GIC REG LINEAR 15V 100MA TO92 |
3,297 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | 1.7V @ 100mA (Typ) | 100mA | 6.6 mA | - | 39dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
TS79L09CT B0GIC REG LINEAR 9V 100MA TO92 |
3,193 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Box | Obsolete | Negative | Fixed | 1 | 35V | 9V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 57dB (120Hz) | Current Limit | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-92 |
|
|
5962-9212604MPAIC REG LIN POS ADJ 250MA 8CERDIP |
1,077 | - |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Positive | Adjustable (Fixed) | 1 | 16.5V | 1.3V (5V) | 15V | 0.6V @ 250mA | 250mA | 25 µA | - | - | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
MAX16910DATA8/V+IC REG LIN POS ADJ 200MA 8TDFN |
2,807 | - |
|
Datasheet | - | 8-WDFN Exposed Pad | Strip | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-TDFN (3x3) |
|
TLE4262GMXUMA2IC REG LINEAR 5V 200MA DSO14 |
1,801 | - |
|
Datasheet | OPTIREG™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 150mA | 200mA | 50 µA | 23 mA | 54dB (100Hz) | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14 |
|
NCP140AMXC330TCGIC REG LINEAR 3.3V 150MA 4XDFN |
3,588 | - |
|
Datasheet | - | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.22V @ 150mA | 150mA | 75 µA | - | 62dB ~ 55dB (100Hz ~ 1kHz) | Enable | Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (0.8x0.8) |
|
NCV8161BSN180T1GIC REG LINEAR 1.8V 450MA 5TSOP |
3,535 | - |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.48V @ 450mA | 450mA | 23 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|

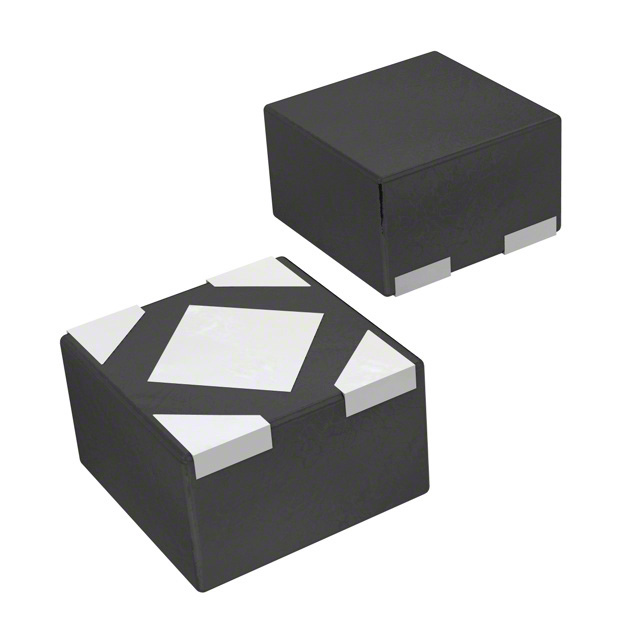

NCP103BMX180TCGIC REG LINEAR 1.8V 150MA 4UDFN |
1,913 | - |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 95 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|

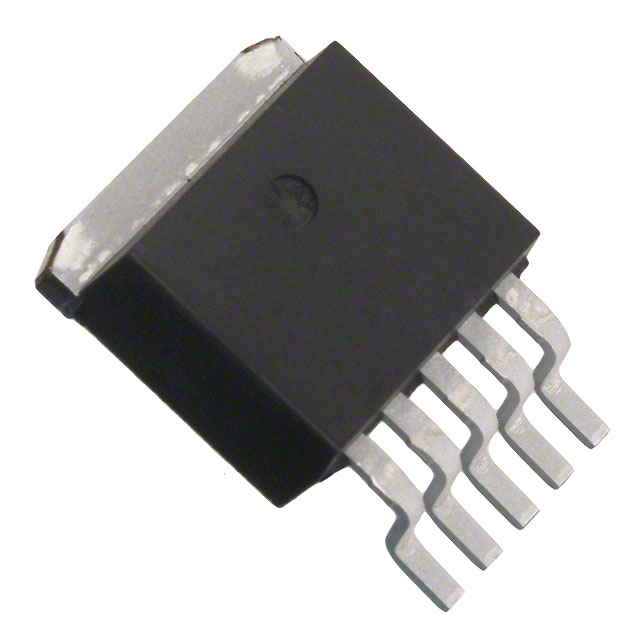

SPX29151ICF-3-3IC REG LINEAR 3.3V 1.5A TO263-5 |
1,960 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.6V @ 10.5A | 1.5A | - | 25 mA | - | Enable | Over Current, Reverse Polarity, Transient Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
|
SPX29152ICFIC REG LIN POS ADJ 1.5A TO263-5 |
3,063 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Adjustable | 1 | 16V | 1.25V | 15.4V | 0.6V @ 10.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
|
SPX29302ICFIC REG LINEAR POS ADJ 3A TO263-5 |
4,432 | - |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Adjustable | 1 | 16V | 1.25V | 16V | 0.8V @ 3A | 3A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
MAX8882EUTA5+IC REG LINEAR 1.8V/3.3V SOT23-6 |
3,975 | - |
|
Datasheet | - | SOT-23-6 | Strip | Active | Positive | Fixed | 2 | 6.5V | 1.8V, 3.3V | - | -, 0.144V @ 80mA | 160mA, 160mA | 265 µA | 170 µA | 62dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
