ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCR3DF335,LM(CTIC REG LINEAR 3.35V 300MA SMV |
2,970 | - |
|
Datasheet | TCR3DF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.35V | - | 0.25V @ 300mA | 300mA | - | - | 70dB (1kHz) | Enable | Inrush Current, Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
TCR3DF15,LM(CTIC REG LINEAR 1.5V 300MA SMV |
2,718 | - |
|
Datasheet | TCR3DF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.47V @ 300mA | 300mA | 65 µA | 78 µA | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|

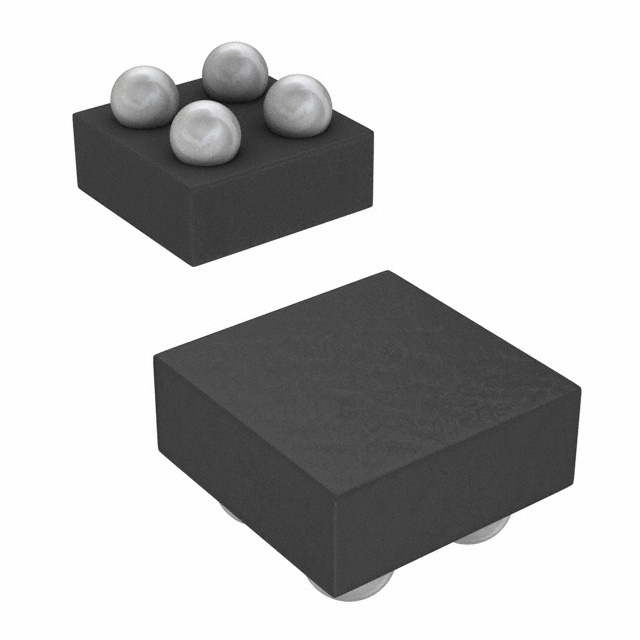

LP5907A28YKMRIC REG LINEAR 2.8V 250MA 4DSBGA |
2,530 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 4-DSBGA (0.65x0.65) |
|
TCR3DF25,LM(CTIC REG LINEAR 2.5V 300MA SOT25 |
2,488 | - |
|
Datasheet | TCR3DF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.31V @ 300mA | 300mA | 65 µA | 78 µA | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
LP5907YKGR-2.8IC REG LINEAR 2.8V 250MA 4DSBGA |
1,376 | - |
|
Datasheet | - | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DSBGA (0.65x0.65) |
|
TCR2EN33,LF(SELDO REG VOUT=3.3V IOUT=200MA |
20,951 | - |
|
Datasheet | - | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.18V @ 150mA | 200mA | 60 µA | - | - | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN30,LF(SELDO REG VOUT=3.0V IOUT=200MA |
19,866 | - |
|
Datasheet | - | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.18V @ 150mA | 200mA | 60 µA | - | - | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN29,LF(SELDO REG VOUT=2.9V IOUT=200MA |
9,953 | - |
|
Datasheet | - | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.21V @ 150mA | 200mA | 60 µA | - | - | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2LN115,LF(SELDO REG VOUT=1.15V I=200MA |
9,720 | - |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.15V | - | 1.28V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
TLV751180280PDSQRIC REG LIN 1.8/2.8V 500MA 10WSON |
8,891 | - |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 1.8V, 2.8V | - | 0.19V @ 500mA, 0.14V @ 500mA | 500mA, 500mA | 35 µA | - | 50dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-WSON (2x2) |
|
|
TCR2LN095,LF(SELDO REG VOUT=0.95V I=200MA |
8,827 | - |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.95V | - | 1.46V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
RP173K401D-TRIC REG LINEAR 4V 150MA DFN1010-4 |
7,500 | - |
|
Datasheet | RP173x | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 11V | 4V | - | 0.76V @ 150mA | 150mA | 3.7 µA | - | - | Enable | Over Current, Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN(PL)1010-4 |
|
TCR2EN28,LF(SELDO REG VOUT=2.8V IOUT=200MA |
7,320 | - |
|
Datasheet | - | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.21V @ 150mA | 200mA | 60 µA | - | - | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
R1100D101C-TR-FIC REG LINEAR 1V 35MA SON1408-3 |
7,152 | - |
|
Datasheet | R1100D | SOT-623F | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1V | - | 0.7V @ 35mA | 35mA | - | 3 µA | - | - | Over Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SON1408-3 |
|
|
TLV751120280PDSQRIC REG LIN 1.2/2.8V 500MA 10WSON |
2,635 | - |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 1.2V, 2.8V | - | 0.4V @ 500mA, 0.14V @ 500mA | 500mA, 500mA | 35 µA | - | 50dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-WSON (2x2) |
|
TCR2LN33,LF(SELDO REG VOUT=3.3V I=200MA |
2,634 | - |
|
Datasheet | TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.28V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
TCR2EN36,LFIC REG LINEAR 3.6V 200MA 4SDFN |
1,294 | - |
|
Datasheet | TCR2EN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.18V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
NCP115CMX120TCGIC REG LINEAR 1.2V 300MA 4XDFN |
10,957 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 300mA | 95 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|
|
NCP115AMX300TCGIC REG LINEAR 3V 300MA 4XDFN |
9,640 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | - | 300mA | 95 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|
|
NCP115AMX150TCGIC REG LINEAR 1.5V 300MA 4XDFN |
5,222 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 300mA | 95 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
