ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP7343DQ-28FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
3,000 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.8V | - | - | 300mA | 60 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | W-DFN2020-6 (Type A1) |
|
|
AP7343DQ-10FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
3,000 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1V | - | - | 300mA | 60 µA | - | - | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | W-DFN2020-6 (Type A1) |
|
|
AP7343DQ-18FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
3,000 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.8V | - | - | 300mA | 60 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | W-DFN2020-6 (Type A1) |
|
|
AP7343DQ-12FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
2,975 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.2V | - | - | 300mA | 60 µA | - | - | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | W-DFN2020-6 (Type A1) |
|
|
AP7343DQ-33FDZW-7LDO CMOS LOWCURR W-DFN2020-6 T&R |
2,940 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3.3V | - | - | 300mA | 60 µA | - | 75dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | W-DFN2020-6 (Type A1) |
|

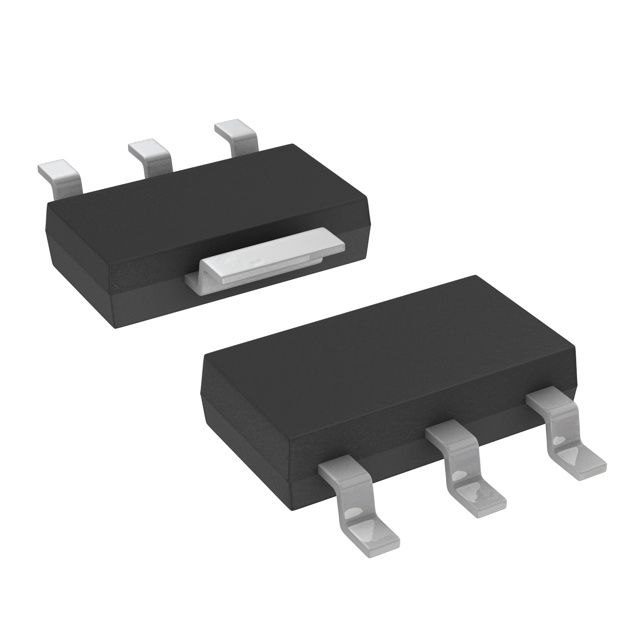

LM217MS-TRLINEAR IC'S |
2,474 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 500mA | 5 mA | - | 80dB ~ 65dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
AP7353D-30CV4-7IC REG LIN 3V 250MA X1WLB0707-4 |
2,000 | - |
|
Datasheet | - | 4-XFBGA, WLBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.147V @ 250mA | 250mA | 27 µA | - | 90dB ~ 70dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | X1-WLB0707-4 (Type A1) |
|
NCP163AMX130TBGIC REG LINEAR 1.3V 250MA 4XDFN |
1,099 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.3V | - | - | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-XDFN (1x1) |
|

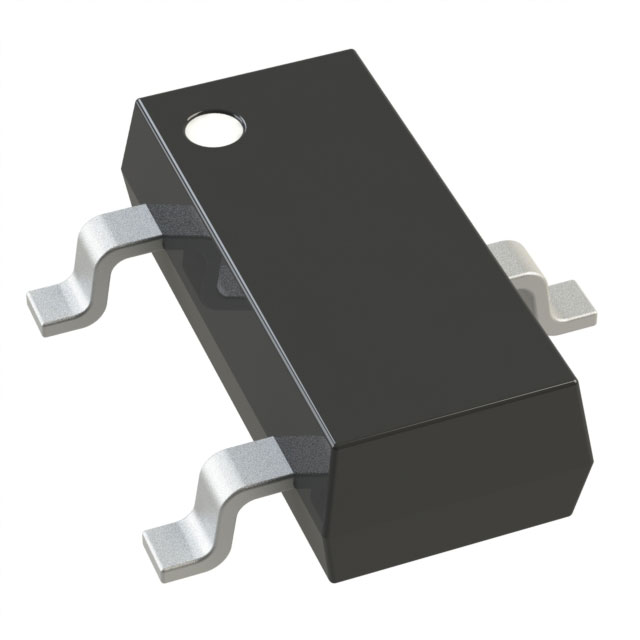

MCP1702T-5102E/CBIC REG LINEAR 13.2V 250MA |
5,960 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13.2V | 5.1V | - | - | 250mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23A-3 |
|
|
NCP163AMX1825TBGIC REG LINEAR 1.825V 250MA 4XDFN |
5,000 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.825V | - | - | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-XDFN (1x1) |
|

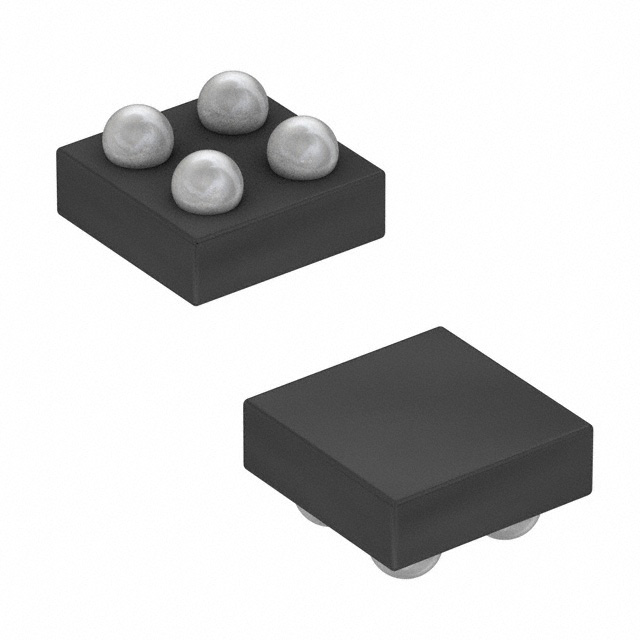

TCR3UG285A,LFIC REG LINEAR 2.85V 300MA 4WCSPF |
5,000 | - |
|
Datasheet | TCR3UG | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.327V @ 300mA | 300mA | 680 nA | - | 70dB (1kHz) | Enable | Inrush Current, Over Current, Thermal Shutdown | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-WCSPF (0.65x0.65) |
|
|
TCR3UG32A,LFIC REG LINEAR 3.2V 300MA 4WCSPF |
5,000 | - |
|
Datasheet | TCR3UG | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.2V | - | 0.273V @ 300mA | 300mA | 680 nA | - | 70dB (1kHz) | Enable | Inrush Current, Over Current, Thermal Shutdown | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-WCSPF (0.65x0.65) |
|
TLV70032QDDCRQ1IC REG LINEAR 3.2V 200MA SOT23-5 |
3,000 | - |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.2V | - | 0.25V @ 200mA | 200mA | 55 µA | 270 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-THIN |
|
TLV70213QDSERQ1IC REG LINEAR 1.3V 300MA 6WSON |
3,000 | - |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.3V | - | 0.375V @ 300mA | 300mA | 55 µA | 370 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (1.5x1.5) |
|
|
TLV70215QDSERQ1IC REG LINEAR 1.5V 300MA 6WSON |
3,000 | - |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.375V @ 300mA | 300mA | 55 µA | 370 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (1.5x1.5) |
|
|
TLV70227QDSERQ1IC REG LINEAR 2.7V 300MA 6WSON |
3,000 | - |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.375V @ 300mA | 300mA | 55 µA | 370 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (1.5x1.5) |
|
|
TLV70229QDSERQ1IC REG LINEAR 2.9V 300MA 6WSON |
3,000 | - |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.375V @ 300mA | 300mA | 55 µA | 370 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (1.5x1.5) |
|
|
TLV70231QDSERQ1IC REG LINEAR 3.1V 300MA 6WSON |
3,000 | - |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.1V | - | 0.375V @ 300mA | 300mA | 55 µA | 370 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (1.5x1.5) |
|
|
TLV70232QDSERQ1IC REG LINEAR 3.2V 300MA 6WSON |
3,000 | - |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.2V | - | 0.375V @ 300mA | 300mA | 55 µA | 370 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WSON (1.5x1.5) |
|
AP7335-30WG-7IC REG LINEAR 3V 300MA SOT25 |
2,999 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.2V @ 300mA | 300mA | 80 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
