ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCR4DG18,LFIC REG LINEAR 1.8V 420MA 4WCSPE |
4,643 | - |
|
Datasheet | TCR4DG | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.473V @ 420mA | 420mA | - | - | 70dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 4-WCSPE (0.65x0.65) |
|
NCV8135AMTW075TBG500 MA VERY LOW DROPOUT |
3,970 | - |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 0.75V | - | 0.1V @ 500mA | 500mA | 55 µA | - | - | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
AP7343-15W5-7IC REG LINEAR 1.5V 300MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.5V | - | 0.44V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343-30W5-7IC REG LINEAR 3V 300MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3V | - | 0.29V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343-31W5-7IC REG LINEAR 3.1V 300MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 3.1V | - | 0.29V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343D-105W5-7IC REG LINEAR 1.05V 300MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.05V | - | 0.7V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343D-11W5-7IC REG LINEAR 1.1V 300MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.1V | - | 0.7V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343D-12W5-7IC REG LINEAR 1.2V 300MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.2V | - | 0.58V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343D-285W5-7IC REG LINEAR 2.85V 300MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.85V | - | 0.3V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343D-28W5-7IC REG LINEAR 2.8V 300MA SOT25 |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.8V | - | 0.3V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
TPS715345DCKRM350-MA 24-V ULTRA-LOW-IQ LOW-DROP |
3,000 | - |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3.45V | - | 0.75V @ 50mA | 50mA | 4.8 µA | 5.8 µA | 60dB (100kHz) | - | Over Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-5 |
|
|
TPS71530DCKRM350-MA 24-V ULTRA-LOW-IQ LOW-DROP |
3,000 | - |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 3V | - | 0.75V @ 50mA | 50mA | 4.8 µA | 5.8 µA | 60dB (100kHz) | - | Over Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-5 |
|

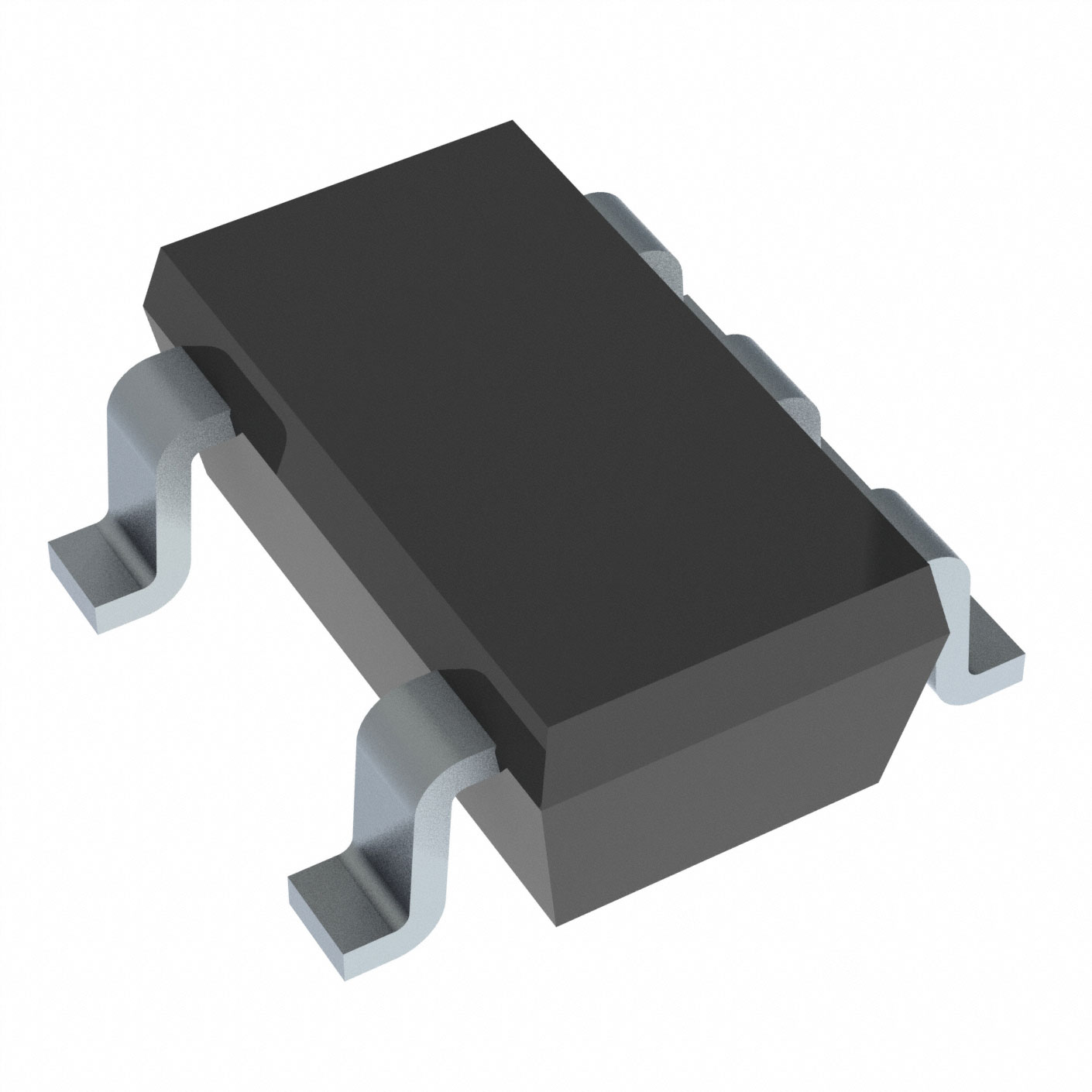

NJM2879F33H-TE1LDO WITH REVERSE CURRENT PROTECT |
3,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.37V @ 100mA | 200mA | 250 µA | - | 66dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
AP7343D-15W5-7IC REG LINEAR 1.5V 300MA SOT25 |
2,997 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.5V | - | 0.44V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
TPL720F18-3TRLOW QUIESCENT CURRENT LINEAR REG |
2,996 | - |
|
Datasheet | TPL720 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.35V @ 400mA | 400mA | - | - | 55dB ~ 53dB (100Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
AP7343-12W5-7IC REG LINEAR 1.2V 300MA SOT25 |
2,990 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.2V | - | 0.58V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343D-10W5-7IC REG LINEAR 1V 300MA SOT25 |
2,990 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1V | - | 0.7V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
AP7343-11W5-7IC REG LINEAR 1.1V 300MA SOT25 |
2,988 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.1V | - | 0.7V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-25 |
|
|
TPS71525DCKRM350-MA 24-V ULTRA-LOW-IQ LOW-DROP |
2,980 | - |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 2.5V | - | 0.75V @ 50mA | 50mA | 5.8 µA | 5.8 µA | 60dB (100kHz) | - | Over Current, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-5 |
|
|
TPS71523DCKRM350-MA 24-V ULTRA-LOW-IQ LOW-DROP |
2,962 | - |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 2.3V | - | 0.75V @ 50mA | 50mA | 4.8 µA | 5.8 µA | 60dB (100kHz) | - | Over Current | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-5 |
