ELECTRONIC COMPONENTS
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPL820F30-89TRLINEAR VOLTAGE REGULATOR IC FIXE |
4,000 | - |
|
Datasheet | TPL820 | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3V | - | 0.72V @ 180mA | 180mA | 5 µA | - | 75dB ~ 65dB (100Hz ~ 10kHz) | Current Limit | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|

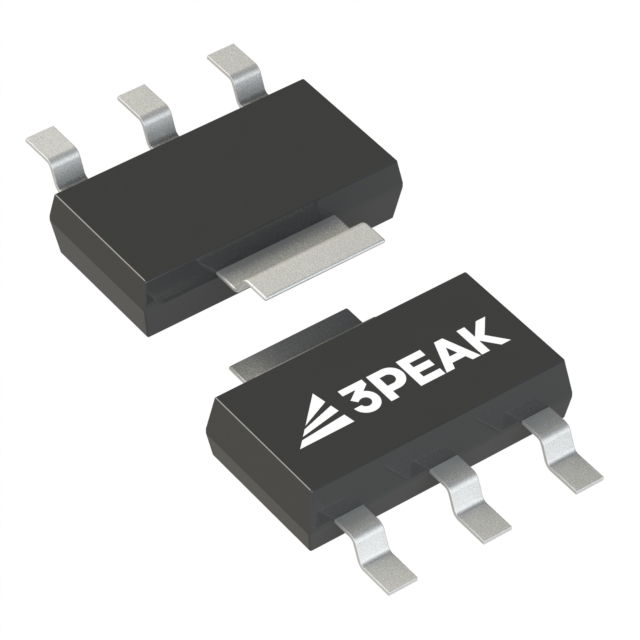

TPL820F33-ST4RLINEAR VOLTAGE REGULATOR IC FIXE |
3,982 | - |
|
Datasheet | TPL820 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.72V @ 180mA | 180mA | 5 µA | - | 75dB ~ 65dB (100Hz ~ 10kHz) | Current Limit | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
NCV8170AXV150T2GIC REG LIN 1.5V 150MA SOT563-6 |
3,935 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 150mA | 0.9 µA | - | 57dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-563 |
|
|
NCV8170BXV300T2GIC REG LINEAR 3V 150MA SOT563-6 |
3,840 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.26V @ 150mA | 150mA | 0.9 µA | - | 47dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-563 |
|
TPL820F50-5TRLINEAR VOLTAGE REGULATOR IC FIXE |
3,000 | - |
|
Datasheet | TPL820 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.72V @ 180mA | 180mA | 5 µA | - | 75dB ~ 65dB (100Hz ~ 10kHz) | Current Limit | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPL820F33-5TRLINEAR VOLTAGE REGULATOR IC FIXE |
2,997 | - |
|
Datasheet | TPL820 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.72V @ 180mA | 180mA | 5 µA | - | 75dB ~ 65dB (100Hz ~ 10kHz) | Current Limit | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
AP7387-36SA-7LDO CMOS LowCurr SOT23 T&R 3K |
2,879 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3.6V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
TPS74701DRCRM3TPS74701DRCRM3 |
2,541 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.12V @ 500mA | 500mA | 2 mA | - | 60dB ~ 30dB (1kHz ~ 300kHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-VSON (3x3) |
|
|
TPS74701QDRCRM3Q1TPS74701QDRCRM3Q1 |
2,500 | - |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 1.39V @ 500mA | 1.35A | 50 µA | 50 µA | 60dB ~ 30dB (1kHz ~ 300kHz) | Current Limit | Soft Start | -40°C ~ 150°C | - | - | Surface Mount | 10-VSON (3x3) |
|
|
AP7387-30SA-7LDO CMOS LowCurr SOT23 T&R 3K |
2,088 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
LP2982IM5X-3.3/NOPBIC REG LINEAR 3.3V 50MA SOT23-5 |
1,972 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.33V @ 80mA | 50mA | 95 µA | 1.4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
TPL820F33-3TRLINEAR VOLTAGE REGULATOR IC FIXE |
1,850 | - |
|
Datasheet | TPL820 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.72V @ 180mA | 180mA | 5 µA | - | 75dB ~ 65dB (100Hz ~ 10kHz) | Current Limit | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
NCP702SN30T1GIC REG LINEAR 3V 200MA 5TSOP |
3,000 | - |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | - | 200mA | 16 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
ST730M30RLINEAR IC'S |
2,000 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Active | Positive | Fixed | 1 | 28V | 3V | - | 1.2V @ 300mA | 300mA | 10 µA | 240 µA | 75dB ~ 35dB (100Hz ~ 1kHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
TLV70015DSETIC REG LINEAR 1.5V 200MA 6WSON |
646 | - |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.25V @ 200mA | 200mA | 55 µA | 270 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|

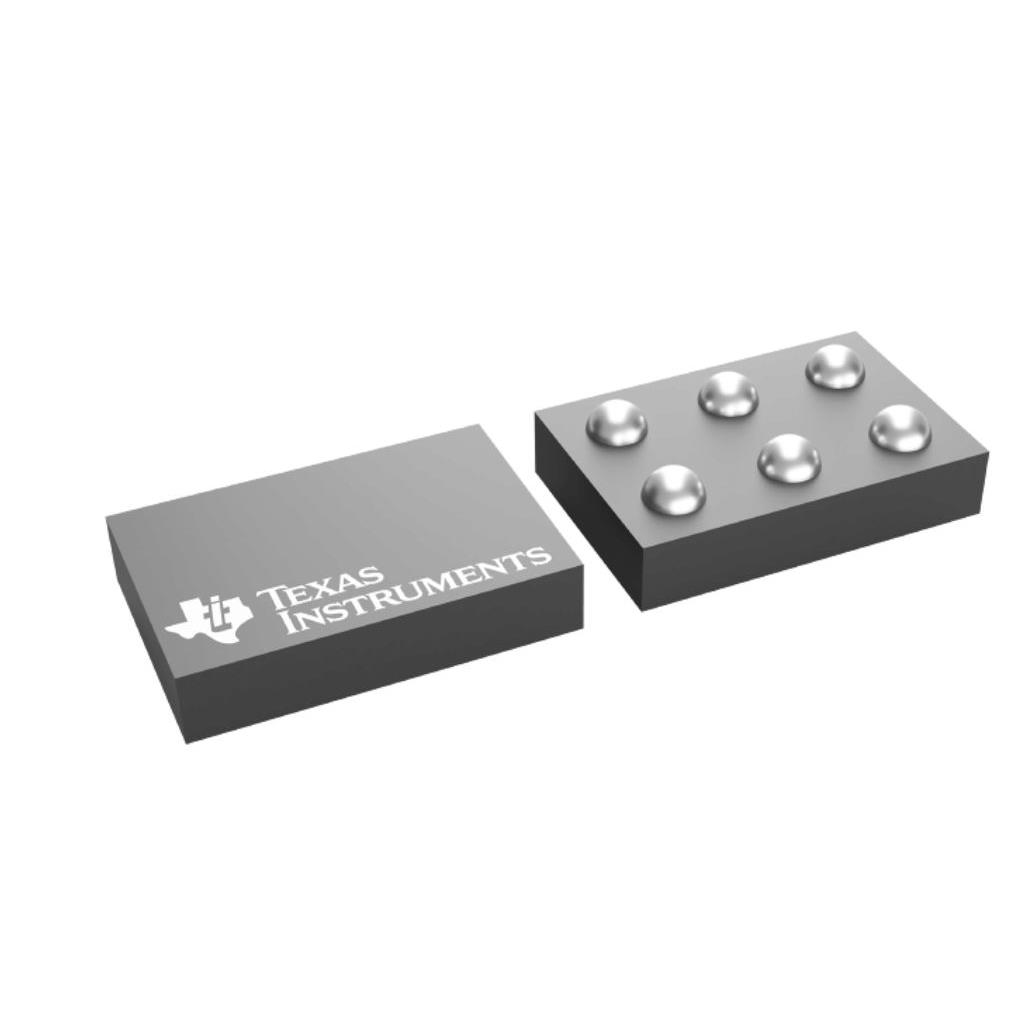

TPS7A1411PYBKRTPS7A1411PYBKR |
12,000 | - |
|
Datasheet | - | 6-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 2.2V | 0.5V | 2V | 0.07V @ 1A | 2.45A | - | - | 65dB ~ 25dB (1kHz ~ 1MHz) | Current Limit | Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-DSBGA (0.71x1.16) |
|
|
TPS7A1413PYBKR1-A, LOW INPUT AND OUTPUT VOLTAG |
11,888 | - |
|
Datasheet | - | 6-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.3V | - | 0.099V @ 1A | 1A | 5.7 µA | 620 µA | 90dB ~ 33dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DSBGA (0.71x1.16) |
|
|
TPS7A1412PYBKR1-A, LOW INPUT AND OUTPUT VOLTAG |
11,210 | - |
|
Datasheet | - | 6-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.2V | - | 0.099V @ 1A | 1A | 5.7 µA | 620 µA | 90dB ~ 33dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DSBGA (0.71x1.16) |
|
|
TPS7A1409PYBKR1-A, LOW INPUT AND OUTPUT VOLTAG |
10,254 | - |
|
Datasheet | - | 6-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 0.9V | - | 0.099V @ 1A | 1A | 5.7 µA | 620 µA | 90dB ~ 33dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DSBGA (0.71x1.16) |
|
NCV8170AMX360TCGIC REG LINEAR 3.6V 150MA 4XDFN |
5,000 | - |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.6V | - | 0.24V @ 150mA | 150mA | 0.9 µA | - | 30dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 4-XDFN (1x1) |
