Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3985ITLX-3.0/NOPBLP3985 MICROPOWER, 150MA LOW-NOI |
75,000 | - |
|
Datasheet | - | 5-WFBGA, DSBGA | Bulk | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.1V @ 150mA | 150mA | 150 µA | 250 µA | 50dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA (1.5x1.2) |
|
UM1560DB-288V Input Ultra Low Quiescent Cur |
49,371 | - |
|
Datasheet | UM1560 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 2.8V | - | 0.3V @ 200mA | 300mA | 3.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
|
UM1560DB-188V Input Ultra Low Quiescent Cur |
45,702 | - |
|
Datasheet | UM1560 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 1.8V | - | 0.3V @ 200mA | 300mA | 3.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
|
UM1560DB-338V Input Ultra Low Quiescent Cur |
13,072 | - |
|
Datasheet | UM1560 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 3.3V | - | 0.3V @ 200mA | 300mA | 3.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
KA7806ETUFIXED POSITIVE STANDARD REGULATO |
7,000 | - |
|
Datasheet | - | TO-220-3 | Bulk | Active | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 1A | 1A | 8 mA | - | 75dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
LP3985ITLX-3.3/NOPBLP3985 MICROPOWER, 150MA LOW-NOI |
6,000 | - |
|
Datasheet | - | 5-WFBGA, DSBGA | Bulk | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.1V @ 150mA | 150mA | 150 µA | 250 µA | 50dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 5-DSBGA (1.5x1.2) |
|

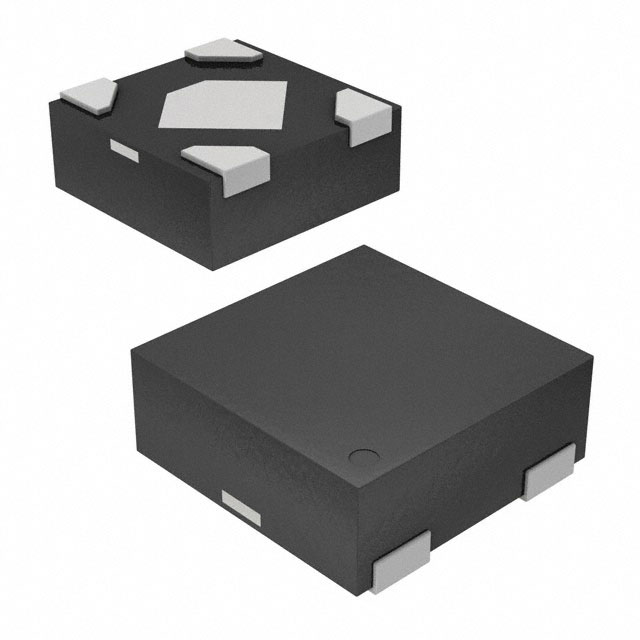

UM1530DB-335V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|

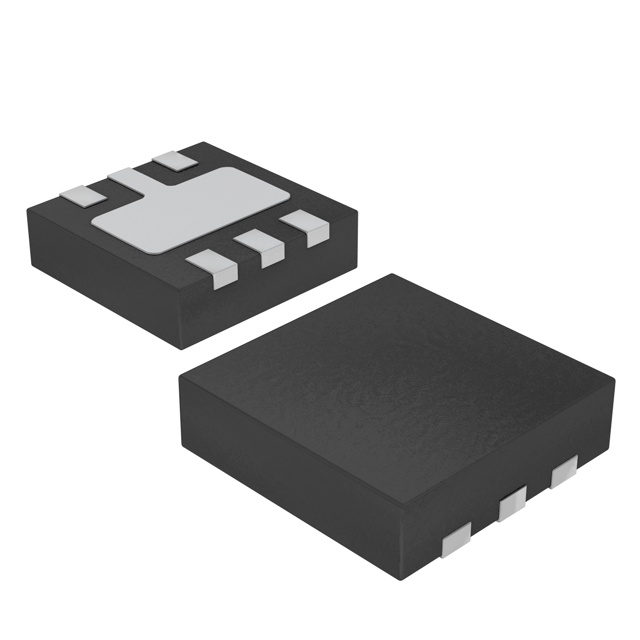

UM1530DA-285V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
UM1530DA-455V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 4.5V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
UM1560DA-288V Input Ultra Low Quiescent Cur |
3,000 | - |
|
Datasheet | UM1560 | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 2.8V | - | 0.3V @ 200mA | 300mA | 3.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
UM1530DA-425V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 4.2V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
UM1530DA-365V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.6V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
UM1530DA5V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | - | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
UM1530DB-285V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
|
UM1530DB-155V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
|
UM1530DB-275V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.7V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
|
UM1530DB-255V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
|
UM1530DA-305V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
UM1530DB-305V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
|
|
UM1530DB-135V Input, Low Quiescent Current |
3,000 | - |
|
Datasheet | UM1530 | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.3V | - | 0.33V @ 200mA | 300mA | 1.5 µA | - | 56dB ~ 42dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-DFN (1x1) |
