ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCDANN100MDSA5SENSOR 1.45PSID 0.19" 12BIT 8DIP |
4,374 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANN100PG2A3SENSOR 100PSIG 0.19" 12BIT 8DIP |
3,237 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

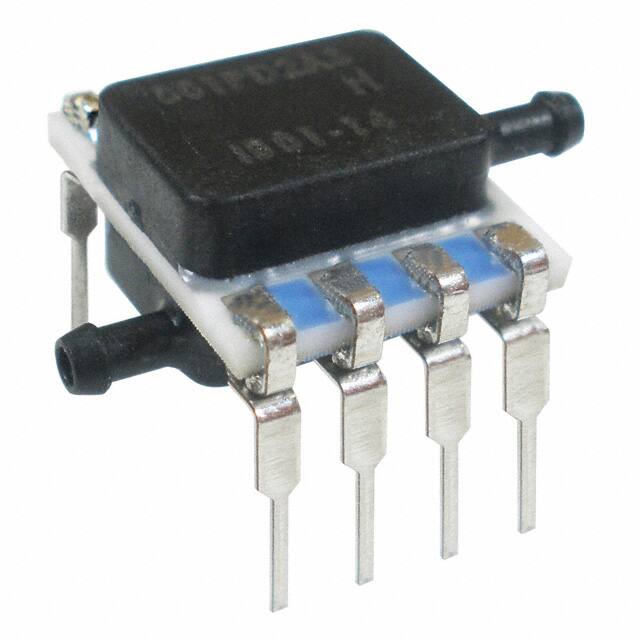

HSCDDRN001BDSA5SENSOR 14.5PSID 0.08" 12BIT 8DIP |
2,066 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | 14.5PSI (100kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDDRN250MDSA5SENSOR 3.63PSID 0.08" 12BIT 8DIP |
3,620 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±3.63PSI (±25kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDDRN400MDSA5SENSOR 5.8PSID 0.08" 12BIT 8DIP |
2,903 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±5.8PSI (±40kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±29.01PSI (±200kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDLNN001BDAA5SENSOR 14.5PSID 0.1" 4.5V 8DIP |
2,653 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Differential | ±14.5PSI (±100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±58.02PSI (±400kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDLNN2.5BGAA5SENSOR 36.26PSIG 0.1" 4.5V 8DIP |
3,558 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 36.26PSI (250kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRRN001PDAA3SENSOR 1PSID 0.08" 2.97V 8DIP |
4,830 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN010KDSA3SENSOR 1.45PSID 0.08" 12BIT 8DIP |
4,478 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN160MDAA3SENSOR 2.32PSID 0.08" 2.97V 8DIP |
2,901 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±2.32PSI (±16kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
