ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

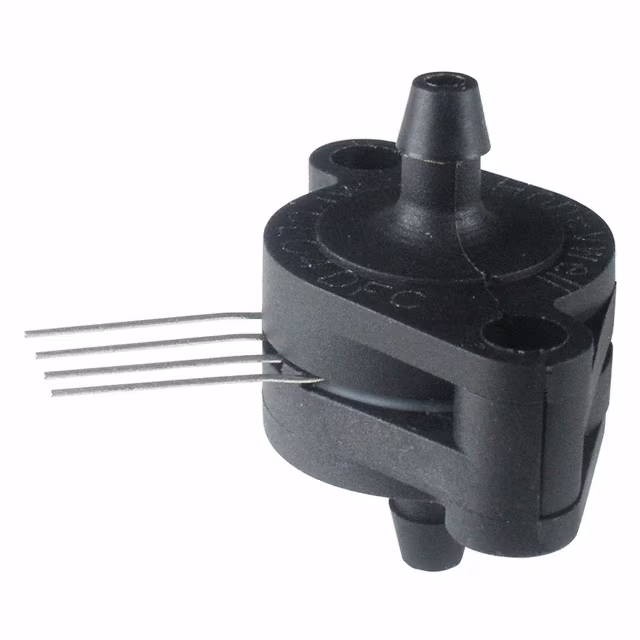

HSCSFFT005PDAA5SENSOR 5PSID 0.19" 4.5V 4SIP |
1,396 | - |
|
Datasheet | TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSHNT2.5BAAA5SENSOR 36.26PSIA 0.19" 4.5V 4SIP |
4,749 | - |
|
Datasheet | TruStability® HSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 36.26PSI (250kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 87.02PSI (600kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSANN100PGAA5SENSOR 100PSIG 0.19" 4.5V 4SIP |
2,560 | - |
|
Datasheet | TruStability® HSC | 4-SIP, Side Port | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCDANT005PG2A5SENSOR 5PSIG 0.19" 12BIT 8DIP |
1,555 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Discontinued at Digi-Key | Board Mount | Vented Gauge | 5PSI (34.47kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANT001PDSA5SENSOR 1PSID 0.19" 12BIT 8DIP |
3,093 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Discontinued at Digi-Key | Board Mount | Differential | ±1PSI (±6.89kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANT030PA2A3SENSOR 30PSIA 0.19" 12BIT 8DIP |
1,801 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDANT030PAAA3SENSOR 30PSIA 0.19" 2.97V 8DIP |
2,725 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCDRRT100PGAA5SENSOR 100PSIG 0.08" 4.5V 8DIP |
3,225 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NSCSHHN150PDUNVSENSOR 150PSID 0.16" .2585V 4SIP |
2,951 | - |
|
Datasheet | TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±150PSI (±1034.21kPa) | Wheatstone Bridge | 0 mV ~ 258.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | ±250PSI (±1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSHHN015PDUNVSENSOR 15PSID 0.16" .155V 4SIP |
4,080 | - |
|
Datasheet | TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 155 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
