ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSCMRRN004MDAA3SENSOR 0.06PSID 0.08" 2.97V 8SMT |
4,269 | - |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.06PSI (±0.4kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±9.79PSI (±67.5kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
NSCSDRN2.5MDUNVTRUSTABILITY PRESSURE SENSOR |
4,701 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
24PCDFM1GSENSOR 30PSIC 1/4" .33V |
1,420 | - |
|
Datasheet | 24PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 330 mV (10V) | ±1% | 10V ~ 12V | Male - 1/4" (6.35mm) UNF | Threaded | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
TSCSGNN030PGUCVSENSOR 30PSIG 0.19" .02625V 4SIP |
4,131 | - |
|
Datasheet | TruStability® TSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.78mm) Tube | Barbed | Temperature Compensated | PC Pin | 115PSI (792.9kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSHHN001PDUCVSENSOR 1PSID 0.16" .015V 4SIP |
1,220 | - |
|
Datasheet | TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 15 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±12.5PSI (±86.18kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSHHN060PDUCVSENSOR 60PSID 0.16" .06V 4SIP |
4,709 | - |
|
Datasheet | TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±60PSI (±413.69kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±145PSI (±999.74kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSHNN015PGUCVSENSOR 15PSIG 0.19" .02625V 4SIP |
2,887 | - |
|
Datasheet | TruStability® TSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.78mm) Tube | Barbed | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCDRRD001NDAA5SENSOR 0.04PSID 0.08" 4.5V 8DIP |
3,307 | - |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

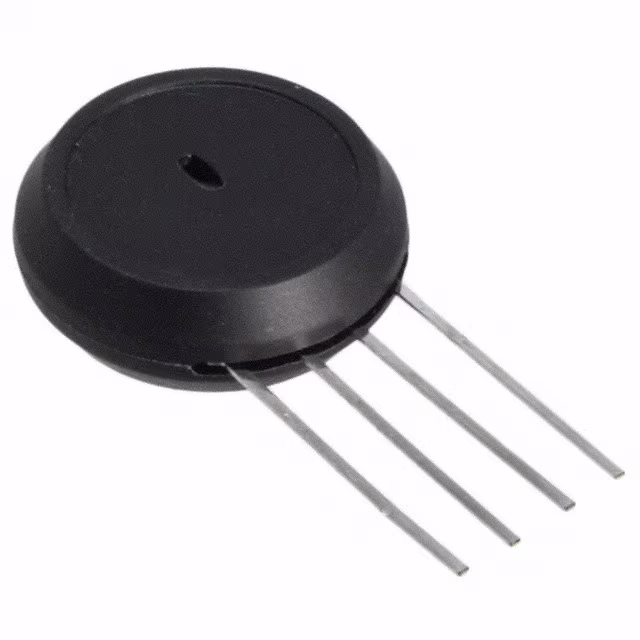

HSCSMND060PDAA5SENSOR 60PSID 4.5V 4SIP |
2,873 | - |
|
Datasheet | TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | ±60PSI (±413.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | ±250PSI (±1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSSND150PG2A3SENSOR 150PSIG 12BIT 4SIP |
3,443 | - |
|
Datasheet | TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
