ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SX7001DSENSOR 1PSID .02V |
3,817 | - |
|
Datasheet | SX7 | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (5V) | ±0.5% | 12V | - | No Port | - | - | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SX150ANSENSOR 150PSIA 0.19" .11V |
1,584 | - |
|
Datasheet | - | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | - | - | 200PSI (1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SX15ANSENSOR 15PSIA 0.19" .11V |
3,471 | - |
|
Datasheet | - | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | - | - | 45PSI (310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SX100ANSENSOR 100PSIA 0.19" .15V |
3,602 | - |
|
Datasheet | - | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | - | - | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCMLNN016MDAA3SENSOR 0.23PSID 0.1" 2.97V 8SMT |
1,136 | - |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Differential | ±0.23PSI (±1.6kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±10.88PSI (±75kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCMRRN010ND7A3SENSOR 0.36PSID 0.08" 12BIT 8SMT |
1,122 | - |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.36PSI (±2.49kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±12.65PSI (±87.21kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|

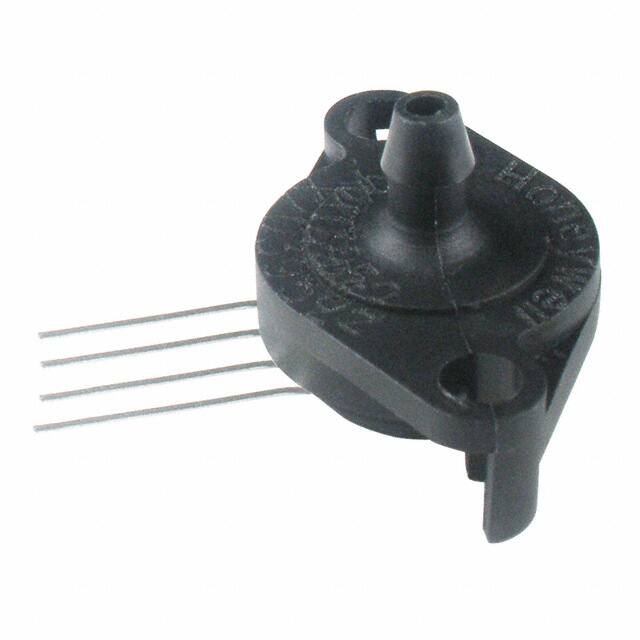

SSCSFNN001PGAA5SENSOR 1PSIG 0.19" 4.5V 4SIP |
3,468 | - |
|
Datasheet | TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSHNN015PA2A3SENSOR 15PSIA 0.19" 12BIT 4SIP |
1,898 | - |
|
Datasheet | TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

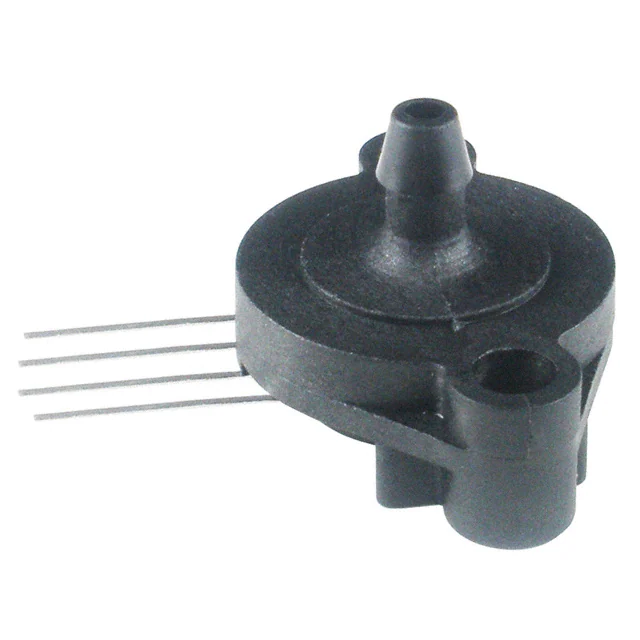

SSCSGNN030PAAA5SENSOR 30PSIA 0.19" 4.5V 4SIP |
2,084 | - |
|
Datasheet | TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSGNN150PAAA5SENSOR 150PSIA 0.19" 4.5V 4SIP |
3,730 | - |
|
Datasheet | TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
