ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19C100PA8KSENSOR 100PSIA 0.1V |
3,681 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C200PA8KSENSOR 200PSIA 0.1V |
4,510 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C010PG2LSENSOR 10PSIG 0.1V |
3,798 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Vented Gauge | 10PSI (68.95kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
13C5000PA1KSENSOR 5000PSIA .152V |
4,460 | - |
|
Datasheet | 13 mm | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 5000PSI (34473.79kPa) | Wheatstone Bridge | 148 mV ~ 152 mV | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 10000PSI (68947.57kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C005PG3LSENSOR 5PSIG 0.1V |
1,909 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C200PA7KSENSOR 200PSIA 1/4" 0.1V |
3,165 | - |
|
Datasheet | 19 mm | Cylinder, Threaded | Bulk | Obsolete | - | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/4" (6.35mm) BSPP | Threaded | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
1865-02G-KDNSENSOR 10PSIG 7.5V |
2,726 | - |
|
Datasheet | 1865 | 8-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 10PSI (68.95kPa) | Wheatstone Bridge | 0 V ~ 7.5 V | ±0.25% | 15V | - | No Port | Temperature Compensated | - | 30PSI (206.84kPa) | -28°C ~ 54°C | - | - | Through Hole | - |
|
|
19C050PA1LSENSOR 50PSIA 0.1V |
3,616 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Obsolete | - | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|

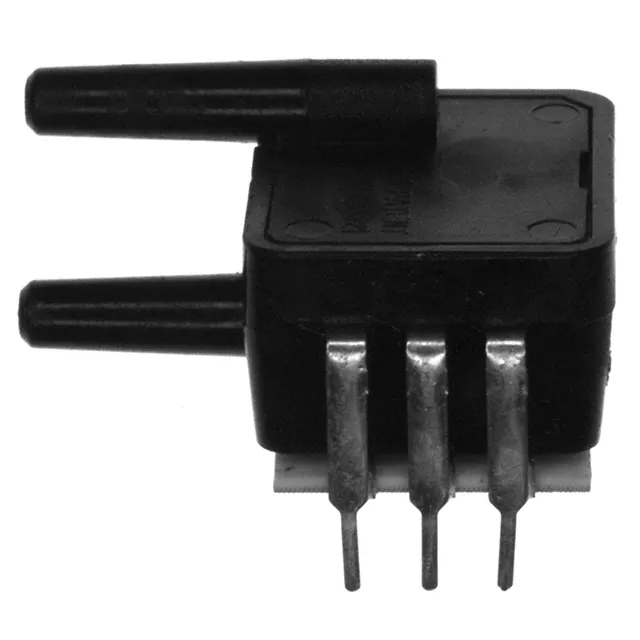

SDX30D4SENSOR 30PSID 0.09" .09V |
4,901 | - |
|
Datasheet | SDX | 6-DIP Module | Bulk | Active | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 20V | Male - 0.09" (2.28mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
19C200PG1KSENSOR 200PSIG 0.1V |
4,659 | - |
|
Datasheet | 19 mm | Cylinder | Bulk | Active | - | Vented Gauge | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
