ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSCSAAN005PDUCVSENSOR 5PSID 0.19" .05V 4SIP |
4,128 | - |
|
Datasheet | TruStability® TSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSAAN015PDUCVSENSOR 15PSID 0.19" .0525V 4SIP |
4,062 | - |
|
Datasheet | TruStability® TSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 52.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSANN060PGUCVSENSOR 60PSIG 0.19" .03V 4SIP |
2,928 | - |
|
Datasheet | TruStability® TSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 60PSI (413.69kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 145PSI (999.74kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSJJN010KDUCVSENSOR 1.45PSID 0.09" .022V 4SIP |
1,456 | - |
|
Datasheet | TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | Wheatstone Bridge | 0 mV ~ 22 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.09" (2.34mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±12.62PSI (±87kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSNNN150PGUCVSENSOR 150PSIG .04575V 4SIP |
1,494 | - |
|
Datasheet | TruStability® TSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | - | No Port | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
TSCDANN150PGUCVSENSOR 150PSIG 0.19" .04575V DIP |
1,042 | - |
|
Datasheet | TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Tray | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
TSCDRRN001PGUCVSENSOR 1PSIG 0.08" .0075V 8DIP |
1,896 | - |
|
Datasheet | TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tray | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 12.7PSI (87.56kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
TSCDANN100PGUCVSENSOR 100PSIG 0.19" .0305V 8DIP |
1,355 | - |
|
Datasheet | TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 30.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCMLND160MG7A3TSENSOR 2.32PSIG 0.1" 12BIT 8SMT |
3,610 | - |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 2.32PSI (16kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|

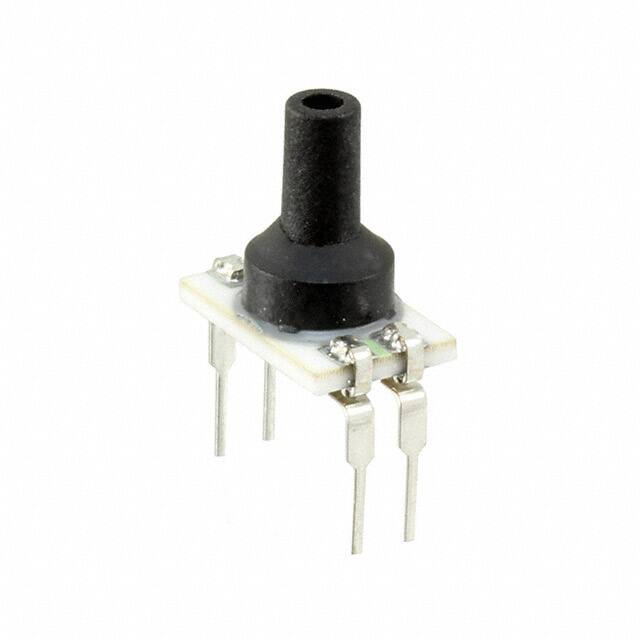

TBPDLNN015PGUCVSENSOR 15PSIG 0.13" .0275V 4DIP |
2,796 | - |
|
Datasheet | TBP | 4-DIP (0.453", 11.50mm), Top Port | Tray | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
