ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

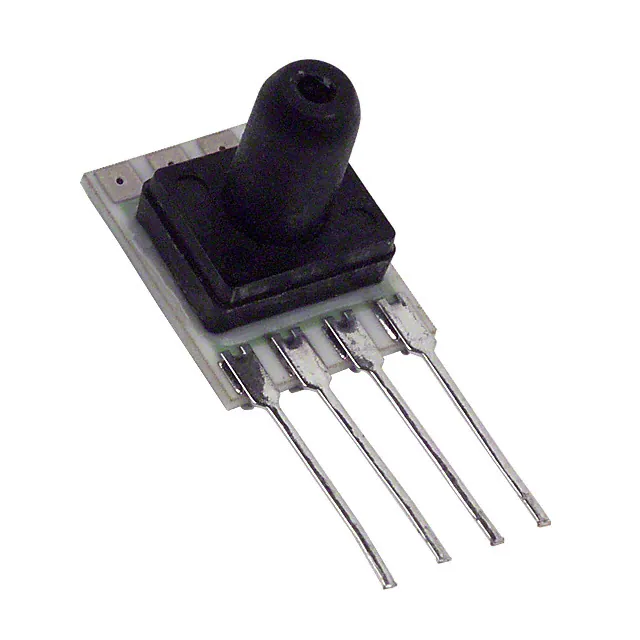

10 INCH-GF-CGRADE-MINISENSOR 0.36PSI 0.18" .02V |
1,130 | - |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

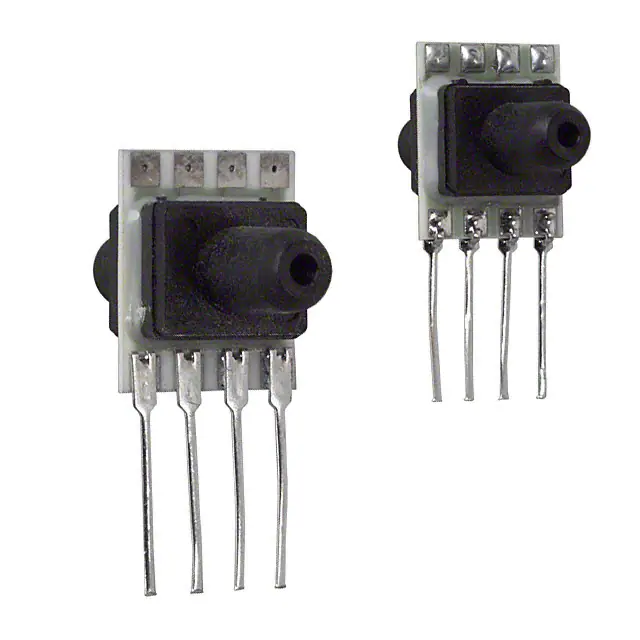

4 INCH-D-CGRADE-MINISENSOR 0.15PSID 0.18" .025V |
1,032 | - |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±1% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
DLVR-L10D-E1NS-C-NI3FSENSOR 0.36PSID 0.08" 14BIT 4SIP |
3,758 | - |
|
Datasheet | DLVR | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | I2C | 14 b | ±0.75% | 3.3V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
5 PSI-GF-HGRADE-MINISENSOR 5PSIG 0.18" .06V |
3,357 | - |
|
Datasheet | ACPC | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
DLH-L30D-E1BD-C-NAV8SENSOR 1.08PSID 0.09" 16BIT 8DIP |
4,733 | - |
|
Datasheet | DLH | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | I2C, SPI | 16b | ±1.5% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
DLHR-L01D-E1BD-C-NAV8SENSOR 0.04PSID 0.09" 18BIT 8DIP |
3,794 | - |
|
Datasheet | DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.04PSI (±0.25kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.61PSI (24.92kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLHR-L30D-E1BD-C-NAV8SENSOR 1.08PSID 0.09" 18BIT 8DIP |
4,742 | - |
|
Datasheet | DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
DLLR-L10D-E1BD-C-NAV8SENSOR 0.36PSID 0.09" 18BIT 8DIP |
1,879 | - |
|
Datasheet | DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential | ±0.36PSI (±2.49kPa) | I2C, SPI | 18b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
0.3 PSI-GF-HGRADE-MINISENSOR 0.3PSIG 0.18" .02V |
1,246 | - |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
BARO-A-4V-MINI-PRIMESENSOR 15.95PSIA 0.08" 4.25V |
2,099 | - |
|
Datasheet | - | 4-SIP Module | Tube | Active | Board Mount | Absolute | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±2% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
