ELECTRONIC COMPONENTS
Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4 INCH-D-HGRADE-MINISENSOR 0.15PSID 0.18" .025V |
2,485 | - |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
4 INCH-G-HGRADE-MINISENSOR 0.15PSIG .025V |
4,017 | - |
|
Datasheet | ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±0.5% | 16V | - | No Port | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

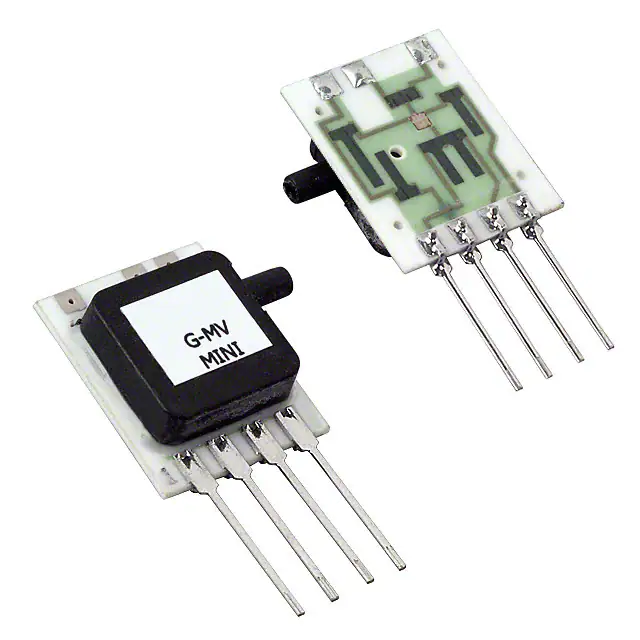

10 INCH-G-MV-MINISENSOR 0.36PSIG 0.08" .02V |
1,882 | - |
|
Datasheet | MDCX | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
20 INCH-G-MV-MINISENSOR 0.72PSIG 0.08" .02V |
4,321 | - |
|
Datasheet | MDCX | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
20 INCH-D1-MV-MINISENSOR 0.72PSID 0.08" .02V |
2,960 | - |
|
Datasheet | MDCX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
30 INCH-G-MV-MINISENSOR 1.08PSIG 0.08" .02V |
4,839 | - |
|
Datasheet | MDCX | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
5 INCH-G-MV-MINISENSOR 0.18PSIG 0.08" .02V |
4,150 | - |
|
Datasheet | MDCX | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
2 INCH-G-MV-MINISENSOR 0.07PSIG 0.08" .01V |
2,591 | - |
|
Datasheet | MDCX | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 0.07PSI (0.5kPa) | Wheatstone Bridge | 0 mV ~ 10 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|

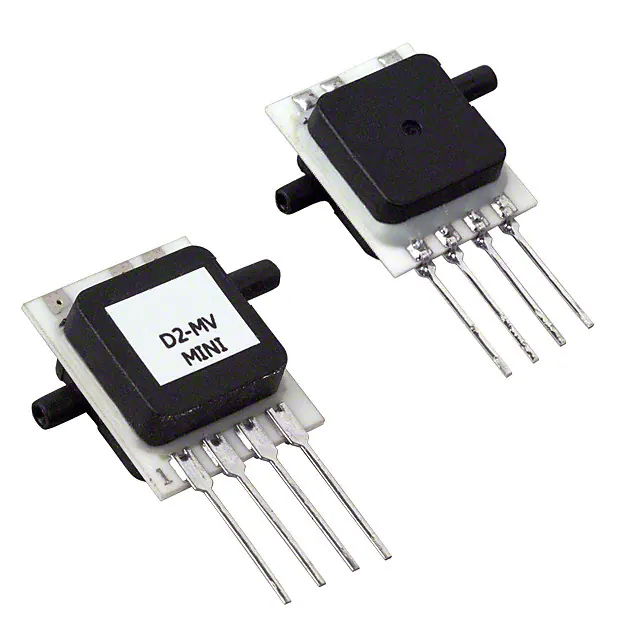

5 INCH-D2-MV-MINISENSOR 0.18PSID 0.08" .02V |
4,765 | - |
|
Datasheet | MDCX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
10 INCH-D2-MV-MINISENSOR 0.36PSID 0.08" .02V |
4,301 | - |
|
Datasheet | MDCX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
